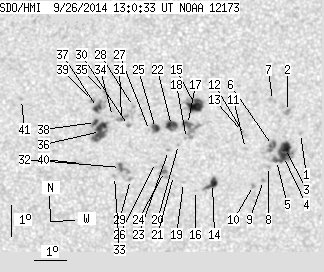

SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.99 | 191.54 | 42.15 | 103.60 | -16.00 | 248.89 | 5.31 | 192.74 | 0.4017 | 1.6 | -186.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.82 | -15.95 | 252.57 | 8.99 | 201.23 | 0.4168 | 769.0 | 565.6 | |
| 0.00 | 3.00 | 0.00 | 1.62 | -15.22 | 252.13 | 8.55 | 200.92 | 0.4036 | 1030.0 | 831.8 | |
| 9.19 | 27.56 | 5.01 | 15.06 | -16.43 | 252.12 | 8.54 | 199.84 | 0.4214 | 1105.2 | 608.7 | |
| 7.24 | -3.00 | 3.96 | -3.00 | -16.69 | 252.07 | 8.49 | 199.51 | 0.4251 | 845.8 | 999999 | |
| 2.47 | -3.00 | 1.35 | -3.00 | -16.82 | 251.85 | 8.27 | 198.95 | 0.4258 | 764.8 | 999999 | |
| 2.56 | 7.24 | 1.40 | 3.95 | -16.32 | 251.70 | 8.12 | 199.03 | 0.4177 | 1099.4 | 890.6 | |
| 0.00 | 3.00 | 0.00 | 1.62 | -14.86 | 251.65 | 8.07 | 200.15 | 0.3953 | 604.0 | 600.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -17.01 | 251.60 | 8.02 | 198.28 | 0.4275 | 777.0 | 653.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -17.47 | 251.46 | 7.88 | 197.64 | 0.4337 | 811.0 | 675.6 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -17.63 | 251.15 | 7.57 | 196.87 | 0.4346 | 755.0 | 628.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -16.40 | 250.85 | 7.27 | 197.10 | 0.4147 | 811.0 | 683.9 | |
| 0.00 | 1.85 | 0.00 | 1.01 | -15.95 | 250.80 | 7.22 | 197.33 | 0.4075 | 742.0 | 691.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -15.85 | 250.74 | 7.16 | 197.26 | 0.4057 | 870.0 | 740.5 | |
| 6.36 | 9.72 | 3.48 | 5.32 | -17.54 | 249.85 | 6.27 | 194.14 | 0.4278 | 892.3 | 584.0 | |
| 12.90 | 19.17 | 6.92 | 10.28 | -14.98 | 249.24 | 5.66 | 194.35 | 0.3858 | 1040.2 | 599.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -17.76 | 249.32 | 5.74 | 192.86 | 0.4293 | 449.0 | 398.2 | |
| 3.53 | 16.16 | 1.90 | 8.72 | -15.59 | 249.00 | 5.42 | 193.40 | 0.3945 | -853.6 | -637.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.05 | 248.98 | 5.40 | 193.08 | 0.4015 | -544.0 | -399.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -17.49 | 248.93 | 5.35 | 192.16 | 0.4238 | -592.0 | -484.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.24 | 248.74 | 5.16 | 192.40 | 0.4037 | -622.0 | -491.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -17.26 | 248.60 | 5.02 | 191.56 | 0.4191 | -223.0 | -196.9 | |
| 6.71 | 10.42 | 3.61 | 5.61 | -15.62 | 248.50 | 4.92 | 192.19 | 0.3931 | -972.7 | -622.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -16.43 | 248.43 | 4.85 | 191.57 | 0.4057 | -793.0 | -593.5 | |
| 1.15 | 8.30 | 0.62 | 4.52 | -17.12 | 248.32 | 4.74 | 190.98 | 0.4161 | -930.4 | -686.2 | |
| 3.89 | 6.18 | 2.09 | 3.33 | -15.71 | 248.00 | 4.42 | 190.94 | 0.3930 | -932.6 | -644.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.82 | 248.03 | 4.45 | 190.46 | 0.4106 | 491.0 | 389.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.77 | 247.82 | 4.24 | 190.45 | 0.3934 | -407.0 | -305.2 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -14.99 | 247.30 | 3.72 | 189.55 | 0.3795 | -1018.0 | -818.9 | |
| 0.00 | 2.12 | 0.00 | 1.15 | -17.37 | 247.25 | 3.67 | 188.46 | 0.4172 | -735.0 | -598.4 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -15.60 | 247.16 | 3.58 | 188.92 | 0.3889 | -784.0 | -649.6 | |
| 0.53 | 5.21 | 0.28 | 2.79 | -15.41 | 246.93 | 3.35 | 188.45 | 0.3852 | -804.8 | -692.7 | |
| 1.94 | 7.15 | 1.05 | 3.88 | -16.98 | 246.93 | 3.35 | 187.86 | 0.4102 | -1046.7 | -763.5 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -17.27 | 246.74 | 3.16 | 187.34 | 0.4145 | -585.0 | -511.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.31 | 246.65 | 3.07 | 187.79 | 0.3830 | -933.0 | -769.9 | |
| 0.00 | 3.36 | 0.00 | 1.79 | -14.56 | 246.42 | 2.84 | 187.48 | 0.3705 | -778.0 | -654.7 | |
| 13.69 | 25.17 | 7.36 | 13.53 | -15.79 | 246.28 | 2.70 | 186.71 | 0.3900 | -1026.6 | -774.0 | |
| 3.71 | 10.86 | 1.98 | 5.81 | -15.01 | 246.18 | 2.60 | 186.70 | 0.3773 | -1087.2 | -783.1 | |
| 2.12 | -36.00 | 1.14 | -36.00 | -15.50 | 246.12 | 2.54 | 186.40 | 0.3850 | -1152.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -14.78 | 246.02 | 2.44 | 186.36 | 0.3733 | -980.0 | -749.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -16.84 | 245.67 | 2.09 | 184.95 | 0.4057 | -845.0 | -691.5 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -14.74 | 243.81 | 0.23 | 180.62 | 0.3705 | 893.0 | 790.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
