SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.52 | 114.81 | 36.93 | 188.22 | 12.24 | 170.14 | -73.44 | 79.30 | 0.9542 | -118.3 | -44.0 | |
|
previous
or next observation for the same group /

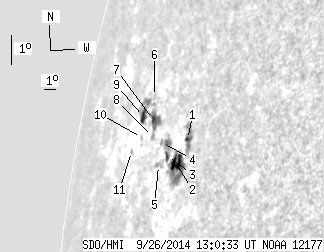

back to the solar disc SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.50 | 18.28 | 2.20 | 26.73 | 12.57 | 172.34 | -71.24 | 79.08 | 0.9427 | -542.5 | -372.2 | |
| 11.66 | 38.69 | 17.61 | 58.30 | 11.76 | 171.78 | -71.80 | 79.90 | 0.9461 | -497.6 | -283.3 | |
| 2.03 | 12.72 | 3.23 | 20.33 | 11.87 | 170.79 | -72.79 | 79.73 | 0.9514 | -32.5 | 117.6 | |
| 0.00 | 1.68 | 0.00 | 2.79 | 12.20 | 169.90 | -73.68 | 79.33 | 0.9559 | -159.0 | -74.4 | |
| 0.00 | 3.53 | 0.00 | 5.83 | 11.51 | 170.06 | -73.52 | 80.06 | 0.9553 | 323.0 | 207.1 | |
| 0.00 | 1.32 | 0.00 | 2.43 | 13.41 | 168.07 | -75.51 | 77.96 | 0.9642 | 224.0 | 203.1 | |
| 2.03 | 15.81 | 3.64 | 28.01 | 12.75 | 168.53 | -75.05 | 78.67 | 0.9623 | 466.0 | 216.9 | |
| 0.00 | 3.00 | 0.00 | 5.29 | 12.26 | 168.82 | -74.76 | 79.20 | 0.9611 | 189.0 | 162.5 | |
| 5.30 | 17.31 | 10.25 | 33.64 | 12.70 | 167.31 | -76.27 | 78.64 | 0.9678 | 199.2 | 122.9 | |
| 0.00 | 0.97 | 0.00 | 1.85 | 12.09 | 167.60 | -75.98 | 79.29 | 0.9667 | 408.0 | 377.1 | |
| 0.00 | 1.50 | 0.00 | 3.02 | 11.55 | 166.73 | -76.85 | 79.78 | 0.9705 | 259.0 | 253.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
