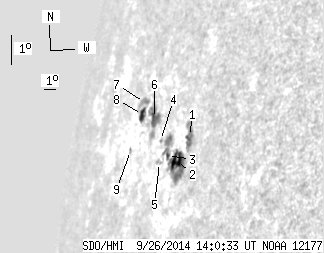

SDO HMI 2014-09-26 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.20 | 115.77 | 44.34 | 184.03 | 12.27 | 170.26 | -72.77 | 79.31 | 0.9507 | -40.1 | -61.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.69 | 0.00 | 23.79 | 12.61 | 172.44 | -70.59 | 79.07 | 0.9389 | -640.0 | -402.3 | |
| 11.92 | 54.40 | 17.57 | 81.16 | 11.79 | 171.71 | -71.32 | 79.91 | 0.9434 | -482.3 | -170.2 | |
| 1.68 | -2.00 | 2.58 | -2.00 | 11.84 | 170.78 | -72.25 | 79.80 | 0.9485 | -34.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 2.29 | 12.19 | 169.81 | -73.22 | 79.37 | 0.9535 | -151.0 | -70.9 | |
| 0.00 | 2.91 | 0.00 | 4.66 | 11.55 | 170.14 | -72.89 | 80.06 | 0.9520 | 221.0 | 230.6 | |
| 8.12 | 23.93 | 13.94 | 41.23 | 12.74 | 168.71 | -74.32 | 78.72 | 0.9588 | 333.7 | 241.3 | |
| 0.00 | 6.89 | 0.00 | 12.95 | 13.06 | 167.21 | -75.82 | 78.29 | 0.9657 | 283.0 | 184.6 | |
| 5.48 | 8.04 | 10.25 | 15.03 | 12.70 | 167.29 | -75.74 | 78.67 | 0.9654 | 189.1 | 163.9 | |
| 0.00 | 1.50 | 0.00 | 2.92 | 11.53 | 166.75 | -76.28 | 79.85 | 0.9681 | 281.0 | 258.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
