SDO HMI 2014-09-26 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.24 | 0.00 | 14.54 | 7.75 | 282.13 | 39.65 | 273.24 | 0.6266 | 120.5 | 110.2 | |
|
previous
or next observation for the same group /

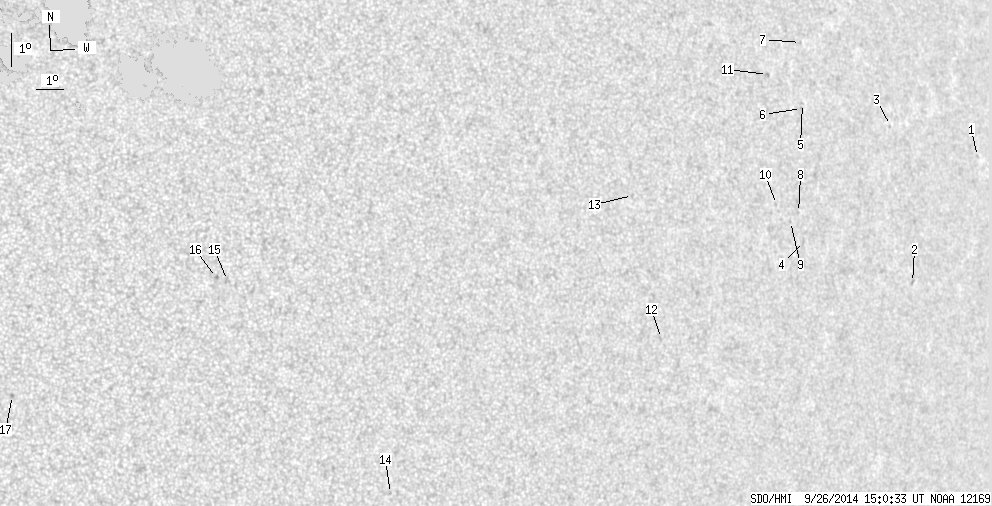

back to the solar disc SDO HMI 2014-09-26 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.67 | 8.59 | 296.93 | 54.45 | 275.62 | 0.8106 | -475.0 | -412.1 | |
| 0.00 | 1.50 | 0.00 | 1.17 | 5.14 | 293.12 | 50.64 | 270.97 | 0.7725 | -601.0 | -481.8 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 9.92 | 292.84 | 50.36 | 277.17 | 0.7669 | -594.0 | -567.0 | |
| 0.00 | 2.12 | 0.00 | 1.50 | 6.81 | 288.34 | 45.87 | 272.78 | 0.7158 | 633.0 | 470.2 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 10.93 | 288.98 | 46.50 | 278.55 | 0.7226 | -640.0 | -596.3 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 10.79 | 288.91 | 46.43 | 278.35 | 0.7216 | -586.0 | -513.7 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 12.76 | 289.30 | 46.82 | 281.07 | 0.7270 | -546.0 | -471.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 7.70 | 288.24 | 45.76 | 274.02 | 0.7141 | 546.0 | 463.0 | |
| 0.00 | 1.06 | 0.00 | 0.74 | 7.46 | 287.86 | 45.38 | 273.66 | 0.7096 | 373.0 | 262.0 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 8.02 | 287.34 | 44.86 | 274.43 | 0.7029 | 375.0 | 334.5 | |
| 0.00 | 2.03 | 0.00 | 1.42 | 11.93 | 287.64 | 45.16 | 280.00 | 0.7068 | -773.0 | -592.6 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 4.39 | 282.25 | 39.77 | 268.54 | 0.6403 | 650.0 | 555.2 | |
| 0.00 | 1.32 | 0.00 | 0.84 | 8.76 | 281.53 | 39.05 | 275.40 | 0.6277 | 609.0 | 445.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 0.41 | 272.17 | 29.69 | 258.88 | 0.5068 | 621.0 | 548.4 | |
| 0.00 | 3.44 | 0.00 | 1.87 | 7.13 | 266.87 | 24.39 | 272.03 | 0.4118 | 736.0 | 557.8 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 7.23 | 266.51 | 24.03 | 272.28 | 0.4061 | 847.0 | 751.4 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 3.98 | 259.80 | 17.32 | 261.26 | 0.3018 | 873.0 | 679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
