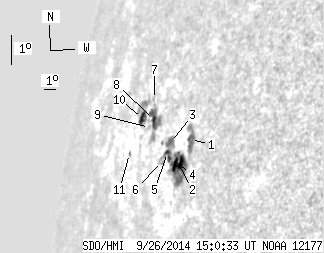

SDO HMI 2014-09-26 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.54 | 122.29 | 43.87 | 190.35 | 12.32 | 169.99 | -72.49 | 79.28 | 0.9492 | 38.0 | -69.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.60 | 0.00 | 23.09 | 12.60 | 172.38 | -70.10 | 79.11 | 0.9360 | -647.0 | -406.1 | |
| 11.21 | 46.89 | 16.10 | 67.73 | 11.79 | 171.75 | -70.72 | 79.94 | 0.9400 | -521.8 | -276.1 | |
| 0.00 | 8.39 | 0.00 | 12.64 | 12.31 | 170.65 | -71.83 | 79.32 | 0.9461 | 158.0 | 89.8 | |
| 1.15 | -2.00 | 1.72 | -2.00 | 11.84 | 170.85 | -71.63 | 79.83 | 0.9451 | -9.5 | 999999 | |
| 1.59 | -2.00 | 2.42 | -2.00 | 11.99 | 170.56 | -71.92 | 79.65 | 0.9467 | 107.8 | 999999 | |
| 0.00 | 3.53 | 0.00 | 5.48 | 11.67 | 170.16 | -72.32 | 79.97 | 0.9490 | 305.0 | 229.7 | |
| 0.00 | 1.50 | 0.00 | 2.59 | 13.35 | 168.14 | -74.34 | 78.09 | 0.9588 | 479.0 | 399.9 | |
| 7.59 | 23.75 | 12.79 | 39.60 | 12.77 | 168.50 | -73.98 | 78.71 | 0.9572 | 492.8 | 157.2 | |
| 0.00 | 1.32 | 0.00 | 2.26 | 12.50 | 168.26 | -74.22 | 78.98 | 0.9584 | 247.0 | 240.1 | |
| 6.00 | 18.90 | 10.84 | 34.29 | 12.67 | 167.29 | -75.19 | 78.75 | 0.9630 | 272.1 | 153.6 | |
| 0.00 | 1.41 | 0.00 | 2.67 | 11.51 | 166.63 | -75.85 | 79.90 | 0.9663 | 255.0 | 213.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
