SDO HMI 2014-09-26 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.35 | 132.88 | 39.08 | 201.93 | 12.22 | 170.14 | -71.78 | 79.42 | 0.9451 | -15.1 | -44.4 | |
|
previous
or next observation for the same group /

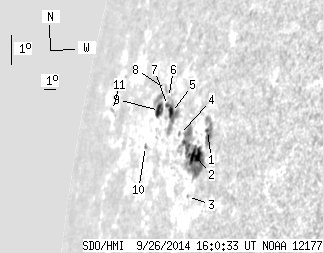

back to the solar disc SDO HMI 2014-09-26 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 16.07 | 0.96 | 21.82 | 12.62 | 172.28 | -69.64 | 79.11 | 0.9333 | -544.8 | -421.3 | |
| 12.63 | 69.04 | 17.71 | 98.50 | 11.78 | 171.69 | -70.24 | 79.97 | 0.9371 | -534.3 | -107.5 | |
| 0.00 | 1.15 | 0.00 | 1.62 | 10.52 | 171.65 | -70.28 | 81.32 | 0.9378 | -292.0 | -261.6 | |
| 0.00 | 1.50 | 0.00 | 2.30 | 12.22 | 169.87 | -72.06 | 79.40 | 0.9474 | 62.0 | 50.0 | |
| 4.24 | 22.51 | 6.90 | 36.42 | 12.76 | 168.64 | -73.28 | 78.76 | 0.9537 | 521.4 | 193.3 | |
| 0.00 | 1.24 | 0.00 | 2.08 | 13.15 | 168.00 | -73.93 | 78.32 | 0.9568 | 471.0 | 455.9 | |
| 0.97 | -5.00 | 1.63 | -5.00 | 12.91 | 168.08 | -73.85 | 78.57 | 0.9565 | 520.9 | 999999 | |
| 0.00 | 2.30 | 0.00 | 3.94 | 13.35 | 167.60 | -74.32 | 78.08 | 0.9587 | 471.0 | 386.0 | |
| 6.80 | 15.98 | 11.88 | 28.12 | 12.68 | 167.35 | -74.58 | 78.78 | 0.9601 | 295.4 | 71.2 | |
| 0.00 | 1.50 | 0.00 | 2.75 | 11.48 | 166.62 | -75.31 | 79.97 | 0.9639 | 315.0 | 258.9 | |
| 0.00 | 1.59 | 0.00 | 4.38 | 11.95 | 161.15 | -80.78 | 79.05 | 0.9844 | 322.0 | 187.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
