SDO HMI 2014-09-26 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 297.77 | 1154.45 | 159.06 | 617.22 | 14.78 | 262.18 | 20.80 | 293.30 | 0.3755 | 35.5 | -58.8 | |
|
previous
or next observation for the same group /

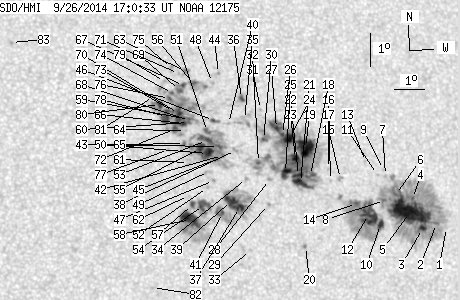

back to the solar disc SDO HMI 2014-09-26 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.00 | 267.11 | 25.73 | 285.56 | 0.4410 | 102.0 | 70.0 | |
| 1.06 | 280.73 | 0.58 | 153.66 | 13.14 | 266.78 | 25.41 | 286.02 | 0.4365 | -428.4 | -360.4 | |
| 3.18 | -2.00 | 1.74 | -2.00 | 13.02 | 266.29 | 24.92 | 285.95 | 0.4287 | -1061.8 | 999999 | |
| 1.32 | -2.00 | 0.73 | -2.00 | 13.94 | 266.06 | 24.68 | 288.18 | 0.4283 | -631.1 | 999999 | |
| 58.53 | -2.00 | 32.00 | -2.00 | 13.52 | 265.91 | 24.53 | 287.30 | 0.4246 | -1203.6 | 999999 | |
| 1.77 | -2.00 | 0.96 | -2.00 | 14.09 | 265.49 | 24.12 | 288.83 | 0.4205 | -752.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 14.68 | 265.22 | 23.85 | 290.36 | 0.4189 | -764.0 | -522.1 | |
| 0.97 | -2.00 | 0.53 | -2.00 | 13.92 | 265.10 | 23.73 | 288.68 | 0.4140 | -1009.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 14.86 | 265.18 | 23.80 | 290.82 | 0.4191 | -780.0 | -568.7 | |
| 4.86 | 112.91 | 2.63 | 60.99 | 13.21 | 264.89 | 23.51 | 287.09 | 0.4081 | -895.6 | -504.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 14.72 | 264.96 | 23.58 | 290.63 | 0.4152 | -894.0 | -667.8 | |
| 27.10 | -10.00 | 14.66 | -10.00 | 13.53 | 264.52 | 23.14 | 288.07 | 0.4037 | -1198.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 15.13 | 264.60 | 23.22 | 291.83 | 0.4118 | -782.0 | -496.1 | |
| 2.47 | -10.00 | 1.33 | -10.00 | 13.88 | 264.15 | 22.78 | 289.14 | 0.3996 | -734.8 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.43 | 14.66 | 263.70 | 22.32 | 291.34 | 0.3962 | 731.0 | 620.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 14.61 | 263.36 | 21.98 | 291.48 | 0.3909 | -759.0 | -614.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 14.98 | 263.33 | 21.96 | 292.40 | 0.3923 | 584.0 | 433.1 | |
| 3.88 | 275.52 | 2.08 | 147.28 | 14.79 | 262.71 | 21.33 | 292.43 | 0.3822 | 510.3 | -413.0 | |
| 21.98 | -18.00 | 11.79 | -18.00 | 15.65 | 262.64 | 21.26 | 294.60 | 0.3857 | -1224.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 12.66 | 262.34 | 20.96 | 287.18 | 0.3670 | 935.0 | 744.3 | |
| 8.83 | -18.00 | 4.72 | -18.00 | 14.60 | 262.36 | 20.98 | 292.22 | 0.3759 | 1019.1 | 999999 | |
| 4.41 | -18.00 | 2.36 | -18.00 | 14.81 | 262.31 | 20.94 | 292.80 | 0.3763 | 675.6 | 999999 | |
| 5.56 | -18.00 | 2.97 | -18.00 | 15.33 | 262.27 | 20.89 | 294.14 | 0.3785 | -1331.4 | 999999 | |
| 8.39 | -18.00 | 4.49 | -18.00 | 15.95 | 262.13 | 20.76 | 295.78 | 0.3801 | -1130.9 | 999999 | |
| 7.86 | -18.00 | 4.19 | -18.00 | 14.92 | 261.89 | 20.51 | 293.43 | 0.3707 | 999.4 | 999999 | |
| 1.41 | -18.00 | 0.76 | -18.00 | 16.08 | 261.91 | 20.54 | 296.31 | 0.3777 | -1002.9 | 999999 | |
| 2.12 | -18.00 | 1.13 | -18.00 | 16.27 | 261.73 | 20.36 | 296.96 | 0.3763 | -1022.9 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 14.73 | 261.34 | 19.97 | 293.43 | 0.3615 | -989.0 | -712.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 13.98 | 261.24 | 19.86 | 291.52 | 0.3559 | -605.0 | -555.0 | |
| 0.97 | -18.00 | 0.52 | -18.00 | 15.95 | 261.27 | 19.89 | 296.64 | 0.3675 | -1019.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 16.87 | 261.27 | 19.89 | 298.91 | 0.3735 | -681.0 | -513.8 | |
| 1.41 | -18.00 | 0.75 | -18.00 | 15.26 | 261.03 | 19.65 | 295.10 | 0.3599 | -946.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.61 | 260.53 | 19.15 | 288.30 | 0.3387 | 636.0 | 529.1 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 14.79 | 260.59 | 19.21 | 294.30 | 0.3506 | 647.0 | 452.6 | |
| 0.00 | 13.33 | 0.00 | 7.08 | 16.58 | 260.70 | 19.32 | 298.83 | 0.3636 | 27.0 | 75.8 | |
| 2.03 | 4.68 | 1.08 | 2.49 | 17.23 | 260.67 | 19.29 | 300.46 | 0.3677 | -953.7 | -700.7 | |
| 7.86 | 78.30 | 4.14 | 41.22 | 13.92 | 260.28 | 18.90 | 292.22 | 0.3412 | 1123.9 | 438.2 | |
| 0.00 | 2.91 | 0.00 | 1.54 | 15.65 | 260.31 | 18.93 | 296.88 | 0.3518 | 420.0 | 300.2 | |
| 10.24 | -37.00 | 5.39 | -37.00 | 14.14 | 260.04 | 18.66 | 293.06 | 0.3387 | 1214.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 16.48 | 260.16 | 18.78 | 299.19 | 0.3552 | 796.0 | 593.0 | |
| 0.79 | -37.00 | 0.42 | -37.00 | 13.79 | 259.71 | 18.34 | 292.38 | 0.3319 | 1113.3 | 999999 | |
| 0.26 | 100.11 | 0.14 | 52.71 | 15.52 | 259.87 | 18.49 | 297.00 | 0.3445 | 677.7 | 504.4 | |
| 3.09 | -42.00 | 1.63 | -42.00 | 15.80 | 259.76 | 18.39 | 297.86 | 0.3448 | 443.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 18.02 | 259.99 | 18.62 | 303.21 | 0.3644 | 776.0 | 692.4 | |
| 1.06 | -42.00 | 0.56 | -42.00 | 15.41 | 259.63 | 18.25 | 296.97 | 0.3402 | 880.9 | 999999 | |
| 1.15 | 3.62 | 0.61 | 1.91 | 16.59 | 259.67 | 18.30 | 300.05 | 0.3491 | 794.8 | 600.7 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 14.77 | 259.50 | 18.13 | 295.36 | 0.3344 | 964.0 | 753.4 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 17.75 | 259.76 | 18.39 | 302.85 | 0.3592 | 591.0 | 430.2 | |
| 0.00 | 3.18 | 0.00 | 1.67 | 15.05 | 259.36 | 17.99 | 296.29 | 0.3341 | 866.0 | 791.5 | |
| 10.86 | -42.00 | 5.71 | -42.00 | 15.60 | 259.38 | 18.01 | 297.77 | 0.3379 | 1115.7 | 999999 | |
| 2.30 | -42.00 | 1.21 | -42.00 | 16.27 | 259.44 | 18.07 | 299.48 | 0.3435 | 851.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 14.57 | 259.29 | 17.91 | 295.02 | 0.3300 | 887.0 | 732.6 | |
| 7.68 | -42.00 | 4.04 | -42.00 | 15.99 | 259.39 | 18.01 | 298.83 | 0.3407 | 801.2 | 999999 | |
| 8.39 | 84.84 | 4.39 | 44.29 | 14.03 | 259.11 | 17.74 | 293.66 | 0.3241 | 1109.9 | 526.1 | |
| 7.24 | -42.00 | 3.81 | -42.00 | 15.76 | 259.17 | 17.79 | 298.46 | 0.3359 | 1309.2 | 999999 | |
| 1.94 | 143.81 | 1.03 | 75.64 | 17.74 | 259.13 | 17.75 | 303.67 | 0.3505 | 536.8 | 448.9 | |
| 2.12 | -54.00 | 1.11 | -54.00 | 14.07 | 258.76 | 17.38 | 294.16 | 0.3191 | 1093.4 | 999999 | |
| 17.74 | -54.00 | 9.26 | -54.00 | 13.62 | 258.66 | 17.28 | 292.93 | 0.3149 | 1220.7 | 999999 | |
| 1.85 | -56.00 | 0.98 | -56.00 | 16.65 | 258.89 | 17.51 | 301.20 | 0.3385 | 787.3 | 999999 | |
| 0.97 | -56.00 | 0.51 | -56.00 | 16.56 | 258.85 | 17.47 | 301.02 | 0.3373 | 846.8 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.54 | 15.35 | 258.74 | 17.36 | 297.85 | 0.3269 | 584.0 | 617.3 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 14.35 | 258.65 | 17.28 | 295.10 | 0.3191 | 719.0 | 622.7 | |
| 0.00 | 4.50 | 0.00 | 2.38 | 18.12 | 258.91 | 17.53 | 304.91 | 0.3506 | 796.0 | 691.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 16.32 | 258.73 | 17.35 | 300.54 | 0.3338 | 832.0 | 724.7 | |
| 0.71 | 3.35 | 0.37 | 1.76 | 15.93 | 258.66 | 17.28 | 299.56 | 0.3299 | 1247.6 | 943.4 | |
| 3.88 | -56.00 | 2.04 | -56.00 | 16.54 | 258.68 | 17.31 | 301.17 | 0.3347 | 1159.2 | 999999 | |
| 1.59 | -56.00 | 0.84 | -56.00 | 17.70 | 258.79 | 17.42 | 304.01 | 0.3455 | 806.7 | 999999 | |
| 1.41 | -56.00 | 0.74 | -56.00 | 16.69 | 258.70 | 17.32 | 301.56 | 0.3361 | 1006.5 | 999999 | |
| 2.12 | -56.00 | 1.12 | -56.00 | 17.55 | 258.65 | 17.27 | 303.84 | 0.3423 | 833.6 | 999999 | |
| 11.83 | -56.00 | 6.22 | -56.00 | 16.85 | 258.55 | 17.17 | 302.18 | 0.3353 | 936.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 18.07 | 258.67 | 17.29 | 305.12 | 0.3470 | 838.0 | 664.5 | |
| 3.80 | -56.00 | 1.99 | -56.00 | 16.39 | 258.41 | 17.03 | 301.16 | 0.3298 | 1248.1 | 999999 | |
| 0.97 | -56.00 | 0.51 | -56.00 | 16.91 | 258.39 | 17.01 | 302.57 | 0.3336 | 1001.1 | 999999 | |
| 0.97 | -56.00 | 0.51 | -56.00 | 17.46 | 258.41 | 17.03 | 303.97 | 0.3384 | 871.7 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.44 | 18.23 | 258.45 | 17.08 | 305.83 | 0.3455 | 935.0 | 784.6 | |
| 1.77 | -56.00 | 0.93 | -56.00 | 17.32 | 258.30 | 16.92 | 303.75 | 0.3356 | 955.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 15.76 | 258.12 | 16.74 | 299.81 | 0.3210 | 821.0 | 604.8 | |
| 9.45 | -56.00 | 4.95 | -56.00 | 16.77 | 258.15 | 16.77 | 302.53 | 0.3291 | 1215.8 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 17.84 | 258.18 | 16.81 | 305.26 | 0.3385 | 719.0 | 614.4 | |
| 3.62 | -56.00 | 1.90 | -56.00 | 17.14 | 257.95 | 16.57 | 303.80 | 0.3295 | 1114.5 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.11 | 17.39 | 257.78 | 16.40 | 304.72 | 0.3292 | 699.0 | 530.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.61 | 257.30 | 15.93 | 287.85 | 0.2836 | 868.0 | 725.7 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 19.18 | 253.29 | 11.92 | 317.80 | 0.2916 | 902.0 | 716.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
