SDO HMI 2014-09-26 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.32 | 364.26 | 54.18 | 208.67 | -10.89 | 264.28 | 23.46 | 231.80 | 0.4993 | 193.0 | 84.9 | |
|
previous
or next observation for the same group /

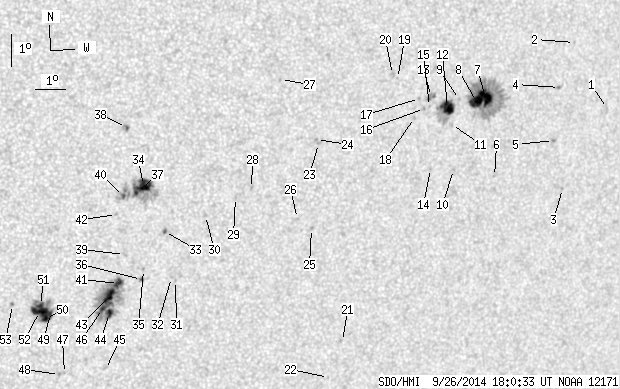

back to the solar disc SDO HMI 2014-09-26 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.50 | -9.06 | 275.28 | 34.45 | 245.53 | 0.6161 | 538.0 | 430.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -6.91 | 273.87 | 33.05 | 247.92 | 0.5864 | 734.0 | 595.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -11.47 | 273.91 | 33.09 | 241.03 | 0.6138 | 596.0 | 430.2 | |
| 0.00 | 1.85 | 0.00 | 1.13 | -8.28 | 273.45 | 32.62 | 245.50 | 0.5885 | 744.0 | 650.1 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -9.93 | 273.40 | 32.57 | 242.93 | 0.5978 | 873.0 | 738.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -10.92 | 271.39 | 30.56 | 239.87 | 0.5795 | 799.0 | 557.7 | |
| 12.45 | 109.28 | 7.40 | 65.04 | -8.38 | 270.82 | 30.00 | 243.39 | 0.5554 | 1123.9 | 275.6 | |
| 11.83 | -7.00 | 7.02 | -7.00 | -8.52 | 270.52 | 29.69 | 242.92 | 0.5523 | 1183.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.42 | 269.91 | 29.09 | 242.59 | 0.5439 | 804.0 | 630.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -10.61 | 269.91 | 29.08 | 239.09 | 0.5590 | 639.0 | 499.4 | |
| 0.00 | 2.12 | 0.00 | 1.25 | -9.19 | 269.70 | 28.88 | 241.16 | 0.5463 | 231.0 | 235.8 | |
| 11.83 | 29.40 | 6.95 | 17.28 | -8.65 | 269.52 | 28.69 | 241.89 | 0.5402 | 1094.5 | 488.1 | |
| 0.00 | 5.38 | 0.00 | 3.14 | -8.27 | 268.93 | 28.11 | 242.01 | 0.5301 | 899.0 | 825.1 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -10.53 | 269.10 | 28.27 | 238.48 | 0.5484 | 730.0 | 555.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -8.58 | 268.89 | 28.06 | 241.46 | 0.5316 | 664.0 | 579.3 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -8.63 | 268.72 | 27.89 | 241.22 | 0.5298 | 942.0 | 793.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.31 | 268.52 | 27.70 | 241.59 | 0.5250 | 910.0 | 758.3 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -8.89 | 268.40 | 27.57 | 240.50 | 0.5275 | 789.0 | 693.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -7.64 | 267.72 | 26.90 | 242.01 | 0.5098 | 689.0 | 555.4 | |
| 0.00 | 2.82 | 0.00 | 1.62 | -7.50 | 267.54 | 26.72 | 242.08 | 0.5065 | 789.0 | 604.6 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -15.91 | 266.68 | 25.86 | 228.11 | 0.5656 | 414.0 | 522.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -17.07 | 266.36 | 25.54 | 226.20 | 0.5731 | 669.0 | 431.2 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -9.52 | 265.19 | 24.37 | 236.21 | 0.4916 | -647.0 | -559.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -9.39 | 265.11 | 24.29 | 236.34 | 0.4895 | -834.0 | -790.1 | |
| 0.00 | 1.68 | 0.00 | 0.97 | -12.20 | 265.19 | 24.36 | 231.83 | 0.5149 | 712.0 | 608.9 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -11.86 | 264.68 | 23.86 | 231.79 | 0.5058 | 643.0 | 556.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -7.46 | 263.80 | 22.97 | 238.33 | 0.4565 | 814.0 | 670.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.83 | 263.06 | 22.24 | 231.48 | 0.4770 | -764.0 | -643.4 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -11.09 | 262.55 | 21.73 | 230.40 | 0.4735 | -856.0 | -732.3 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -11.61 | 261.61 | 20.78 | 228.27 | 0.4676 | -140.0 | -143.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.65 | 260.79 | 19.96 | 223.96 | 0.4799 | -559.0 | -482.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.54 | 260.65 | 19.82 | 223.91 | 0.4773 | -812.0 | -572.0 | |
| 0.35 | 1.77 | 0.20 | 0.98 | -12.06 | 260.30 | 19.47 | 225.68 | 0.4576 | 866.8 | 689.4 | |
| 13.68 | 42.11 | 7.51 | 23.14 | -10.57 | 259.52 | 18.69 | 226.96 | 0.4328 | 1069.0 | 371.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -13.25 | 259.71 | 18.88 | 222.96 | 0.4641 | -829.0 | -675.6 | |
| 0.62 | 1.77 | 0.35 | 0.99 | -13.56 | 259.67 | 18.84 | 222.43 | 0.4673 | -863.0 | -748.1 | |
| 2.03 | -34.00 | 1.11 | -34.00 | -10.79 | 259.30 | 18.48 | 226.27 | 0.4327 | 1002.8 | 999999 | |
| 0.71 | 3.80 | 0.38 | 2.06 | -8.73 | 258.87 | 18.04 | 229.25 | 0.4058 | 908.2 | 768.1 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -12.74 | 259.05 | 18.22 | 222.72 | 0.4515 | -760.0 | -583.8 | |
| 0.97 | 12.45 | 0.53 | 6.82 | -10.90 | 258.89 | 18.07 | 225.43 | 0.4292 | 1036.3 | 783.0 | |
| 4.94 | 81.48 | 2.76 | 45.51 | -13.66 | 258.92 | 18.10 | 221.14 | 0.4608 | -1038.4 | -563.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -11.46 | 258.70 | 17.88 | 224.20 | 0.4334 | 739.0 | 656.7 | |
| 8.47 | -41.00 | 4.73 | -41.00 | -14.04 | 258.66 | 17.84 | 220.18 | 0.4625 | -1260.7 | 999999 | |
| 4.33 | -41.00 | 2.42 | -41.00 | -14.62 | 258.71 | 17.88 | 219.43 | 0.4697 | -831.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -16.44 | 258.74 | 17.91 | 217.06 | 0.4916 | -775.0 | -641.5 | |
| 2.38 | -41.00 | 1.33 | -41.00 | -14.45 | 258.47 | 17.64 | 219.29 | 0.4654 | -941.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.52 | 257.40 | 16.58 | 214.85 | 0.4806 | -715.0 | -582.8 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -16.54 | 257.24 | 16.41 | 214.56 | 0.4795 | -794.0 | -613.1 | |
| 1.94 | 35.31 | 1.08 | 19.53 | -14.55 | 256.79 | 15.96 | 216.38 | 0.4506 | -812.0 | -637.1 | |
| 4.41 | -49.00 | 2.45 | -49.00 | -14.70 | 256.64 | 15.81 | 215.92 | 0.4512 | -859.2 | 999999 | |
| 2.82 | -49.00 | 1.56 | -49.00 | -14.28 | 256.44 | 15.62 | 216.16 | 0.4441 | -1131.7 | 999999 | |
| 11.56 | -49.00 | 6.40 | -49.00 | -14.47 | 256.43 | 15.60 | 215.87 | 0.4463 | -1129.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.21 | 255.54 | 14.72 | 214.63 | 0.4351 | -867.0 | -736.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
