SDO HMI 2014-09-26 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.03 | 19.52 | 1.95 | 18.96 | -14.48 | 185.01 | -55.81 | 111.38 | 0.8619 | 35.1 | -52.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

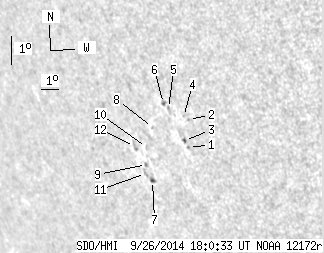

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 1.15 | -14.41 | 186.73 | -54.09 | 111.90 | 0.8476 | 570.0 | 461.9 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -13.49 | 187.05 | -53.77 | 110.97 | 0.8422 | 513.0 | 460.0 | |
| 0.62 | 1.94 | 0.57 | 1.81 | -14.20 | 186.60 | -54.23 | 111.62 | 0.8482 | 410.1 | 359.5 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -13.42 | 186.81 | -54.01 | 110.81 | 0.8441 | 526.0 | 453.9 | |
| 0.00 | 1.41 | 0.00 | 1.32 | -13.24 | 186.07 | -54.75 | 110.35 | 0.8500 | 553.0 | 400.6 | |
| 0.44 | 2.30 | 0.41 | 2.15 | -13.10 | 185.85 | -54.98 | 110.13 | 0.8515 | 462.2 | 375.7 | |
| 0.97 | 2.03 | 0.97 | 2.04 | -15.72 | 184.23 | -56.59 | 112.50 | 0.8717 | -544.0 | -457.2 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -13.96 | 184.94 | -55.88 | 110.78 | 0.8614 | -532.0 | -477.0 | |
| 0.00 | 1.77 | 0.00 | 1.77 | -15.22 | 184.10 | -56.72 | 111.91 | 0.8714 | -604.0 | -539.2 | |
| 0.00 | 1.15 | 0.00 | 1.14 | -14.66 | 184.34 | -56.49 | 111.36 | 0.8681 | -371.0 | -403.7 | |
| 0.00 | 2.12 | 0.00 | 2.14 | -15.53 | 183.91 | -56.91 | 112.18 | 0.8737 | -280.0 | -218.0 | |
| 0.00 | 3.18 | 0.00 | 3.21 | -14.70 | 183.63 | -57.19 | 111.17 | 0.8738 | -313.0 | -301.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
