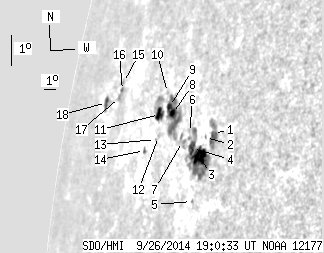

SDO HMI 2014-09-26 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.60 | 164.01 | 52.50 | 239.84 | 12.35 | 169.05 | -71.22 | 79.31 | 0.9413 | 2.5 | -8.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.65 | 0.00 | 22.39 | 12.60 | 172.38 | -67.89 | 79.21 | 0.9221 | -687.0 | -455.1 | |
| 0.00 | 1.06 | 0.00 | 1.37 | 12.41 | 171.81 | -68.46 | 79.39 | 0.9259 | -172.0 | -139.7 | |
| 12.80 | 63.47 | 16.73 | 83.70 | 11.81 | 171.63 | -68.64 | 80.03 | 0.9272 | -624.5 | -213.7 | |
| 5.47 | -3.00 | 7.39 | -3.00 | 11.97 | 170.93 | -69.34 | 79.82 | 0.9316 | -55.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.39 | 10.43 | 171.64 | -68.63 | 81.52 | 0.9276 | -401.0 | -315.8 | |
| 0.00 | 1.41 | 0.00 | 1.95 | 12.41 | 170.41 | -69.86 | 79.32 | 0.9346 | 161.0 | 110.2 | |
| 0.00 | 5.83 | 0.00 | 8.20 | 12.08 | 169.96 | -70.31 | 79.65 | 0.9374 | 349.0 | 250.9 | |
| 3.09 | 41.40 | 4.64 | 61.67 | 12.78 | 168.55 | -71.72 | 78.83 | 0.9453 | 691.9 | 266.0 | |
| 2.65 | -8.00 | 4.05 | -8.00 | 12.95 | 168.13 | -72.14 | 78.63 | 0.9476 | 562.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.52 | 13.33 | 167.64 | -72.63 | 78.20 | 0.9501 | 416.0 | 397.7 | |
| 7.15 | 17.04 | 11.42 | 27.34 | 12.62 | 167.33 | -72.94 | 78.94 | 0.9519 | 319.2 | 107.1 | |
| 0.00 | 0.97 | 0.00 | 1.52 | 11.98 | 167.68 | -72.59 | 79.63 | 0.9503 | 394.0 | 324.6 | |
| 0.00 | 0.44 | 0.00 | 0.70 | 11.86 | 167.44 | -72.83 | 79.74 | 0.9516 | 347.0 | 308.4 | |
| 0.00 | 1.94 | 0.00 | 3.24 | 11.42 | 166.55 | -73.72 | 80.14 | 0.9563 | 351.0 | 277.7 | |
| 0.00 | 1.59 | 0.00 | 3.41 | 13.05 | 162.48 | -77.80 | 78.18 | 0.9738 | -70.0 | -68.9 | |
| 0.62 | 2.03 | 1.32 | 4.34 | 12.81 | 162.58 | -77.69 | 78.43 | 0.9735 | 104.0 | 126.5 | |
| 0.00 | 1.68 | 0.00 | 3.62 | 12.57 | 162.38 | -77.89 | 78.66 | 0.9743 | 246.0 | 249.6 | |
| 2.82 | 5.47 | 6.95 | 13.48 | 12.22 | 160.68 | -79.59 | 78.89 | 0.9805 | 117.1 | 102.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
