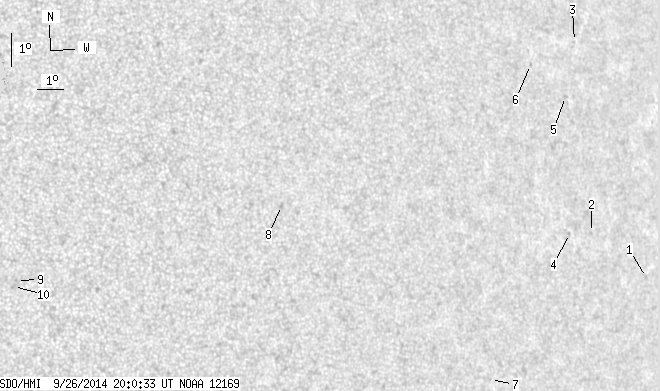

SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.35 | 0.00 | 8.50 | 8.22 | 283.34 | 43.62 | 274.63 | 0.6806 | 166.5 | 63.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.27 | 5.22 | 291.82 | 52.10 | 271.22 | 0.7883 | -497.0 | -370.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 6.81 | 289.38 | 49.66 | 273.06 | 0.7602 | 547.0 | 474.8 | |
| 0.00 | 0.53 | 0.00 | 0.40 | 12.57 | 289.76 | 50.04 | 280.65 | 0.7635 | -547.0 | -438.7 | |
| 0.00 | 1.41 | 0.00 | 1.05 | 6.87 | 288.37 | 48.65 | 273.06 | 0.7486 | 477.0 | 352.4 | |
| 0.00 | 1.85 | 0.00 | 1.39 | 10.97 | 288.93 | 49.21 | 278.56 | 0.7540 | -380.0 | -357.6 | |
| 0.00 | 1.15 | 0.00 | 0.84 | 12.07 | 287.56 | 47.84 | 280.06 | 0.7385 | -557.0 | -527.5 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 2.81 | 284.50 | 44.78 | 267.01 | 0.7068 | 667.0 | 540.2 | |
| 0.00 | 2.38 | 0.00 | 1.47 | 8.68 | 276.63 | 36.91 | 275.27 | 0.5985 | 658.0 | 482.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 7.04 | 266.97 | 27.25 | 271.96 | 0.4566 | 709.0 | 619.3 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 6.87 | 266.86 | 27.14 | 271.57 | 0.4549 | 588.0 | 443.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
