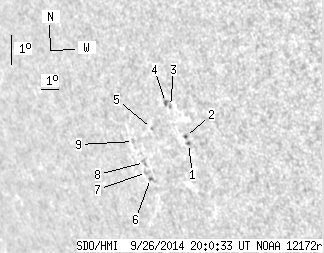

SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.94 | 16.77 | 1.80 | 15.86 | -14.61 | 184.93 | -54.79 | 111.88 | 0.8539 | 54.4 | -122.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 1.59 | 0.32 | 1.43 | -14.33 | 186.71 | -53.01 | 112.21 | 0.8380 | 539.2 | 397.9 | |
| 0.53 | 1.32 | 0.48 | 1.20 | -14.12 | 186.63 | -53.09 | 111.93 | 0.8380 | 542.0 | 442.1 | |
| 0.00 | 1.50 | 0.00 | 1.36 | -13.21 | 186.15 | -53.57 | 110.73 | 0.8396 | 484.0 | 408.9 | |
| 0.53 | 2.47 | 0.48 | 2.25 | -13.11 | 185.92 | -53.80 | 110.54 | 0.8414 | 495.0 | 380.7 | |
| 0.00 | 0.62 | 0.00 | 0.58 | -14.04 | 184.85 | -54.86 | 111.22 | 0.8531 | -559.0 | -526.1 | |
| 0.53 | 3.00 | 0.52 | 2.92 | -15.71 | 184.15 | -55.57 | 112.84 | 0.8635 | -495.2 | -425.1 | |
| 0.00 | 2.12 | 0.00 | 2.07 | -15.54 | 184.00 | -55.72 | 112.59 | 0.8643 | -497.0 | -376.8 | |
| 0.00 | 2.47 | 0.00 | 2.41 | -15.21 | 184.02 | -55.70 | 112.24 | 0.8632 | -561.0 | -465.9 | |
| 0.00 | 1.68 | 0.00 | 1.64 | -14.58 | 183.66 | -56.06 | 111.42 | 0.8645 | -323.0 | -294.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
