SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.82 | 157.30 | 50.67 | 226.06 | 12.31 | 168.95 | -70.77 | 79.37 | 0.9385 | -69.4 | 4.6 | |
|
previous
or next observation for the same group /

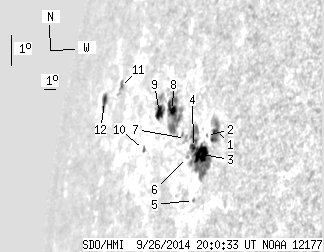

back to the solar disc SDO HMI 2014-09-26 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.18 | 0.00 | 18.84 | 12.63 | 172.38 | -67.34 | 79.20 | 0.9184 | -720.0 | -462.9 | |
| 0.00 | 0.53 | 0.00 | 0.67 | 12.41 | 171.77 | -67.95 | 79.41 | 0.9226 | -247.0 | -205.5 | |
| 15.45 | 62.50 | 19.75 | 80.45 | 11.81 | 171.67 | -68.05 | 80.05 | 0.9234 | -617.7 | -224.3 | |
| 2.30 | -3.00 | 3.03 | -3.00 | 11.94 | 170.92 | -68.80 | 79.88 | 0.9282 | -52.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.47 | 10.41 | 171.69 | -68.03 | 81.58 | 0.9237 | -385.0 | -341.9 | |
| 0.00 | 1.32 | 0.00 | 1.77 | 11.60 | 170.59 | -69.13 | 80.23 | 0.9304 | 280.0 | 290.9 | |
| 0.00 | 4.06 | 0.00 | 5.54 | 12.13 | 170.11 | -69.61 | 79.63 | 0.9332 | 395.0 | 320.7 | |
| 4.77 | 40.16 | 6.98 | 58.37 | 12.81 | 168.48 | -71.24 | 78.83 | 0.9426 | 674.5 | 308.0 | |
| 6.62 | 18.10 | 10.27 | 28.15 | 12.62 | 167.31 | -72.41 | 78.97 | 0.9491 | 363.3 | 160.1 | |
| 0.53 | 2.12 | 0.86 | 3.44 | 11.38 | 166.47 | -73.25 | 80.21 | 0.9539 | 242.3 | 220.7 | |
| 0.00 | 4.68 | 0.00 | 9.63 | 12.83 | 162.45 | -77.27 | 78.44 | 0.9718 | 28.0 | 65.4 | |
| 4.15 | 7.50 | 9.78 | 17.73 | 12.19 | 160.68 | -79.04 | 78.96 | 0.9787 | 43.5 | 116.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
