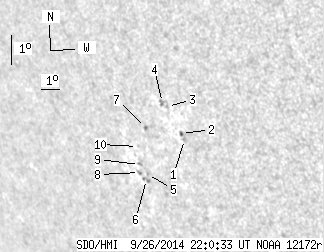

SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 17.83 | 1.02 | 16.28 | -14.49 | 185.18 | -53.43 | 112.23 | 0.8419 | -150.5 | -71.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 1.47 | -14.22 | 186.77 | -51.85 | 112.51 | 0.8273 | 508.0 | 415.3 | |
| 0.79 | 1.59 | 0.70 | 1.39 | -14.04 | 186.68 | -51.94 | 112.27 | 0.8275 | 597.4 | 502.4 | |
| 0.00 | 1.50 | 0.00 | 1.32 | -13.22 | 186.22 | -52.39 | 111.16 | 0.8291 | 450.0 | 339.1 | |
| 0.00 | 3.71 | 0.00 | 3.28 | -13.12 | 186.00 | -52.61 | 110.96 | 0.8308 | 587.0 | 388.2 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -15.58 | 184.35 | -54.26 | 113.15 | 0.8524 | -622.0 | -541.6 | |
| 0.00 | 3.00 | 0.00 | 2.84 | -15.75 | 184.23 | -54.38 | 113.30 | 0.8539 | -611.0 | -420.4 | |
| 0.35 | 1.32 | 0.32 | 1.22 | -14.03 | 184.82 | -53.79 | 111.58 | 0.8439 | -573.2 | -485.4 | |
| 0.00 | 1.85 | 0.00 | 1.76 | -15.56 | 183.93 | -54.68 | 112.98 | 0.8559 | -430.0 | -378.5 | |
| 0.00 | 1.68 | 0.00 | 1.59 | -15.29 | 184.04 | -54.58 | 112.72 | 0.8542 | -573.0 | -516.1 | |
| 0.00 | 0.62 | 0.00 | 0.58 | -14.70 | 184.15 | -54.46 | 112.10 | 0.8516 | -479.0 | -362.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
