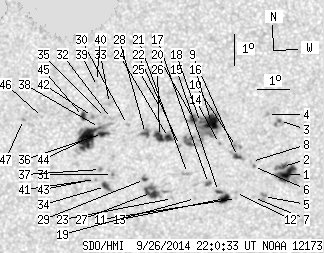

SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.80 | 285.39 | 55.76 | 156.31 | -15.96 | 249.08 | 10.46 | 204.13 | 0.4271 | -2.4 | 20.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.65 | 33.11 | 8.19 | 18.49 | -16.91 | 252.53 | 13.91 | 209.87 | 0.4638 | 975.1 | 457.4 | |
| 2.74 | -1.00 | 1.52 | -1.00 | -16.65 | 252.41 | 13.80 | 209.96 | 0.4594 | 1101.2 | 999999 | |
| 0.53 | 4.77 | 0.29 | 2.63 | -15.14 | 252.21 | 13.60 | 211.37 | 0.4378 | 959.0 | 713.9 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -14.93 | 251.81 | 13.20 | 210.87 | 0.4318 | 802.0 | 728.1 | |
| 0.00 | 4.24 | 0.00 | 2.37 | -17.62 | 251.87 | 13.25 | 207.93 | 0.4684 | 876.0 | 720.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -16.62 | 251.47 | 12.86 | 208.28 | 0.4519 | 898.0 | 799.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -17.64 | 251.54 | 12.93 | 207.33 | 0.4664 | 735.0 | 492.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -16.45 | 251.40 | 12.78 | 208.32 | 0.4491 | 726.0 | 568.2 | |
| 2.30 | 6.80 | 1.27 | 3.75 | -16.27 | 250.94 | 12.32 | 207.65 | 0.4433 | 903.1 | 689.5 | |
| 0.00 | 4.15 | 0.00 | 2.28 | -15.95 | 250.88 | 12.27 | 207.91 | 0.4384 | 984.0 | 842.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -17.66 | 251.00 | 12.38 | 206.32 | 0.4628 | 557.0 | 311.4 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -17.46 | 250.95 | 12.34 | 206.43 | 0.4597 | 732.0 | 562.7 | |
| 6.09 | 11.83 | 3.39 | 6.59 | -17.65 | 250.61 | 11.99 | 205.61 | 0.4600 | 917.8 | 650.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.83 | 250.33 | 11.72 | 206.96 | 0.4329 | 801.0 | 683.3 | |
| 1.32 | -13.00 | 0.74 | -13.00 | -17.41 | 250.40 | 11.78 | 205.45 | 0.4553 | 753.9 | 999999 | |
| 13.86 | 71.77 | 7.56 | 39.18 | -15.14 | 250.04 | 11.43 | 207.13 | 0.4211 | 1120.9 | 265.4 | |
| 1.24 | 3.00 | 0.68 | 1.66 | -17.14 | 250.06 | 11.45 | 205.08 | 0.4493 | 952.0 | 747.5 | |
| 0.53 | -16.00 | 0.29 | -16.00 | -15.13 | 249.69 | 11.08 | 206.43 | 0.4185 | 1026.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -17.62 | 249.67 | 11.06 | 203.87 | 0.4536 | 568.0 | 398.5 | |
| 3.44 | -16.00 | 1.87 | -16.00 | -15.00 | 249.46 | 10.85 | 206.10 | 0.4150 | 1072.7 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.19 | -16.79 | 249.37 | 10.75 | 204.07 | 0.4399 | 567.0 | 521.3 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -15.87 | 249.06 | 10.45 | 204.36 | 0.4247 | -649.0 | -554.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -17.60 | 248.93 | 10.32 | 202.46 | 0.4488 | -650.0 | -410.1 | |
| 3.97 | 15.27 | 2.17 | 8.32 | -15.60 | 248.70 | 10.09 | 203.88 | 0.4185 | -785.6 | -480.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -14.68 | 248.44 | 9.82 | 204.25 | 0.4035 | 696.0 | 400.9 | |
| 5.83 | -24.00 | 3.17 | -24.00 | -15.56 | 248.41 | 9.80 | 203.31 | 0.4161 | -953.9 | 999999 | |
| 8.92 | 19.25 | 4.92 | 10.62 | -17.39 | 248.25 | 9.64 | 201.29 | 0.4418 | -886.2 | -592.1 | |
| 2.30 | 7.77 | 1.25 | 4.22 | -15.45 | 247.97 | 9.35 | 202.46 | 0.4118 | -1008.9 | -708.7 | |
| 1.32 | 3.62 | 0.73 | 1.99 | -16.95 | 248.00 | 9.39 | 201.17 | 0.4341 | -921.1 | -706.4 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -15.15 | 247.38 | 8.77 | 201.47 | 0.4038 | -683.0 | -490.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -16.77 | 246.98 | 8.36 | 199.18 | 0.4257 | -901.0 | -789.5 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -14.94 | 246.87 | 8.26 | 200.51 | 0.3978 | -698.0 | -612.9 | |
| 0.00 | 2.91 | 0.00 | 1.57 | -14.45 | 246.79 | 8.18 | 200.77 | 0.3901 | -794.0 | -602.0 | |
| 3.18 | 6.00 | 1.74 | 3.29 | -17.16 | 246.77 | 8.16 | 198.44 | 0.4305 | -878.6 | -678.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.90 | 246.68 | 8.07 | 200.11 | 0.3962 | -885.0 | -738.8 | |
| 3.80 | 51.29 | 2.05 | 27.74 | -15.42 | 246.61 | 7.99 | 199.49 | 0.4036 | -706.8 | -620.2 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -16.60 | 246.59 | 7.98 | 198.49 | 0.4212 | -878.0 | -793.1 | |
| 0.26 | -36.00 | 0.14 | -36.00 | -15.23 | 246.51 | 7.89 | 199.42 | 0.4001 | -787.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.90 | 246.40 | 7.78 | 200.36 | 0.3795 | 607.0 | 518.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.74 | 246.36 | 7.75 | 200.43 | 0.3768 | -251.0 | -225.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.92 | 246.45 | 7.83 | 197.93 | 0.4254 | -757.0 | -643.0 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -14.86 | 246.27 | 7.66 | 199.20 | 0.3934 | -990.0 | -797.5 | |
| 0.00 | 2.47 | 0.00 | 1.35 | -16.95 | 246.19 | 7.58 | 197.36 | 0.4246 | -914.0 | -689.1 | |
| 22.87 | -36.00 | 12.37 | -36.00 | -15.58 | 246.11 | 7.50 | 198.23 | 0.4034 | -1136.5 | 999999 | |
| 2.65 | 4.41 | 1.42 | 2.37 | -14.86 | 245.99 | 7.38 | 198.54 | 0.3919 | -1064.8 | -805.4 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -14.87 | 244.71 | 6.09 | 195.48 | 0.3861 | 681.0 | 604.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -14.93 | 244.12 | 5.50 | 194.00 | 0.3845 | 918.0 | 788.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
