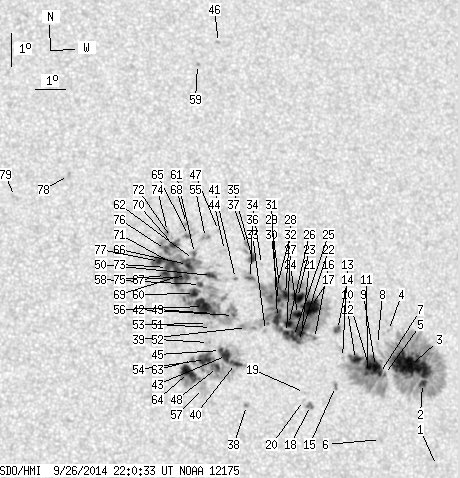

SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 316.45 | 1190.86 | 172.14 | 649.44 | 14.91 | 262.16 | 23.55 | 291.48 | 0.4167 | -7.1 | -66.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.64 | 10.50 | 266.57 | 27.95 | 279.41 | 0.4691 | -675.0 | -510.2 | |
| 4.24 | 396.83 | 2.38 | 221.51 | 13.00 | 266.36 | 27.74 | 284.75 | 0.4710 | -969.7 | -359.8 | |
| 58.44 | -2.00 | 32.71 | -2.00 | 13.56 | 266.01 | 27.40 | 286.07 | 0.4674 | -1124.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 14.66 | 265.39 | 26.77 | 288.67 | 0.4619 | -741.0 | -616.8 | |
| 0.88 | -2.00 | 0.49 | -2.00 | 13.34 | 265.08 | 26.47 | 285.98 | 0.4529 | -707.1 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.22 | 11.39 | 264.73 | 26.11 | 281.79 | 0.4426 | -510.0 | -425.9 | |
| 2.91 | -2.00 | 1.62 | -2.00 | 13.38 | 264.91 | 26.30 | 286.14 | 0.4506 | -969.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 14.26 | 264.95 | 26.34 | 288.02 | 0.4541 | -606.0 | -502.1 | |
| 10.77 | -2.00 | 5.97 | -2.00 | 13.60 | 264.80 | 26.19 | 286.66 | 0.4496 | -1104.7 | 999999 | |
| 8.56 | -2.00 | 4.74 | -2.00 | 13.67 | 264.57 | 25.95 | 286.93 | 0.4464 | -1214.0 | 999999 | |
| 3.18 | -2.00 | 1.76 | -2.00 | 13.43 | 264.51 | 25.89 | 286.43 | 0.4446 | -1229.0 | 999999 | |
| 8.39 | -2.00 | 4.62 | -2.00 | 13.84 | 264.14 | 25.53 | 287.52 | 0.4406 | -934.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 13.93 | 263.71 | 25.09 | 287.92 | 0.4344 | -673.0 | -451.1 | |
| 3.00 | 5.12 | 1.65 | 2.82 | 14.78 | 263.64 | 25.02 | 289.87 | 0.4367 | 881.2 | 649.4 | |
| 0.00 | 2.91 | 0.00 | 1.59 | 13.06 | 263.37 | 24.76 | 286.12 | 0.4264 | -923.0 | -761.7 | |
| 0.62 | 312.35 | 0.34 | 170.21 | 14.55 | 262.82 | 24.21 | 289.82 | 0.4237 | 608.7 | -330.4 | |
| 21.54 | -16.00 | 11.79 | -16.00 | 15.49 | 262.80 | 24.19 | 291.98 | 0.4276 | -1156.0 | 999999 | |
| 1.41 | 4.59 | 0.77 | 2.49 | 12.53 | 262.47 | 23.85 | 285.29 | 0.4110 | 828.4 | 652.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 12.93 | 262.31 | 23.69 | 286.33 | 0.4098 | 550.0 | 393.1 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 12.69 | 262.25 | 23.63 | 285.79 | 0.4082 | 734.0 | 547.5 | |
| 2.91 | -16.00 | 1.59 | -16.00 | 14.72 | 262.40 | 23.79 | 290.48 | 0.4182 | 805.0 | 999999 | |
| 0.26 | -16.00 | 0.14 | -16.00 | 14.48 | 262.27 | 23.66 | 290.01 | 0.4153 | 847.3 | 999999 | |
| 9.36 | -16.00 | 5.11 | -16.00 | 15.82 | 262.40 | 23.78 | 292.99 | 0.4233 | -1147.3 | 999999 | |
| 4.94 | -16.00 | 2.70 | -16.00 | 15.30 | 262.34 | 23.72 | 291.86 | 0.4199 | -1373.9 | 999999 | |
| 3.71 | -16.00 | 2.02 | -16.00 | 14.64 | 262.12 | 23.51 | 290.48 | 0.4137 | 1004.7 | 999999 | |
| 4.41 | -16.00 | 2.40 | -16.00 | 15.01 | 261.99 | 23.38 | 291.43 | 0.4135 | 719.9 | 999999 | |
| 2.56 | -16.00 | 1.39 | -16.00 | 14.77 | 261.90 | 23.28 | 290.94 | 0.4110 | 1079.7 | 999999 | |
| 4.15 | -16.00 | 2.26 | -16.00 | 15.93 | 262.00 | 23.39 | 293.52 | 0.4181 | -953.5 | 999999 | |
| 1.68 | -16.00 | 0.91 | -16.00 | 16.15 | 261.83 | 23.21 | 294.16 | 0.4167 | -748.2 | 999999 | |
| 1.50 | -16.00 | 0.82 | -16.00 | 15.76 | 261.74 | 23.13 | 293.33 | 0.4135 | -1174.0 | 999999 | |
| 9.00 | -16.00 | 4.89 | -16.00 | 15.24 | 261.65 | 23.03 | 292.21 | 0.4095 | -1140.7 | 999999 | |
| 1.85 | -16.00 | 1.01 | -16.00 | 16.27 | 261.77 | 23.16 | 294.49 | 0.4166 | -701.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 14.87 | 261.20 | 22.59 | 291.64 | 0.4011 | -937.0 | -812.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 16.88 | 261.31 | 22.69 | 296.23 | 0.4133 | -587.0 | -352.0 | |
| 3.53 | 8.48 | 1.92 | 4.60 | 17.07 | 261.03 | 22.41 | 296.92 | 0.4105 | -1028.7 | -645.2 | |
| 1.77 | -16.00 | 0.96 | -16.00 | 16.47 | 260.88 | 22.27 | 295.66 | 0.4049 | 749.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.58 | 17.51 | 260.88 | 22.26 | 298.04 | 0.4111 | -900.0 | -732.8 | |
| 0.00 | 2.12 | 0.00 | 1.13 | 12.63 | 260.34 | 21.72 | 286.65 | 0.3786 | 860.0 | 741.4 | |
| 0.00 | 11.39 | 0.00 | 6.13 | 14.99 | 260.57 | 21.96 | 292.40 | 0.3924 | -358.0 | -246.1 | |
| 5.12 | 97.38 | 2.74 | 51.95 | 13.92 | 260.10 | 21.48 | 290.09 | 0.3801 | 963.4 | 469.0 | |
| 0.00 | 1.68 | 0.00 | 0.90 | 16.49 | 260.38 | 21.76 | 296.16 | 0.3978 | 568.0 | 468.0 | |
| 0.88 | 251.61 | 0.47 | 134.44 | 15.37 | 260.18 | 21.57 | 293.65 | 0.3886 | 531.6 | 526.9 | |
| 8.21 | -40.00 | 4.39 | -40.00 | 14.17 | 259.82 | 21.21 | 290.94 | 0.3772 | 1090.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 17.36 | 260.11 | 21.50 | 298.42 | 0.3994 | 612.0 | 454.5 | |
| 1.68 | -40.00 | 0.90 | -40.00 | 14.33 | 259.64 | 21.02 | 291.49 | 0.3752 | 998.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.89 | 23.78 | 260.88 | 22.27 | 310.71 | 0.4594 | -696.0 | -574.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 17.98 | 259.99 | 21.37 | 299.96 | 0.4018 | 639.0 | 489.4 | |
| 2.47 | -40.00 | 1.32 | -40.00 | 13.82 | 259.49 | 20.87 | 290.29 | 0.3705 | 1025.4 | 999999 | |
| 2.38 | -42.00 | 1.28 | -42.00 | 15.46 | 259.52 | 20.91 | 294.43 | 0.3794 | 842.6 | 999999 | |
| 4.15 | 10.68 | 2.23 | 5.74 | 16.62 | 259.58 | 20.97 | 297.19 | 0.3872 | 789.7 | 275.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 15.04 | 259.41 | 20.80 | 293.47 | 0.3754 | 812.0 | 657.5 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 14.59 | 259.26 | 20.65 | 292.45 | 0.3709 | 876.0 | 794.1 | |
| 0.00 | 3.44 | 0.00 | 1.84 | 15.17 | 259.29 | 20.68 | 293.90 | 0.3744 | 922.0 | 776.5 | |
| 10.77 | -40.00 | 5.73 | -40.00 | 14.08 | 259.12 | 20.50 | 291.25 | 0.3661 | 1103.1 | 999999 | |
| 0.00 | 5.30 | 0.00 | 2.85 | 17.78 | 259.52 | 20.91 | 299.99 | 0.3940 | -557.0 | -507.3 | |
| 18.63 | -42.00 | 9.95 | -42.00 | 15.69 | 259.21 | 20.60 | 295.28 | 0.3762 | 1110.5 | 999999 | |
| 0.00 | 7.68 | 0.00 | 4.08 | 13.21 | 258.97 | 20.36 | 289.05 | 0.3598 | 613.0 | 477.1 | |
| 2.03 | -42.00 | 1.09 | -42.00 | 16.36 | 259.19 | 20.57 | 296.96 | 0.3799 | 843.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 23.13 | 260.03 | 21.41 | 310.51 | 0.4435 | 707.0 | 624.5 | |
| 5.39 | -42.00 | 2.88 | -42.00 | 16.09 | 258.96 | 20.34 | 296.53 | 0.3749 | 1106.7 | 999999 | |
| 0.88 | -42.00 | 0.47 | -42.00 | 17.31 | 259.09 | 20.48 | 299.34 | 0.3848 | 581.0 | 999999 | |
| 0.79 | -42.00 | 0.43 | -42.00 | 17.13 | 259.04 | 20.42 | 298.96 | 0.3828 | 580.8 | 999999 | |
| 1.06 | -40.00 | 0.56 | -40.00 | 14.07 | 258.68 | 20.07 | 291.57 | 0.3595 | 1098.9 | 999999 | |
| 13.68 | 27.99 | 7.25 | 14.82 | 13.71 | 258.52 | 19.91 | 290.75 | 0.3553 | 1150.5 | 658.5 | |
| 1.41 | 6.53 | 0.76 | 3.51 | 17.87 | 258.96 | 20.34 | 300.79 | 0.3868 | 755.8 | 389.8 | |
| 10.15 | -42.00 | 5.43 | -42.00 | 16.98 | 258.82 | 20.21 | 298.85 | 0.3788 | 699.4 | 999999 | |
| 4.68 | -42.00 | 2.50 | -42.00 | 16.62 | 258.75 | 20.13 | 298.04 | 0.3753 | 869.4 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.14 | 18.24 | 258.94 | 20.32 | 301.67 | 0.3892 | 785.0 | 612.2 | |
| 14.21 | -42.00 | 7.58 | -42.00 | 16.63 | 258.45 | 19.83 | 298.39 | 0.3711 | 1223.1 | 999999 | |
| 3.97 | -42.00 | 2.12 | -42.00 | 17.61 | 258.42 | 19.81 | 300.79 | 0.3776 | 813.4 | 999999 | |
| 5.83 | -42.00 | 3.11 | -42.00 | 17.04 | 258.32 | 19.71 | 299.51 | 0.3721 | 1036.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 17.83 | 258.38 | 19.77 | 301.35 | 0.3786 | 692.0 | 552.9 | |
| 2.38 | -42.00 | 1.27 | -42.00 | 16.92 | 258.15 | 19.53 | 299.42 | 0.3688 | 1201.6 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.89 | 18.02 | 258.27 | 19.66 | 301.92 | 0.3785 | 818.0 | 693.5 | |
| 7.95 | -42.00 | 4.23 | -42.00 | 16.68 | 258.05 | 19.44 | 298.93 | 0.3658 | 1213.1 | 999999 | |
| 3.00 | -42.00 | 1.60 | -42.00 | 17.47 | 258.14 | 19.53 | 300.77 | 0.3727 | 987.2 | 999999 | |
| 9.18 | -42.00 | 4.89 | -42.00 | 17.11 | 257.90 | 19.29 | 300.18 | 0.3667 | 1072.9 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.31 | 19.86 | 255.17 | 16.55 | 310.48 | 0.3538 | 742.0 | 636.9 | |
| 0.00 | 2.91 | 0.00 | 1.53 | 19.27 | 253.32 | 14.71 | 312.25 | 0.3252 | 772.0 | 573.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
