SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.46 | 0.00 | 8.34 | 7.07 | 207.59 | -31.02 | 87.86 | 0.5137 | 136.7 | 126.9 | |
|
previous
or next observation for the same group /

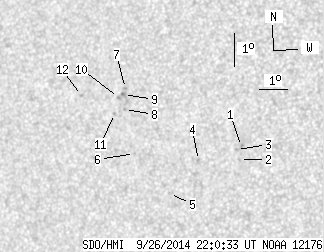

back to the solar disc SDO HMI 2014-09-26 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.84 | 6.67 | 210.46 | -28.15 | 88.79 | 0.4706 | -834.0 | -704.1 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 6.28 | 210.42 | -28.20 | 89.62 | 0.4716 | -714.0 | -580.9 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 6.57 | 210.30 | -28.32 | 88.99 | 0.4732 | -665.0 | -561.8 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 6.17 | 209.01 | -29.61 | 89.70 | 0.4932 | -799.0 | -648.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 5.12 | 208.05 | -30.56 | 91.66 | 0.5087 | -684.0 | -514.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 6.24 | 206.75 | -31.87 | 89.31 | 0.5269 | 708.0 | 591.6 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 8.17 | 206.28 | -32.34 | 85.64 | 0.5331 | 853.0 | 728.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 7.54 | 206.29 | -32.32 | 86.83 | 0.5329 | 797.0 | 679.3 | |
| 0.00 | 2.38 | 0.00 | 1.39 | 7.99 | 206.22 | -32.39 | 85.98 | 0.5339 | 932.0 | 789.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 7.88 | 206.05 | -32.56 | 86.17 | 0.5365 | 742.0 | 696.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 7.40 | 205.95 | -32.67 | 87.08 | 0.5381 | 587.0 | 461.5 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 7.86 | 204.71 | -33.91 | 86.19 | 0.5560 | 717.0 | 581.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
