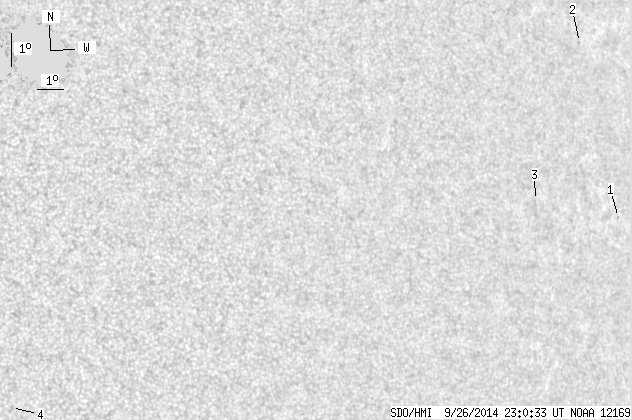

SDO HMI 2014-09-26 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.74 | 0.00 | 1.86 | 7.44 | 280.45 | 42.39 | 272.35 | 0.6636 | 149.8 | 119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.41 | 6.88 | 288.35 | 50.29 | 273.19 | 0.7672 | 464.0 | 434.7 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 12.26 | 287.59 | 49.53 | 280.25 | 0.7577 | -698.0 | -546.6 | |
| 0.00 | 0.53 | 0.00 | 0.38 | 7.72 | 284.67 | 46.60 | 274.09 | 0.7242 | 638.0 | 552.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 2.94 | 264.48 | 26.42 | 262.72 | 0.4499 | 195.0 | 235.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
