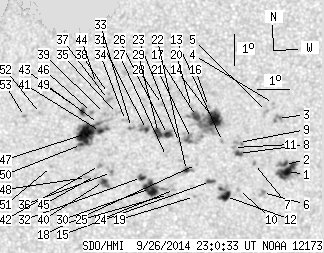

SDO HMI 2014-09-26 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.61 | 296.56 | 59.08 | 162.71 | -16.02 | 248.95 | 10.89 | 204.94 | 0.4308 | -27.9 | 18.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 30.64 | 7.86 | 17.16 | -16.93 | 252.59 | 14.53 | 210.92 | 0.4689 | 952.0 | 544.3 | |
| 2.56 | -1.00 | 1.43 | -1.00 | -16.70 | 252.51 | 14.44 | 211.04 | 0.4652 | 1064.7 | 999999 | |
| 0.00 | 5.21 | 0.00 | 2.88 | -15.19 | 252.17 | 14.11 | 212.25 | 0.4427 | 736.0 | 748.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.70 | 252.01 | 13.95 | 212.58 | 0.4349 | 765.0 | 589.0 | |
| 0.00 | 2.47 | 0.00 | 1.36 | -14.95 | 251.80 | 13.74 | 211.87 | 0.4365 | 795.0 | 658.9 | |
| 0.00 | 3.00 | 0.00 | 1.69 | -17.60 | 251.86 | 13.80 | 208.91 | 0.4722 | 901.0 | 770.2 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -16.64 | 251.53 | 13.47 | 209.38 | 0.4568 | 882.0 | 804.1 | |
| 2.47 | 4.15 | 1.37 | 2.30 | -16.29 | 250.99 | 12.93 | 208.77 | 0.4481 | 943.9 | 706.9 | |
| 0.00 | 3.53 | 0.00 | 1.95 | -15.93 | 250.97 | 12.91 | 209.13 | 0.4430 | 815.0 | 816.0 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -17.48 | 251.07 | 13.01 | 207.64 | 0.4648 | 693.0 | 534.8 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -16.09 | 250.82 | 12.76 | 208.67 | 0.4440 | 874.0 | 775.9 | |
| 6.71 | 14.30 | 3.75 | 7.99 | -17.70 | 250.67 | 12.61 | 206.69 | 0.4649 | 904.6 | 616.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -15.89 | 250.45 | 12.39 | 208.21 | 0.4385 | 956.0 | 751.2 | |
| 14.30 | 53.24 | 7.82 | 29.12 | -15.16 | 250.16 | 12.09 | 208.45 | 0.4263 | 1111.5 | 545.6 | |
| 1.94 | 3.71 | 1.08 | 2.06 | -17.19 | 250.15 | 12.09 | 206.25 | 0.4543 | 896.4 | 657.0 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -14.74 | 249.94 | 11.88 | 208.51 | 0.4188 | 920.0 | 743.9 | |
| 4.41 | -14.00 | 2.41 | -14.00 | -15.05 | 249.58 | 11.51 | 207.41 | 0.4205 | 1073.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -16.62 | 249.67 | 11.60 | 205.90 | 0.4430 | 725.0 | 647.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -17.67 | 249.67 | 11.61 | 204.86 | 0.4578 | 589.0 | 419.3 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -14.75 | 249.40 | 11.34 | 207.39 | 0.4150 | 835.0 | 641.2 | |
| 0.00 | 14.13 | 0.00 | 7.74 | -15.76 | 249.46 | 11.39 | 206.39 | 0.4296 | -409.0 | -414.2 | |
| 2.03 | 4.24 | 1.12 | 2.34 | -16.81 | 249.36 | 11.29 | 205.11 | 0.4436 | 807.8 | 634.8 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -15.88 | 249.08 | 11.02 | 205.51 | 0.4287 | -705.0 | -489.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -17.42 | 249.01 | 10.95 | 203.84 | 0.4501 | -231.0 | -241.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -17.58 | 248.83 | 10.76 | 203.34 | 0.4512 | -247.0 | -243.5 | |
| 3.88 | 12.80 | 2.12 | 6.98 | -15.61 | 248.69 | 10.62 | 204.98 | 0.4222 | -747.4 | -568.2 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -16.33 | 248.69 | 10.63 | 204.27 | 0.4325 | -382.0 | -311.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.63 | 248.48 | 10.42 | 205.59 | 0.4068 | 702.0 | 509.0 | |
| 5.12 | -26.00 | 2.79 | -26.00 | -15.57 | 248.40 | 10.34 | 204.42 | 0.4197 | -946.2 | 999999 | |
| 13.24 | 28.08 | 7.32 | 15.50 | -17.37 | 248.24 | 10.18 | 202.38 | 0.4446 | -909.0 | -560.1 | |
| 1.59 | 7.68 | 0.86 | 4.18 | -15.43 | 248.01 | 9.95 | 203.75 | 0.4152 | -976.8 | -688.0 | |
| 2.83 | -30.00 | 1.56 | -30.00 | -17.00 | 247.93 | 9.87 | 202.10 | 0.4375 | -865.7 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.29 | -15.36 | 247.53 | 9.47 | 202.80 | 0.4111 | -604.0 | -582.9 | |
| 0.00 | 2.38 | 0.00 | 1.29 | -15.13 | 247.33 | 9.27 | 202.59 | 0.4065 | -453.0 | -328.7 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -14.89 | 247.07 | 9.01 | 202.24 | 0.4015 | -629.0 | -538.5 | |
| 0.00 | 2.56 | 0.00 | 1.40 | -16.81 | 246.97 | 8.90 | 200.28 | 0.4293 | -876.0 | -709.8 | |
| 0.00 | 2.91 | 0.00 | 1.57 | -14.43 | 246.77 | 8.71 | 202.01 | 0.3929 | -839.0 | -690.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.24 | 246.76 | 8.70 | 202.19 | 0.3899 | -809.0 | -688.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.89 | 246.66 | 8.60 | 201.33 | 0.3989 | -832.0 | -706.2 | |
| 2.47 | 7.68 | 1.36 | 4.22 | -17.11 | 246.72 | 8.66 | 199.54 | 0.4323 | -820.6 | -538.9 | |
| 2.30 | 51.74 | 1.24 | 28.02 | -15.47 | 246.56 | 8.50 | 200.57 | 0.4070 | -751.1 | -581.4 | |
| 0.00 | 2.65 | 0.00 | 1.45 | -16.58 | 246.57 | 8.51 | 199.65 | 0.4237 | -953.0 | -768.8 | |
| 0.62 | -41.00 | 0.33 | -41.00 | -15.21 | 246.49 | 8.42 | 200.64 | 0.4027 | -807.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -13.91 | 246.37 | 8.31 | 201.61 | 0.3827 | 716.0 | 529.1 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -16.90 | 246.46 | 8.40 | 199.15 | 0.4279 | -868.0 | -631.1 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -14.84 | 246.25 | 8.19 | 200.44 | 0.3960 | -953.0 | -784.9 | |
| 23.22 | -41.00 | 12.57 | -41.00 | -15.52 | 246.12 | 8.06 | 199.54 | 0.4055 | -1074.8 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.35 | -16.96 | 246.18 | 8.12 | 198.50 | 0.4274 | -835.0 | -690.4 | |
| 2.38 | 4.50 | 1.28 | 2.43 | -14.81 | 245.97 | 7.91 | 199.82 | 0.3939 | -1004.2 | -764.5 | |
| 1.50 | -41.00 | 0.81 | -41.00 | -15.88 | 245.98 | 7.91 | 198.92 | 0.4101 | -877.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -16.58 | 245.06 | 6.99 | 196.35 | 0.4163 | -765.0 | -590.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -14.85 | 244.65 | 6.59 | 196.69 | 0.3879 | 699.0 | 529.8 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -14.94 | 244.16 | 6.09 | 195.43 | 0.3871 | 1020.0 | 789.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
