SDO HMI 2014-09-27 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.43 | 294.47 | 62.99 | 161.89 | -16.04 | 248.90 | 11.39 | 205.91 | 0.4344 | 12.0 | 11.2 | |
|
previous
or next observation for the same group /

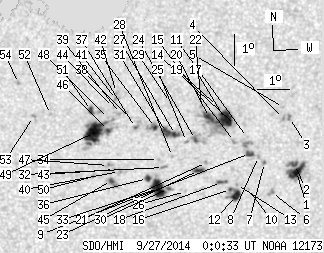

back to the solar disc SDO HMI 2014-09-27 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.63 | 26.58 | 7.10 | 14.93 | -16.96 | 252.66 | 15.14 | 211.95 | 0.4741 | 936.7 | 645.8 | |
| 3.00 | -1.00 | 1.68 | -1.00 | -16.73 | 252.57 | 15.06 | 212.08 | 0.4705 | 1072.6 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.52 | -15.18 | 252.29 | 14.78 | 213.48 | 0.4482 | 831.0 | 700.6 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -15.21 | 252.10 | 14.59 | 213.10 | 0.4469 | 852.0 | 723.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.85 | 252.08 | 14.57 | 213.52 | 0.4421 | 750.0 | 630.1 | |
| 0.00 | 3.62 | 0.00 | 2.04 | -17.62 | 251.90 | 14.38 | 209.90 | 0.4768 | 808.0 | 723.4 | |
| 0.44 | 1.94 | 0.25 | 1.08 | -16.63 | 251.59 | 14.08 | 210.49 | 0.4613 | 836.0 | 747.3 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -16.42 | 251.38 | 13.87 | 210.35 | 0.4570 | 861.0 | 744.5 | |
| 2.91 | 10.51 | 1.62 | 5.83 | -16.32 | 251.08 | 13.57 | 209.93 | 0.4533 | 922.3 | 773.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -17.50 | 251.14 | 13.63 | 208.72 | 0.4695 | 662.0 | 546.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -15.79 | 250.98 | 13.47 | 210.36 | 0.4454 | 799.0 | 545.7 | |
| 6.18 | 15.36 | 3.46 | 8.60 | -17.69 | 250.76 | 13.25 | 207.86 | 0.4693 | 968.9 | 636.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -17.32 | 250.74 | 13.23 | 208.19 | 0.4642 | 776.0 | 624.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -15.39 | 250.57 | 13.06 | 210.06 | 0.4368 | -11.0 | 7.0 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -15.91 | 250.57 | 13.06 | 209.46 | 0.4439 | 816.0 | 671.9 | |
| 0.79 | -12.00 | 0.44 | -12.00 | -17.48 | 250.55 | 13.04 | 207.70 | 0.4650 | 971.2 | 999999 | |
| 16.51 | 47.59 | 9.06 | 26.10 | -15.18 | 250.24 | 12.73 | 209.67 | 0.4314 | 1075.1 | 504.1 | |
| 1.85 | 4.33 | 1.03 | 2.41 | -17.24 | 250.25 | 12.74 | 207.39 | 0.4596 | 809.3 | 599.3 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -14.76 | 249.96 | 12.45 | 209.63 | 0.4234 | 628.0 | 595.2 | |
| 5.39 | -17.00 | 2.95 | -17.00 | -15.10 | 249.73 | 12.21 | 208.76 | 0.4264 | 1102.6 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -16.57 | 249.72 | 12.21 | 207.11 | 0.4466 | 919.0 | 703.7 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -14.74 | 249.45 | 11.94 | 208.63 | 0.4193 | 855.0 | 712.2 | |
| 3.27 | 6.36 | 1.81 | 3.52 | -16.83 | 249.48 | 11.97 | 206.39 | 0.4484 | 829.2 | 617.1 | |
| 1.41 | 11.04 | 0.78 | 6.06 | -15.81 | 249.32 | 11.81 | 207.16 | 0.4332 | -678.8 | -380.7 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -15.87 | 249.04 | 11.53 | 206.54 | 0.4320 | -517.0 | -478.6 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -17.51 | 249.10 | 11.59 | 205.00 | 0.4554 | -376.0 | -261.4 | |
| 3.18 | 12.19 | 1.74 | 6.66 | -15.63 | 248.67 | 11.16 | 206.06 | 0.4261 | -817.6 | -630.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -16.34 | 248.62 | 11.11 | 205.21 | 0.4358 | -552.0 | -343.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.59 | 248.46 | 10.95 | 206.77 | 0.4098 | 670.0 | 511.3 | |
| 1.06 | 28.08 | 0.59 | 15.54 | -17.39 | 248.55 | 11.04 | 204.05 | 0.4503 | -601.0 | -545.6 | |
| 5.30 | -27.00 | 2.89 | -27.00 | -15.56 | 248.38 | 10.87 | 205.55 | 0.4231 | -949.5 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.41 | -16.70 | 248.35 | 10.84 | 204.32 | 0.4391 | -691.0 | -446.1 | |
| 15.81 | -30.00 | 8.75 | -30.00 | -17.39 | 248.23 | 10.72 | 203.43 | 0.4481 | -895.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.43 | 248.18 | 10.66 | 204.24 | 0.4342 | 454.0 | 351.9 | |
| 1.68 | 6.98 | 0.91 | 3.80 | -15.38 | 248.03 | 10.51 | 204.99 | 0.4182 | -905.8 | -711.1 | |
| 2.47 | -30.00 | 1.36 | -30.00 | -17.05 | 247.86 | 10.35 | 203.02 | 0.4410 | -941.5 | 999999 | |
| 0.35 | 4.42 | 0.19 | 2.40 | -15.37 | 247.39 | 9.88 | 203.67 | 0.4138 | -830.5 | -248.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.07 | 247.22 | 9.71 | 203.60 | 0.4084 | -668.0 | -511.7 | |
| 0.00 | 5.30 | 0.00 | 2.87 | -14.90 | 246.90 | 9.39 | 203.07 | 0.4039 | -844.0 | -603.3 | |
| 0.00 | 2.56 | 0.00 | 1.41 | -16.80 | 246.95 | 9.44 | 201.41 | 0.4320 | -774.0 | -616.9 | |
| 0.00 | 2.38 | 0.00 | 1.29 | -14.45 | 246.75 | 9.24 | 203.20 | 0.3963 | -849.0 | -686.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -14.22 | 246.74 | 9.23 | 203.42 | 0.3929 | -696.0 | -597.0 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -16.73 | 246.79 | 9.28 | 201.13 | 0.4301 | -829.0 | -634.4 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -14.71 | 246.67 | 9.16 | 202.76 | 0.3996 | -756.0 | -574.5 | |
| 1.94 | 6.71 | 1.07 | 3.69 | -17.09 | 246.71 | 9.20 | 200.66 | 0.4349 | -856.0 | -493.1 | |
| 1.59 | 49.80 | 0.86 | 27.01 | -15.45 | 246.54 | 9.03 | 201.76 | 0.4098 | -884.1 | -594.9 | |
| 0.00 | 3.09 | 0.00 | 1.69 | -16.59 | 246.59 | 9.08 | 200.84 | 0.4270 | -958.0 | -752.7 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -15.06 | 246.52 | 9.01 | 202.09 | 0.4039 | -737.0 | -547.1 | |
| 24.11 | -46.00 | 13.07 | -46.00 | -15.50 | 246.10 | 8.59 | 200.74 | 0.4081 | -1056.8 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.11 | -16.94 | 246.13 | 8.62 | 199.58 | 0.4297 | -864.0 | -683.0 | |
| 2.56 | 7.24 | 1.38 | 3.91 | -14.79 | 245.98 | 8.47 | 201.13 | 0.3967 | -983.1 | -742.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.89 | 244.70 | 7.18 | 198.07 | 0.3914 | 664.0 | 560.0 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -14.95 | 244.17 | 6.65 | 196.77 | 0.3897 | 922.0 | 686.1 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.88 | 243.67 | 6.16 | 196.38 | 0.3708 | 785.0 | 668.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
