SDO HMI 2014-09-27 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 295.29 | 1172.46 | 161.93 | 645.03 | 14.91 | 262.23 | 24.72 | 290.70 | 0.4338 | 24.0 | -75.9 | |
|
previous
or next observation for the same group /

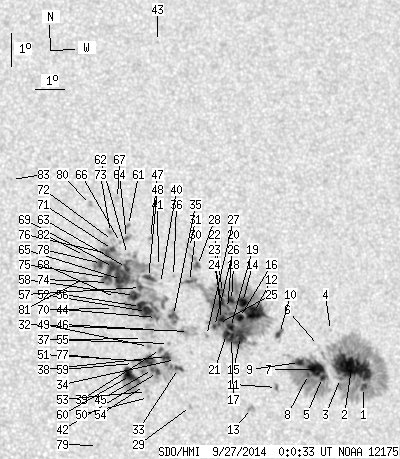

back to the solar disc SDO HMI 2014-09-27 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.89 | 400.54 | 2.20 | 225.83 | 12.96 | 266.37 | 28.86 | 284.31 | 0.4874 | -940.1 | -371.8 | |
| 57.84 | -1.00 | 32.71 | -1.00 | 13.59 | 266.03 | 28.52 | 285.70 | 0.4840 | -1076.8 | 999999 | |
| 0.71 | -1.00 | 0.40 | -1.00 | 13.28 | 265.60 | 28.09 | 285.22 | 0.4769 | -954.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 14.75 | 265.45 | 27.94 | 288.30 | 0.4791 | -661.0 | -566.0 | |
| 2.83 | -1.00 | 1.58 | -1.00 | 13.34 | 264.98 | 27.47 | 285.59 | 0.4679 | -957.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 14.32 | 264.97 | 27.45 | 287.63 | 0.4707 | -767.0 | -584.4 | |
| 16.34 | -1.00 | 9.14 | -1.00 | 13.60 | 264.80 | 27.29 | 286.19 | 0.4660 | -1152.0 | 999999 | |
| 1.06 | -1.00 | 0.59 | -1.00 | 13.46 | 264.51 | 27.00 | 286.02 | 0.4612 | -1220.8 | 999999 | |
| 5.56 | -1.00 | 3.10 | -1.00 | 13.84 | 264.24 | 26.73 | 286.95 | 0.4585 | -964.4 | 999999 | |
| 3.00 | 5.21 | 1.67 | 2.89 | 14.75 | 263.67 | 26.15 | 289.18 | 0.4532 | 818.1 | 645.1 | |
| 0.88 | 2.38 | 0.49 | 1.32 | 13.13 | 263.36 | 25.85 | 285.78 | 0.4431 | -876.5 | -771.1 | |
| 21.02 | 309.85 | 11.61 | 170.34 | 15.43 | 262.86 | 25.34 | 291.11 | 0.4442 | -1087.9 | -354.4 | |
| 0.00 | 3.97 | 0.00 | 2.18 | 12.54 | 262.44 | 24.93 | 284.83 | 0.4275 | 793.0 | 639.7 | |
| 6.71 | -12.00 | 3.70 | -12.00 | 15.75 | 262.52 | 25.01 | 292.02 | 0.4407 | -1123.8 | 999999 | |
| 8.83 | -12.00 | 4.85 | -12.00 | 14.73 | 262.32 | 24.81 | 289.88 | 0.4333 | 394.7 | 999999 | |
| 4.24 | -12.00 | 2.33 | -12.00 | 15.31 | 262.36 | 24.85 | 291.14 | 0.4363 | -1335.8 | 999999 | |
| 3.62 | -12.00 | 1.98 | -12.00 | 14.71 | 262.01 | 24.50 | 290.03 | 0.4287 | 1112.0 | 999999 | |
| 3.36 | -12.00 | 1.84 | -12.00 | 15.83 | 262.15 | 24.64 | 292.44 | 0.4358 | -921.2 | 999999 | |
| 3.97 | -12.00 | 2.18 | -12.00 | 15.02 | 262.01 | 24.50 | 290.72 | 0.4300 | 663.9 | 999999 | |
| 1.15 | -12.00 | 0.63 | -12.00 | 15.60 | 261.98 | 24.47 | 292.03 | 0.4322 | -1152.2 | 999999 | |
| 4.15 | -12.00 | 2.27 | -12.00 | 14.81 | 261.85 | 24.34 | 290.35 | 0.4268 | 971.9 | 999999 | |
| 3.27 | -12.00 | 1.79 | -12.00 | 16.09 | 261.88 | 24.36 | 293.19 | 0.4330 | -735.8 | 999999 | |
| 3.00 | -12.00 | 1.64 | -12.00 | 15.28 | 261.74 | 24.23 | 291.47 | 0.4271 | -1264.1 | 999999 | |
| 4.86 | -12.00 | 2.66 | -12.00 | 15.79 | 261.80 | 24.29 | 292.58 | 0.4305 | -1135.4 | 999999 | |
| 1.85 | -12.00 | 1.01 | -12.00 | 15.16 | 261.62 | 24.11 | 291.28 | 0.4249 | -1032.2 | 999999 | |
| 1.68 | -12.00 | 0.92 | -12.00 | 15.07 | 261.47 | 23.96 | 291.19 | 0.4224 | -1043.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.96 | 14.82 | 261.17 | 23.66 | 290.79 | 0.4167 | -864.0 | -771.7 | |
| 2.30 | 8.74 | 1.26 | 4.78 | 16.95 | 261.13 | 23.62 | 295.65 | 0.4270 | -911.5 | -671.2 | |
| 0.00 | 1.68 | 0.00 | 0.90 | 12.70 | 260.40 | 22.89 | 286.17 | 0.3968 | 798.0 | 656.9 | |
| 2.03 | -12.00 | 1.11 | -12.00 | 16.48 | 260.80 | 23.28 | 294.86 | 0.4195 | 549.5 | 999999 | |
| 0.00 | 4.50 | 0.00 | 2.47 | 17.51 | 260.93 | 23.42 | 297.04 | 0.4274 | -786.0 | -509.1 | |
| 0.00 | 17.04 | 0.00 | 9.24 | 14.97 | 260.58 | 23.07 | 291.54 | 0.4086 | -319.0 | -193.8 | |
| 2.47 | 67.55 | 1.33 | 36.27 | 13.86 | 260.12 | 22.61 | 289.20 | 0.3969 | 878.1 | 605.9 | |
| 0.00 | 1.85 | 0.00 | 1.00 | 14.14 | 260.05 | 22.54 | 289.93 | 0.3970 | 23.0 | 120.9 | |
| 4.33 | 247.16 | 2.34 | 132.99 | 15.47 | 260.13 | 22.62 | 293.06 | 0.4045 | 653.9 | 518.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 16.66 | 260.27 | 22.76 | 295.68 | 0.4130 | -782.0 | -587.8 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 14.63 | 259.87 | 22.35 | 291.25 | 0.3965 | 442.0 | 346.1 | |
| 5.03 | -33.00 | 2.71 | -33.00 | 14.24 | 259.76 | 22.24 | 290.38 | 0.3931 | 1026.9 | 999999 | |
| 1.06 | -33.00 | 0.57 | -33.00 | 14.46 | 259.58 | 22.07 | 291.05 | 0.3915 | 919.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 16.46 | 259.81 | 22.30 | 295.63 | 0.4053 | 518.0 | 261.1 | |
| 0.00 | 2.03 | 0.00 | 1.10 | 16.98 | 259.80 | 22.29 | 296.83 | 0.4083 | -390.0 | -355.5 | |
| 2.47 | -33.00 | 1.33 | -33.00 | 13.77 | 259.41 | 21.90 | 289.45 | 0.3858 | 975.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 23.92 | 260.87 | 23.36 | 309.76 | 0.4735 | -653.0 | -534.1 | |
| 1.41 | -35.00 | 0.76 | -35.00 | 15.44 | 259.55 | 22.04 | 293.43 | 0.3959 | 783.5 | 999999 | |
| 1.24 | -33.00 | 0.66 | -33.00 | 13.87 | 259.25 | 21.74 | 289.80 | 0.3838 | 1068.9 | 999999 | |
| 0.00 | 9.71 | 0.00 | 5.22 | 15.08 | 259.34 | 21.83 | 292.74 | 0.3910 | 882.0 | 737.4 | |
| 0.00 | 1.59 | 0.00 | 0.86 | 17.85 | 259.64 | 22.13 | 298.93 | 0.4115 | -925.0 | -765.0 | |
| 4.06 | 11.57 | 2.19 | 6.25 | 16.67 | 259.43 | 21.91 | 296.43 | 0.4010 | 681.3 | 46.5 | |
| 0.00 | 1.77 | 0.00 | 0.95 | 14.57 | 259.19 | 21.68 | 291.60 | 0.3862 | 968.0 | 735.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 13.03 | 259.04 | 21.52 | 287.81 | 0.3771 | 219.0 | 220.4 | |
| 10.42 | -33.00 | 5.58 | -33.00 | 14.12 | 259.11 | 21.60 | 290.53 | 0.3828 | 1090.7 | 999999 | |
| 8.92 | -35.00 | 4.80 | -35.00 | 15.64 | 259.24 | 21.73 | 294.16 | 0.3924 | 1064.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.94 | 13.22 | 258.99 | 21.48 | 288.31 | 0.3770 | 777.0 | 607.2 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 13.40 | 258.94 | 21.43 | 288.82 | 0.3771 | 613.0 | 465.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 14.82 | 259.01 | 21.50 | 292.36 | 0.3848 | 786.0 | 651.0 | |
| 6.62 | -35.00 | 3.56 | -35.00 | 15.80 | 259.05 | 21.54 | 294.70 | 0.3906 | 1148.1 | 999999 | |
| 2.47 | -35.00 | 1.33 | -35.00 | 16.37 | 259.12 | 21.61 | 296.02 | 0.3949 | 812.4 | 999999 | |
| 7.51 | -35.00 | 4.03 | -35.00 | 16.14 | 258.89 | 21.38 | 295.67 | 0.3902 | 1062.2 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.60 | 14.08 | 258.64 | 21.13 | 290.78 | 0.3755 | 1083.0 | 751.7 | |
| 13.07 | 30.73 | 6.97 | 16.38 | 13.72 | 258.50 | 20.99 | 289.95 | 0.3719 | 1093.2 | 515.9 | |
| 0.44 | 2.12 | 0.24 | 1.15 | 18.28 | 258.95 | 21.44 | 300.57 | 0.4048 | 628.6 | 526.1 | |
| 0.00 | 2.03 | 0.00 | 1.10 | 17.40 | 258.81 | 21.29 | 298.71 | 0.3968 | 535.0 | 419.6 | |
| 6.53 | -35.00 | 3.52 | -35.00 | 17.00 | 258.72 | 21.21 | 297.87 | 0.3931 | 734.3 | 999999 | |
| 0.97 | 4.06 | 0.52 | 2.20 | 17.89 | 258.83 | 21.32 | 299.80 | 0.4005 | 738.7 | 548.0 | |
| 19.25 | -35.00 | 10.34 | -35.00 | 16.64 | 258.51 | 21.00 | 297.23 | 0.3878 | 1111.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 17.77 | 258.62 | 21.10 | 299.77 | 0.3967 | 721.0 | 590.9 | |
| 0.00 | 2.91 | 0.00 | 1.58 | 19.12 | 258.69 | 21.18 | 302.71 | 0.4074 | 814.0 | 474.0 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 16.11 | 258.25 | 20.74 | 296.18 | 0.3807 | 729.0 | 661.4 | |
| 11.30 | -35.00 | 6.07 | -35.00 | 17.02 | 258.29 | 20.78 | 298.35 | 0.3871 | 1046.8 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 15.77 | 258.15 | 20.64 | 295.46 | 0.3773 | 906.0 | 763.0 | |
| 2.65 | -35.00 | 1.42 | -35.00 | 17.57 | 258.32 | 20.81 | 299.61 | 0.3912 | 882.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.19 | 17.85 | 258.35 | 20.84 | 300.21 | 0.3936 | 460.0 | 554.0 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 18.09 | 258.32 | 20.81 | 300.81 | 0.3948 | 821.0 | 703.7 | |
| 0.88 | -35.00 | 0.47 | -35.00 | 16.57 | 258.07 | 20.56 | 297.49 | 0.3810 | 1132.8 | 999999 | |
| 5.92 | -35.00 | 3.17 | -35.00 | 16.72 | 258.05 | 20.54 | 297.88 | 0.3818 | 1168.4 | 999999 | |
| 3.44 | -35.00 | 1.85 | -35.00 | 17.46 | 258.14 | 20.63 | 299.53 | 0.3879 | 971.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 14.27 | 257.66 | 20.15 | 292.06 | 0.3618 | 855.0 | 706.8 | |
| 4.68 | -35.00 | 2.51 | -35.00 | 17.16 | 257.90 | 20.39 | 299.08 | 0.3825 | 1063.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 11.66 | 257.24 | 19.73 | 285.17 | 0.3441 | 757.0 | 596.6 | |
| 0.00 | 2.56 | 0.00 | 1.38 | 18.98 | 257.75 | 20.24 | 303.44 | 0.3938 | 779.0 | 666.0 | |
| 0.00 | 4.33 | 0.00 | 2.31 | 16.73 | 257.28 | 19.77 | 298.68 | 0.3709 | 973.0 | 739.2 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 17.43 | 257.36 | 19.85 | 300.30 | 0.3769 | 700.0 | 603.1 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 19.85 | 255.20 | 17.69 | 308.74 | 0.3679 | 778.0 | 679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
