SDO HMI 2014-09-27 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 326.56 | 1718.10 | 170.99 | 899.19 | -11.08 | 239.28 | 2.32 | 186.66 | 0.3237 | 14.9 | -104.9 | |
|
previous
or next observation for the same group /

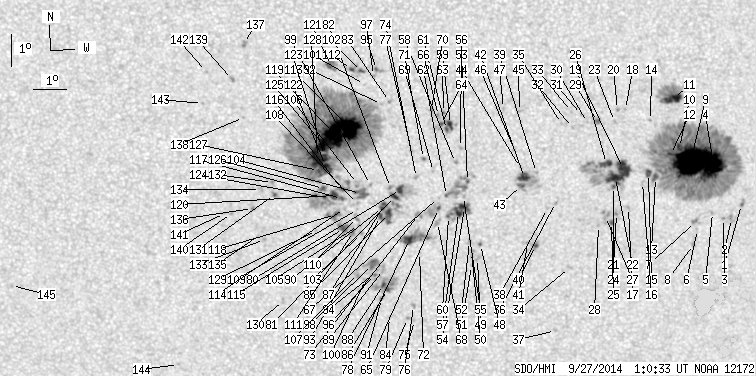

back to the solar disc SDO HMI 2014-09-27 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 2.74 | 0.19 | 1.46 | -12.42 | 247.06 | 10.10 | 207.49 | 0.3727 | -857.5 | -716.6 | |
| 0.00 | 3.53 | 0.00 | 1.89 | -12.86 | 246.77 | 9.81 | 206.27 | 0.3769 | 871.0 | 628.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -12.85 | 246.52 | 9.56 | 205.69 | 0.3750 | 805.0 | 707.8 | |
| 34.97 | 519.90 | 18.46 | 273.86 | -11.13 | 246.15 | 9.19 | 206.95 | 0.3472 | 1306.5 | 468.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -12.65 | 246.17 | 9.21 | 205.09 | 0.3697 | 718.0 | 556.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -13.19 | 245.72 | 8.76 | 203.42 | 0.3746 | -583.0 | -441.1 | |
| 0.00 | 3.53 | 0.00 | 1.88 | -12.93 | 245.65 | 8.69 | 203.53 | 0.3703 | -751.0 | -527.3 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -13.67 | 245.61 | 8.65 | 202.65 | 0.3810 | -884.0 | -725.1 | |
| 64.56 | -4.00 | 33.99 | -4.00 | -11.02 | 245.43 | 8.47 | 205.25 | 0.3404 | 1568.9 | 999999 | |
| 2.91 | -4.00 | 1.53 | -4.00 | -10.57 | 245.08 | 8.12 | 204.89 | 0.3313 | 1381.4 | 999999 | |
| 11.83 | 39.03 | 6.16 | 20.29 | -9.03 | 244.86 | 7.90 | 206.39 | 0.3067 | 1143.4 | 561.1 | |
| 0.26 | -4.00 | 0.14 | -4.00 | -10.79 | 244.81 | 7.85 | 203.88 | 0.3327 | 1255.7 | 999999 | |
| 2.21 | -4.00 | 1.16 | -4.00 | -11.51 | 244.36 | 7.40 | 201.84 | 0.3408 | 877.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.71 | 244.17 | 7.21 | 203.45 | 0.3121 | 688.0 | 525.2 | |
| 2.65 | -4.00 | 1.39 | -4.00 | -11.38 | 244.14 | 7.18 | 201.39 | 0.3375 | 1008.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -11.66 | 243.96 | 7.00 | 200.61 | 0.3407 | 623.0 | 451.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -12.45 | 243.55 | 6.59 | 198.72 | 0.3507 | 823.0 | 533.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.35 | 243.39 | 6.43 | 201.59 | 0.3017 | 752.0 | 523.1 | |
| 12.72 | 86.72 | 6.67 | 45.49 | -11.21 | 243.37 | 6.41 | 199.43 | 0.3304 | 1181.7 | 499.7 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.35 | 243.15 | 6.19 | 200.85 | 0.3001 | 1016.0 | 846.1 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -12.63 | 243.18 | 6.22 | 197.58 | 0.3517 | 908.0 | 770.7 | |
| 13.78 | -19.00 | 7.24 | -19.00 | -11.49 | 243.13 | 6.17 | 198.48 | 0.3335 | 1034.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -9.72 | 243.06 | 6.10 | 200.15 | 0.3055 | 815.0 | 566.4 | |
| 0.88 | -19.00 | 0.46 | -19.00 | -11.77 | 243.07 | 6.11 | 198.05 | 0.3377 | 739.4 | 999999 | |
| 0.88 | 2.21 | 0.47 | 1.17 | -12.92 | 243.03 | 6.07 | 196.94 | 0.3554 | 907.1 | 751.6 | |
| 5.21 | -19.00 | 2.73 | -19.00 | -11.04 | 242.84 | 5.88 | 198.10 | 0.3250 | 1129.0 | 999999 | |
| 0.00 | 6.80 | 0.00 | 3.60 | -12.72 | 242.84 | 5.88 | 196.60 | 0.3515 | 871.0 | 813.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.01 | 242.63 | 5.67 | 195.81 | 0.3550 | 749.0 | 646.5 | |
| 0.62 | 2.83 | 0.32 | 1.47 | -9.71 | 242.54 | 5.58 | 198.55 | 0.3025 | 1057.0 | 883.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.74 | 242.23 | 5.27 | 197.57 | 0.3014 | 960.0 | 720.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.49 | 242.05 | 5.09 | 197.24 | 0.2964 | 784.0 | 585.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.89 | 241.78 | 4.82 | 195.99 | 0.3016 | 827.0 | 623.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.39 | 241.74 | 4.78 | 196.35 | 0.2934 | 688.0 | 523.2 | |
| 0.00 | 2.65 | 0.00 | 1.41 | -14.35 | 241.76 | 4.80 | 192.62 | 0.3727 | 651.0 | 566.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.76 | 241.44 | 4.48 | 195.03 | 0.2980 | 648.0 | 532.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -12.26 | 241.29 | 4.33 | 192.67 | 0.3377 | 825.0 | 708.1 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -16.39 | 241.37 | 4.41 | 190.56 | 0.4037 | 773.0 | 491.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.45 | 241.05 | 4.09 | 191.86 | 0.3398 | 737.0 | 551.8 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -11.30 | 240.69 | 3.73 | 191.55 | 0.3201 | -733.0 | -558.3 | |
| 1.24 | 2.65 | 0.66 | 1.40 | -13.63 | 240.69 | 3.73 | 190.23 | 0.3577 | 921.4 | 745.2 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -13.56 | 240.44 | 3.48 | 189.59 | 0.3560 | 800.0 | 704.7 | |
| 6.54 | 23.67 | 3.42 | 12.38 | -11.45 | 240.33 | 3.36 | 190.35 | 0.3215 | -1086.7 | -525.1 | |
| 1.68 | -42.00 | 0.88 | -42.00 | -11.71 | 240.24 | 3.28 | 189.95 | 0.3253 | -884.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.14 | 240.20 | 3.24 | 190.15 | 0.3159 | -882.0 | -705.8 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -9.37 | 240.15 | 3.19 | 191.09 | 0.2868 | -927.0 | -647.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.57 | 240.01 | 3.05 | 189.88 | 0.3060 | 676.0 | 588.4 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.28 | 239.66 | 2.70 | 189.48 | 0.2838 | -792.0 | -647.3 | |
| 0.44 | 1.41 | 0.23 | 0.75 | -13.58 | 238.99 | 2.03 | 185.61 | 0.3532 | 974.6 | 872.2 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -14.03 | 238.90 | 1.94 | 185.25 | 0.3604 | 718.0 | 580.5 | |
| 0.00 | 3.71 | 0.00 | 1.97 | -13.84 | 238.71 | 1.75 | 184.79 | 0.3570 | 792.0 | 615.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.25 | 238.72 | 1.75 | 184.70 | 0.3638 | 584.0 | 476.2 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -13.48 | 238.65 | 1.69 | 184.70 | 0.3511 | 913.0 | 716.3 | |
| 0.62 | 26.49 | 0.32 | 13.85 | -11.57 | 238.58 | 1.62 | 184.98 | 0.3195 | 925.6 | 216.4 | |
| 6.36 | 26.76 | 3.34 | 14.06 | -12.40 | 238.49 | 1.53 | 184.50 | 0.3330 | 999.7 | 398.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -12.05 | 238.46 | 1.50 | 184.49 | 0.3272 | 863.0 | 700.4 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.49 | 238.36 | 1.40 | 184.58 | 0.3014 | -882.0 | -739.1 | |
| 5.12 | -54.00 | 2.69 | -54.00 | -12.55 | 238.30 | 1.34 | 183.93 | 0.3354 | 803.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.97 | 238.21 | 1.25 | 183.98 | 0.3090 | -1024.0 | -854.9 | |
| 3.18 | 7.07 | 1.64 | 3.66 | -9.77 | 238.05 | 1.09 | 183.74 | 0.2889 | 1097.5 | 854.2 | |
| 0.44 | -54.00 | 0.23 | -54.00 | -12.68 | 238.00 | 1.04 | 183.01 | 0.3372 | 529.6 | 999999 | |
| 1.06 | -59.00 | 0.55 | -59.00 | -9.93 | 237.93 | 0.97 | 183.29 | 0.2914 | 979.8 | 999999 | |
| 0.44 | -53.00 | 0.23 | -53.00 | -12.01 | 237.93 | 0.97 | 182.93 | 0.3261 | -941.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.39 | 237.84 | 0.88 | 183.08 | 0.2824 | 985.0 | 879.8 | |
| 0.71 | 4.95 | 0.37 | 2.56 | -9.74 | 237.78 | 0.82 | 182.80 | 0.2881 | 1131.0 | 756.9 | |
| 0.79 | 12.28 | 0.42 | 6.45 | -12.42 | 237.69 | 0.73 | 182.15 | 0.3327 | 684.8 | 4.8 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -9.49 | 237.68 | 0.72 | 182.53 | 0.2838 | 1003.0 | 932.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.07 | 237.69 | 0.73 | 182.18 | 0.3270 | 422.0 | 353.7 | |
| 0.00 | 4.42 | 0.00 | 2.32 | -12.87 | 237.66 | 0.70 | 182.01 | 0.3401 | 414.0 | 224.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -11.25 | 237.53 | 0.57 | 181.80 | 0.3132 | -766.0 | -625.3 | |
| 0.00 | 2.38 | 0.00 | 1.23 | -9.30 | 237.47 | 0.51 | 181.80 | 0.2805 | 855.0 | 631.3 | |
| 0.35 | 1.77 | 0.18 | 0.92 | -10.84 | 237.23 | 0.27 | 180.86 | 0.3062 | 778.2 | 496.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.83 | 237.10 | 0.14 | 180.39 | 0.3557 | -794.0 | -599.9 | |
| 0.00 | 3.62 | 0.00 | 1.90 | -12.61 | 237.07 | 0.11 | 180.33 | 0.3357 | -646.0 | -725.0 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -11.44 | 237.01 | 0.05 | 180.16 | 0.3162 | -909.0 | -741.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.03 | 236.95 | -0.02 | 179.96 | 0.3915 | 695.0 | 613.5 | |
| 0.00 | 2.03 | 0.00 | 1.09 | -15.54 | 236.91 | -0.05 | 179.88 | 0.3836 | -965.0 | -767.0 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.58 | 236.86 | -0.10 | 179.67 | 0.3019 | 712.0 | 566.6 | |
| 7.77 | 27.29 | 4.11 | 14.41 | -13.41 | 236.79 | -0.17 | 179.53 | 0.3488 | -1185.8 | -742.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -15.97 | 236.73 | -0.23 | 179.42 | 0.3904 | 822.0 | 705.1 | |
| 4.15 | 54.93 | 2.17 | 28.81 | -11.82 | 236.52 | -0.44 | 178.66 | 0.3226 | -1117.5 | -675.4 | |
| 3.00 | -80.00 | 1.57 | -80.00 | -12.04 | 236.34 | -0.62 | 178.12 | 0.3263 | -1104.2 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -11.75 | 236.21 | -0.75 | 177.72 | 0.3217 | -1097.0 | -926.4 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -9.05 | 236.19 | -0.77 | 177.25 | 0.2764 | -850.0 | -638.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.94 | 236.16 | -0.80 | 178.03 | 0.3901 | 705.0 | 505.7 | |
| 3.53 | -80.00 | 1.86 | -80.00 | -12.58 | 236.15 | -0.81 | 177.63 | 0.3354 | -1050.5 | 999999 | |
| 1.68 | 26.49 | 0.90 | 14.13 | -15.02 | 236.11 | -0.85 | 177.79 | 0.3754 | -1055.3 | -634.3 | |
| 1.68 | -80.00 | 0.88 | -80.00 | -12.29 | 236.03 | -0.93 | 177.23 | 0.3308 | -1154.9 | 999999 | |
| 1.77 | -86.00 | 0.94 | -86.00 | -14.86 | 235.98 | -0.98 | 177.45 | 0.3729 | -1162.8 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.46 | -14.38 | 235.99 | -0.97 | 177.40 | 0.3650 | -738.0 | -615.5 | |
| 1.59 | -80.00 | 0.83 | -80.00 | -12.39 | 235.97 | -1.00 | 177.06 | 0.3324 | -1138.9 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -15.32 | 235.92 | -1.04 | 177.34 | 0.3803 | -844.0 | -708.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.14 | 235.95 | -1.01 | 176.39 | 0.2782 | -648.0 | -398.1 | |
| 1.50 | -80.00 | 0.79 | -80.00 | -12.68 | 235.90 | -1.06 | 176.92 | 0.3372 | -928.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.41 | 235.80 | -1.16 | 176.91 | 0.3657 | -967.0 | -770.2 | |
| 0.53 | 3.71 | 0.27 | 1.90 | -8.05 | 235.80 | -1.16 | 175.56 | 0.2600 | -970.8 | -688.2 | |
| 0.35 | -86.00 | 0.19 | -86.00 | -14.54 | 235.71 | -1.26 | 176.68 | 0.3678 | -1084.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.24 | 235.71 | -1.25 | 175.27 | 0.2633 | -943.0 | -736.2 | |
| 0.00 | 10.86 | 0.00 | 5.77 | -14.22 | 235.65 | -1.32 | 176.47 | 0.3627 | -1286.0 | -960.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -11.66 | 235.60 | -1.36 | 175.82 | 0.3207 | -864.0 | -614.9 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -14.70 | 235.42 | -1.54 | 175.97 | 0.3708 | -682.0 | -519.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.52 | 235.44 | -1.53 | 174.35 | 0.2685 | -378.0 | -371.7 | |
| 1.06 | 6.80 | 0.54 | 3.49 | -8.11 | 235.35 | -1.61 | 173.86 | 0.2618 | -1055.4 | -807.4 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -13.22 | 235.31 | -1.65 | 175.35 | 0.3468 | -739.0 | -631.8 | |
| 0.00 | 11.48 | 0.00 | 6.01 | -11.95 | 235.29 | -1.67 | 174.96 | 0.3258 | -956.0 | -834.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -12.97 | 235.22 | -1.74 | 175.03 | 0.3427 | -841.0 | -638.5 | |
| 0.00 | 3.62 | 0.00 | 1.89 | -11.63 | 235.20 | -1.76 | 174.60 | 0.3207 | -809.0 | -805.4 | |
| 0.00 | 5.30 | 0.00 | 2.82 | -14.51 | 235.18 | -1.78 | 175.28 | 0.3679 | -739.0 | -588.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -12.26 | 235.20 | -1.76 | 174.77 | 0.3312 | -714.0 | -532.7 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -12.46 | 235.20 | -1.77 | 174.82 | 0.3344 | -769.0 | -564.0 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -12.71 | 235.16 | -1.80 | 174.79 | 0.3386 | -823.0 | -785.7 | |
| 0.44 | 3.36 | 0.23 | 1.77 | -13.16 | 235.07 | -1.89 | 174.64 | 0.3461 | -905.2 | -753.8 | |
| 1.15 | -102.00 | 0.59 | -102.00 | -8.05 | 235.04 | -1.92 | 172.68 | 0.2614 | -1119.2 | 999999 | |
| 31.88 | 638.06 | 16.51 | 331.23 | -9.86 | 234.97 | -1.99 | 173.24 | 0.2918 | -1643.3 | -529.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -12.42 | 234.80 | -2.17 | 173.64 | 0.3345 | -693.0 | -647.9 | |
| 3.97 | 8.65 | 2.10 | 4.57 | -13.06 | 234.76 | -2.20 | 173.74 | 0.3450 | -889.2 | -681.5 | |
| 1.24 | -113.00 | 0.65 | -113.00 | -11.82 | 234.74 | -2.22 | 173.26 | 0.3247 | -1141.1 | 999999 | |
| 1.24 | -113.00 | 0.65 | -113.00 | -12.11 | 234.71 | -2.25 | 173.27 | 0.3295 | -928.8 | 999999 | |
| 2.03 | 9.71 | 1.07 | 5.11 | -12.62 | 234.52 | -2.44 | 172.90 | 0.3382 | -896.8 | -679.3 | |
| 31.35 | -113.00 | 16.25 | -113.00 | -10.05 | 234.51 | -2.45 | 171.79 | 0.2960 | -1523.1 | 999999 | |
| 4.86 | -113.00 | 2.55 | -113.00 | -12.01 | 234.49 | -2.47 | 172.60 | 0.3283 | -1130.5 | 999999 | |
| 0.00 | 8.48 | 0.00 | 4.35 | -7.93 | 234.44 | -2.52 | 170.33 | 0.2608 | -1210.0 | -990.6 | |
| 1.94 | -113.00 | 1.01 | -113.00 | -11.06 | 234.23 | -2.73 | 171.37 | 0.3133 | -1061.6 | 999999 | |
| 0.26 | -113.00 | 0.14 | -113.00 | -10.75 | 234.20 | -2.76 | 171.12 | 0.3082 | -1248.0 | 999999 | |
| 1.15 | -113.00 | 0.60 | -113.00 | -12.08 | 234.18 | -2.78 | 171.71 | 0.3301 | -1021.2 | 999999 | |
| 13.42 | -113.00 | 6.97 | -113.00 | -10.40 | 234.17 | -2.79 | 170.86 | 0.3026 | -1234.5 | 999999 | |
| 1.50 | -113.00 | 0.79 | -113.00 | -11.79 | 234.16 | -2.80 | 171.50 | 0.3255 | -1046.4 | 999999 | |
| 1.24 | -113.00 | 0.65 | -113.00 | -11.22 | 234.01 | -2.95 | 170.78 | 0.3165 | -870.7 | 999999 | |
| 16.69 | -113.00 | 8.69 | -113.00 | -10.81 | 233.98 | -2.98 | 170.48 | 0.3098 | -1116.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.13 | 233.92 | -3.04 | 171.43 | 0.3479 | -493.0 | -395.7 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -15.40 | 232.86 | -4.10 | 169.70 | 0.3871 | -748.0 | -604.4 | |
| 0.79 | 3.53 | 0.42 | 1.86 | -11.99 | 232.65 | -4.31 | 167.19 | 0.3333 | -849.9 | -582.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.61 | 232.59 | -4.37 | 166.76 | 0.3274 | -1075.0 | -892.5 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -13.43 | 232.31 | -4.65 | 167.20 | 0.3576 | -945.0 | -759.1 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -11.84 | 232.22 | -4.74 | 165.85 | 0.3325 | -659.0 | -626.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.30 | 232.13 | -4.83 | 166.63 | 0.3563 | -678.0 | -533.5 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -12.44 | 231.96 | -5.00 | 165.57 | 0.3432 | -896.0 | -807.1 | |
| 0.00 | 3.18 | 0.00 | 1.63 | -7.26 | 231.80 | -5.16 | 159.94 | 0.2613 | -1009.0 | -846.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -9.57 | 231.74 | -5.22 | 162.41 | 0.2984 | -810.0 | -661.2 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -8.39 | 231.42 | -5.54 | 160.05 | 0.2813 | -1072.0 | -882.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -12.61 | 231.31 | -5.65 | 163.92 | 0.3487 | -775.0 | -616.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.61 | 231.09 | -5.87 | 163.34 | 0.3497 | -643.0 | -469.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.15 | 230.63 | -6.33 | 157.15 | 0.2824 | -849.0 | -713.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.15 | 230.49 | -6.47 | 158.03 | 0.2988 | -774.0 | -601.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -17.53 | 229.48 | -7.48 | 163.27 | 0.4328 | -714.0 | -507.0 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -15.06 | 224.30 | -12.66 | 150.32 | 0.4291 | -583.0 | -402.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
