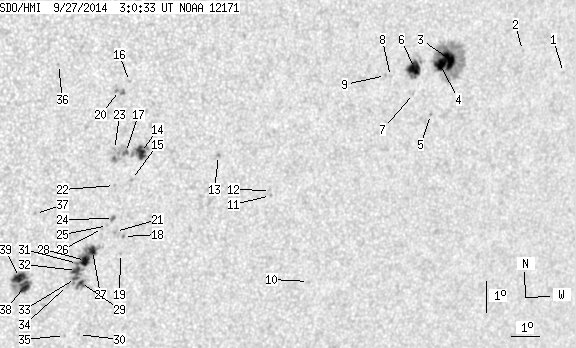

SDO HMI 2014-09-27 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.91 | 267.81 | 48.28 | 160.67 | -10.68 | 264.70 | 28.84 | 237.84 | 0.5612 | 96.2 | 85.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.53 | -9.10 | 275.34 | 39.48 | 248.39 | 0.6776 | 568.0 | 468.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -8.29 | 273.64 | 37.78 | 248.64 | 0.6532 | 391.0 | 463.2 | |
| 14.04 | 99.64 | 8.84 | 62.74 | -8.36 | 270.89 | 35.02 | 246.94 | 0.6194 | 982.7 | 259.6 | |
| 10.07 | -3.00 | 6.32 | -3.00 | -8.49 | 270.57 | 34.70 | 246.54 | 0.6161 | 1117.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -10.04 | 270.37 | 34.51 | 244.12 | 0.6222 | 571.0 | 585.2 | |
| 11.84 | 23.23 | 7.34 | 14.41 | -8.55 | 269.61 | 33.75 | 245.84 | 0.6044 | 989.0 | 589.0 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -9.33 | 269.66 | 33.80 | 244.69 | 0.6094 | 455.0 | 348.1 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -8.74 | 268.76 | 32.90 | 244.98 | 0.5946 | 716.0 | 577.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -8.70 | 268.57 | 32.71 | 244.92 | 0.5920 | 794.0 | 585.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -15.09 | 266.61 | 30.75 | 234.04 | 0.6121 | 597.0 | 441.7 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -12.22 | 264.85 | 28.99 | 236.55 | 0.5699 | 525.0 | 491.4 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -12.06 | 264.84 | 28.97 | 236.77 | 0.5685 | 706.0 | 510.2 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -10.84 | 262.89 | 27.03 | 236.82 | 0.5354 | -820.0 | -688.3 | |
| 7.68 | 16.87 | 4.39 | 9.64 | -10.60 | 260.22 | 24.36 | 234.40 | 0.5006 | 894.7 | 716.1 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -11.44 | 259.99 | 24.13 | 232.78 | 0.5052 | 516.0 | 473.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -8.35 | 259.69 | 23.83 | 237.67 | 0.4749 | 696.0 | 587.2 | |
| 1.15 | 12.98 | 0.65 | 7.38 | -10.57 | 259.72 | 23.85 | 233.87 | 0.4942 | 958.8 | 639.6 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -13.25 | 259.90 | 24.04 | 229.86 | 0.5207 | -615.0 | -522.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -13.79 | 259.85 | 23.99 | 229.01 | 0.5253 | -736.0 | -593.7 | |
| 0.00 | 6.01 | 0.00 | 3.37 | -8.61 | 259.37 | 23.51 | 236.85 | 0.4731 | 976.0 | 789.8 | |
| 0.00 | 2.03 | 0.00 | 1.17 | -13.07 | 259.61 | 23.75 | 229.79 | 0.5157 | -741.0 | -619.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -11.60 | 259.44 | 23.57 | 231.87 | 0.5001 | 602.0 | 437.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -10.46 | 259.34 | 23.48 | 233.62 | 0.4886 | 763.0 | 726.1 | |
| 0.62 | 2.83 | 0.36 | 1.63 | -12.65 | 259.50 | 23.64 | 230.30 | 0.5105 | -848.0 | -686.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -12.86 | 259.32 | 23.46 | 229.75 | 0.5105 | -721.0 | -557.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -12.95 | 259.16 | 23.30 | 229.43 | 0.5095 | -829.0 | -587.8 | |
| 4.95 | 48.94 | 2.85 | 28.24 | -13.64 | 258.89 | 23.03 | 228.06 | 0.5132 | -970.2 | -688.5 | |
| 6.45 | -27.00 | 3.72 | -27.00 | -13.95 | 258.69 | 22.83 | 227.35 | 0.5140 | -1054.1 | 999999 | |
| 1.68 | -27.00 | 0.97 | -27.00 | -14.66 | 258.60 | 22.73 | 226.21 | 0.5200 | -734.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -16.35 | 258.72 | 22.86 | 224.03 | 0.5385 | -675.0 | -549.4 | |
| 0.88 | -27.00 | 0.51 | -27.00 | -14.04 | 258.43 | 22.57 | 226.90 | 0.5120 | -1096.7 | 999999 | |
| 3.97 | -27.00 | 2.29 | -27.00 | -14.26 | 258.42 | 22.56 | 226.56 | 0.5141 | -1066.4 | 999999 | |
| 1.50 | -27.00 | 0.87 | -27.00 | -14.52 | 258.41 | 22.55 | 226.18 | 0.5166 | -877.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.92 | -14.73 | 258.17 | 22.30 | 225.56 | 0.5162 | -546.0 | -477.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -16.36 | 258.25 | 22.39 | 223.42 | 0.5338 | -591.0 | -509.6 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -7.71 | 257.31 | 21.45 | 236.05 | 0.4387 | -829.0 | -676.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -12.36 | 256.88 | 21.01 | 227.40 | 0.4778 | -696.0 | -566.6 | |
| 7.51 | 30.65 | 4.29 | 17.49 | -14.69 | 256.72 | 20.86 | 223.70 | 0.5006 | -900.9 | -584.0 | |
| 8.57 | -38.00 | 4.88 | -38.00 | -14.39 | 256.53 | 20.67 | 223.86 | 0.4954 | -1087.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
