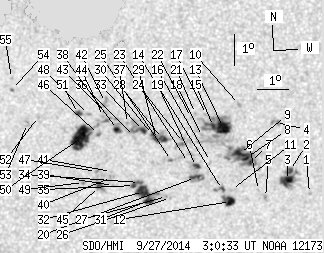

SDO HMI 2014-09-27 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.60 | 351.45 | 64.60 | 194.65 | -16.04 | 249.21 | 13.35 | 209.68 | 0.4485 | -75.9 | 95.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.71 | -17.56 | 253.53 | 17.67 | 215.30 | 0.5027 | 495.0 | 418.1 | |
| 2.65 | 25.70 | 1.50 | 14.59 | -16.77 | 252.79 | 16.93 | 215.11 | 0.4868 | 1049.2 | 604.8 | |
| 9.63 | -2.00 | 5.47 | -2.00 | -17.10 | 252.76 | 16.90 | 214.66 | 0.4905 | 957.6 | 999999 | |
| 0.00 | 4.50 | 0.00 | 2.51 | -15.19 | 252.20 | 16.34 | 216.17 | 0.4619 | 604.0 | 679.2 | |
| 0.00 | 2.56 | 0.00 | 1.46 | -17.63 | 252.08 | 16.22 | 212.95 | 0.4914 | 831.0 | 695.8 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -17.39 | 251.83 | 15.97 | 212.83 | 0.4863 | 751.0 | 606.8 | |
| 1.41 | 105.64 | 0.79 | 58.73 | -16.46 | 251.49 | 15.63 | 213.37 | 0.4717 | 743.1 | 538.1 | |
| 3.80 | -7.00 | 2.13 | -7.00 | -16.29 | 251.35 | 15.49 | 213.33 | 0.4683 | 878.3 | 999999 | |
| 6.98 | -7.00 | 3.90 | -7.00 | -16.15 | 251.11 | 15.25 | 213.09 | 0.4645 | 1001.7 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -14.56 | 250.99 | 15.13 | 214.92 | 0.4432 | 840.0 | 681.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -17.33 | 250.94 | 15.08 | 211.43 | 0.4783 | 381.0 | 425.5 | |
| 6.09 | 11.13 | 3.44 | 6.29 | -17.73 | 250.94 | 15.08 | 210.98 | 0.4834 | 890.5 | 721.4 | |
| 12.63 | -7.00 | 6.99 | -7.00 | -15.29 | 250.53 | 14.67 | 213.15 | 0.4485 | 1116.4 | 999999 | |
| 1.15 | 5.48 | 0.65 | 3.08 | -17.32 | 250.65 | 14.79 | 210.94 | 0.4759 | 971.8 | 786.6 | |
| 2.56 | -7.00 | 1.42 | -7.00 | -15.25 | 250.20 | 14.34 | 212.62 | 0.4452 | 1180.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -16.38 | 250.19 | 14.33 | 211.21 | 0.4600 | -524.0 | -367.5 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -14.85 | 249.95 | 14.09 | 212.66 | 0.4378 | 390.0 | 372.8 | |
| 0.00 | 2.47 | 0.00 | 1.37 | -15.56 | 249.87 | 14.01 | 211.63 | 0.4465 | 214.0 | 214.5 | |
| 2.30 | 16.69 | 1.28 | 9.31 | -16.53 | 249.75 | 13.88 | 210.26 | 0.4584 | 763.3 | 532.3 | |
| 3.09 | -19.00 | 1.73 | -19.00 | -16.89 | 249.74 | 13.88 | 209.84 | 0.4632 | 982.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -14.80 | 249.60 | 13.73 | 212.06 | 0.4343 | 878.0 | 721.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.93 | 249.48 | 13.61 | 211.67 | 0.4350 | 603.0 | 558.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -16.39 | 249.48 | 13.62 | 209.93 | 0.4545 | 162.0 | 154.7 | |
| 0.00 | 9.80 | 0.00 | 5.42 | -15.74 | 249.27 | 13.41 | 210.32 | 0.4441 | -648.0 | -579.4 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -16.31 | 248.92 | 13.06 | 209.01 | 0.4492 | -610.0 | -497.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -17.53 | 248.98 | 13.12 | 207.79 | 0.4661 | -496.0 | -421.8 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -17.49 | 248.85 | 12.98 | 207.59 | 0.4646 | -636.0 | -454.7 | |
| 4.06 | 13.43 | 2.24 | 7.38 | -15.59 | 248.59 | 12.73 | 209.20 | 0.4367 | -840.0 | -603.0 | |
| 2.21 | -28.00 | 1.21 | -28.00 | -15.61 | 248.40 | 12.54 | 208.81 | 0.4357 | -869.4 | 999999 | |
| 1.15 | -28.00 | 0.63 | -28.00 | -15.45 | 248.26 | 12.40 | 208.73 | 0.4323 | -1034.3 | 999999 | |
| 4.77 | 30.92 | 2.66 | 17.20 | -17.61 | 248.27 | 12.41 | 206.43 | 0.4622 | -780.0 | -642.8 | |
| 10.95 | -31.00 | 6.09 | -31.00 | -17.31 | 248.09 | 12.23 | 206.40 | 0.4568 | -995.8 | 999999 | |
| 2.65 | 15.99 | 1.45 | 8.74 | -15.31 | 247.97 | 12.10 | 208.31 | 0.4282 | -866.6 | -406.9 | |
| 1.06 | -31.00 | 0.59 | -31.00 | -17.01 | 247.94 | 12.08 | 206.42 | 0.4516 | -911.4 | 999999 | |
| 1.77 | -31.00 | 0.98 | -31.00 | -17.10 | 247.79 | 11.92 | 206.04 | 0.4518 | -1060.3 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.02 | -15.49 | 247.69 | 11.83 | 207.55 | 0.4288 | -683.0 | -533.0 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.07 | 247.44 | 11.58 | 207.54 | 0.4210 | 394.0 | 292.8 | |
| 3.18 | 7.15 | 1.74 | 3.90 | -15.25 | 247.13 | 11.27 | 206.71 | 0.4214 | -699.4 | -181.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -17.08 | 247.11 | 11.25 | 204.76 | 0.4471 | -719.0 | -625.6 | |
| 0.00 | 3.36 | 0.00 | 1.85 | -16.82 | 247.03 | 11.17 | 204.87 | 0.4428 | -674.0 | -654.0 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -16.62 | 247.02 | 11.16 | 205.04 | 0.4399 | -387.0 | -451.9 | |
| 0.00 | 4.95 | 0.00 | 2.68 | -14.37 | 246.71 | 10.85 | 206.82 | 0.4059 | -883.0 | -704.1 | |
| 0.00 | 2.65 | 0.00 | 1.44 | -14.69 | 246.73 | 10.86 | 206.48 | 0.4106 | -757.0 | -593.0 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.82 | 246.67 | 10.81 | 206.22 | 0.4120 | -807.0 | -577.3 | |
| 2.12 | 7.51 | 1.17 | 4.15 | -17.10 | 246.66 | 10.80 | 203.87 | 0.4445 | -865.1 | -657.4 | |
| 0.44 | 1.85 | 0.24 | 1.01 | -15.40 | 246.54 | 10.68 | 205.32 | 0.4194 | -881.4 | -660.2 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -16.61 | 246.54 | 10.68 | 204.10 | 0.4366 | -860.0 | -766.4 | |
| 0.00 | 1.85 | 0.00 | 1.01 | -14.74 | 246.19 | 10.33 | 205.29 | 0.4076 | -952.0 | -755.0 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -16.96 | 246.14 | 10.28 | 202.98 | 0.4392 | -798.0 | -629.2 | |
| 28.18 | 45.76 | 15.34 | 24.91 | -15.48 | 246.00 | 10.14 | 204.12 | 0.4171 | -1066.2 | -610.7 | |
| 1.77 | 3.44 | 0.96 | 1.86 | -14.70 | 245.87 | 10.01 | 204.65 | 0.4049 | -1033.2 | -826.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -14.77 | 244.62 | 8.75 | 201.80 | 0.3980 | 619.0 | 556.9 | |
| 0.00 | 2.65 | 0.00 | 1.43 | -14.99 | 244.28 | 8.42 | 200.83 | 0.3993 | 711.0 | 595.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -13.88 | 243.74 | 7.88 | 200.60 | 0.3796 | 791.0 | 754.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.53 | 243.73 | 7.86 | 200.92 | 0.3742 | 638.0 | 540.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
