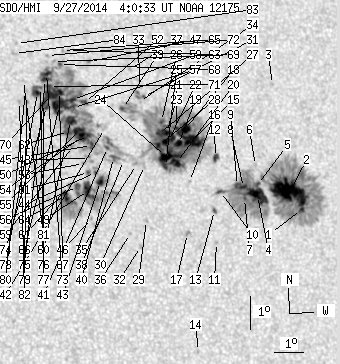

SDO HMI 2014-09-27 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 288.72 | 1208.88 | 161.06 | 676.98 | 14.90 | 262.20 | 26.88 | 289.46 | 0.4652 | 12.8 | -76.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 401.32 | 1.38 | 231.12 | 13.03 | 266.47 | 31.16 | 283.78 | 0.5211 | -964.4 | -376.1 | |
| 50.53 | -1.00 | 29.21 | -1.00 | 13.59 | 266.12 | 30.81 | 284.97 | 0.5174 | -1125.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 16.87 | 266.04 | 30.73 | 291.16 | 0.5264 | -645.0 | -463.2 | |
| 19.61 | -1.00 | 11.21 | -1.00 | 13.54 | 264.97 | 29.65 | 285.24 | 0.5005 | -1161.9 | 999999 | |
| 2.21 | -1.00 | 1.26 | -1.00 | 13.87 | 265.01 | 29.70 | 285.87 | 0.5021 | -949.3 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.96 | 14.45 | 265.03 | 29.71 | 287.00 | 0.5039 | -604.0 | -473.1 | |
| 0.88 | -1.00 | 0.50 | -1.00 | 13.48 | 264.50 | 29.18 | 285.27 | 0.4935 | -1071.9 | 999999 | |
| 2.83 | -1.00 | 1.61 | -1.00 | 13.81 | 264.51 | 29.19 | 285.93 | 0.4946 | -1097.8 | 999999 | |
| 2.21 | -1.00 | 1.25 | -1.00 | 13.89 | 264.30 | 28.99 | 286.15 | 0.4918 | -939.5 | 999999 | |
| 2.03 | -1.00 | 1.15 | -1.00 | 13.74 | 263.68 | 28.37 | 286.09 | 0.4823 | -916.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 12.21 | 263.35 | 28.04 | 283.03 | 0.4735 | -753.0 | -648.9 | |
| 3.00 | 339.66 | 1.70 | 190.17 | 14.77 | 263.65 | 28.34 | 288.21 | 0.4851 | 850.2 | -307.9 | |
| 0.88 | 2.21 | 0.50 | 1.24 | 13.18 | 263.40 | 28.09 | 285.04 | 0.4766 | -859.9 | -734.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 8.97 | 262.41 | 27.09 | 276.24 | 0.4545 | 594.0 | 511.2 | |
| 19.26 | -12.00 | 10.84 | -12.00 | 15.34 | 262.89 | 27.57 | 289.71 | 0.4761 | -1092.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 14.10 | 262.64 | 27.33 | 287.26 | 0.4682 | 461.0 | 399.9 | |
| 0.00 | 2.47 | 0.00 | 1.38 | 12.54 | 262.38 | 27.07 | 284.04 | 0.4598 | 818.0 | 549.9 | |
| 9.98 | -12.00 | 5.61 | -12.00 | 15.68 | 262.69 | 27.38 | 290.52 | 0.4746 | -1104.6 | 999999 | |
| 4.15 | -12.00 | 2.33 | -12.00 | 15.27 | 262.42 | 27.11 | 289.81 | 0.4691 | -1338.3 | 999999 | |
| 4.77 | -12.00 | 2.67 | -12.00 | 14.70 | 262.27 | 26.96 | 288.69 | 0.4648 | 933.7 | 999999 | |
| 1.68 | -12.00 | 0.94 | -12.00 | 15.73 | 262.41 | 27.10 | 290.76 | 0.4709 | -1137.6 | 999999 | |
| 8.66 | -12.00 | 4.84 | -12.00 | 15.38 | 262.08 | 26.77 | 290.21 | 0.4647 | -1374.2 | 999999 | |
| 5.04 | -12.00 | 2.81 | -12.00 | 15.63 | 262.05 | 26.74 | 290.74 | 0.4652 | -1323.4 | 999999 | |
| 9.36 | -12.00 | 5.22 | -12.00 | 14.90 | 261.91 | 26.60 | 289.30 | 0.4604 | 886.6 | 999999 | |
| 0.27 | -12.00 | 0.15 | -12.00 | 14.60 | 261.87 | 26.56 | 288.68 | 0.4586 | 1179.3 | 999999 | |
| 2.12 | -12.00 | 1.18 | -12.00 | 15.97 | 261.92 | 26.61 | 291.53 | 0.4648 | -855.0 | 999999 | |
| 4.15 | -12.00 | 2.32 | -12.00 | 15.61 | 261.80 | 26.49 | 290.85 | 0.4616 | -1192.9 | 999999 | |
| 3.09 | -12.00 | 1.72 | -12.00 | 15.25 | 261.72 | 26.40 | 290.13 | 0.4589 | -1148.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.00 | 261.02 | 25.71 | 285.59 | 0.4407 | 660.0 | 444.7 | |
| 0.00 | 1.77 | 0.00 | 0.98 | 14.67 | 261.15 | 25.84 | 289.19 | 0.4484 | -709.0 | -614.8 | |
| 0.53 | 6.98 | 0.30 | 3.89 | 16.76 | 261.41 | 26.10 | 293.48 | 0.4611 | -911.8 | -792.9 | |
| 0.00 | 2.39 | 0.00 | 1.31 | 12.23 | 260.73 | 25.42 | 283.96 | 0.4341 | 650.0 | 524.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 17.07 | 261.32 | 26.00 | 294.19 | 0.4614 | -333.0 | -285.8 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 16.62 | 261.25 | 25.94 | 293.29 | 0.4582 | -678.0 | -544.0 | |
| 0.00 | 2.47 | 0.00 | 1.37 | 14.71 | 260.88 | 25.57 | 289.44 | 0.4446 | -612.0 | -482.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.64 | 260.44 | 25.12 | 285.02 | 0.4307 | 742.0 | 535.4 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 17.61 | 261.05 | 25.74 | 295.47 | 0.4603 | -620.0 | -551.9 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 14.86 | 260.45 | 25.14 | 290.00 | 0.4388 | -103.0 | 3.7 | |
| 1.33 | -12.00 | 0.73 | -12.00 | 16.43 | 260.63 | 25.32 | 293.31 | 0.4485 | 767.3 | 999999 | |
| 1.68 | 283.74 | 0.92 | 155.11 | 14.96 | 260.12 | 24.81 | 290.43 | 0.4344 | 463.3 | 404.9 | |
| 1.06 | -40.00 | 0.58 | -40.00 | 15.28 | 259.96 | 24.65 | 291.23 | 0.4334 | 765.3 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.12 | 15.86 | 259.93 | 24.62 | 292.53 | 0.4356 | 218.0 | 206.0 | |
| 5.30 | 75.09 | 2.90 | 40.93 | 14.26 | 259.60 | 24.28 | 289.15 | 0.4237 | 1031.7 | 528.7 | |
| 0.80 | 4.59 | 0.43 | 2.51 | 14.54 | 259.46 | 24.14 | 289.88 | 0.4228 | 955.8 | 712.9 | |
| 2.56 | -40.00 | 1.40 | -40.00 | 15.36 | 259.42 | 24.11 | 291.77 | 0.4259 | 825.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 13.16 | 259.17 | 23.86 | 286.82 | 0.4131 | 684.0 | 576.3 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 17.92 | 259.70 | 24.39 | 297.14 | 0.4433 | -897.0 | -752.4 | |
| 0.00 | 3.80 | 0.00 | 2.07 | 14.97 | 259.31 | 23.99 | 290.96 | 0.4224 | 763.0 | 835.1 | |
| 11.40 | -43.00 | 6.20 | -43.00 | 14.01 | 259.16 | 23.85 | 288.82 | 0.4162 | 1077.3 | 999999 | |
| 2.74 | -40.00 | 1.50 | -40.00 | 15.67 | 259.36 | 24.04 | 292.51 | 0.4264 | 583.0 | 999999 | |
| 0.80 | 1.94 | 0.43 | 1.06 | 14.55 | 259.22 | 23.91 | 290.05 | 0.4193 | 1032.6 | 857.2 | |
| 2.30 | -40.00 | 1.26 | -40.00 | 16.68 | 259.35 | 24.04 | 294.75 | 0.4315 | 650.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 14.83 | 259.08 | 23.77 | 290.78 | 0.4185 | 955.0 | 729.6 | |
| 8.22 | -40.00 | 4.49 | -40.00 | 15.65 | 259.15 | 23.84 | 292.61 | 0.4233 | 1095.0 | 999999 | |
| 6.36 | -40.00 | 3.47 | -40.00 | 15.84 | 259.04 | 23.72 | 293.11 | 0.4226 | 1136.6 | 999999 | |
| 2.47 | -43.00 | 1.34 | -43.00 | 14.15 | 258.80 | 23.49 | 289.36 | 0.4114 | 1088.8 | 999999 | |
| 3.36 | -40.00 | 1.84 | -40.00 | 16.55 | 258.96 | 23.64 | 294.75 | 0.4251 | 698.7 | 999999 | |
| 5.39 | -40.00 | 2.95 | -40.00 | 16.79 | 258.96 | 23.64 | 295.30 | 0.4264 | 651.2 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.25 | 15.36 | 258.77 | 23.46 | 292.22 | 0.4164 | 1059.0 | 894.3 | |
| 7.86 | -40.00 | 4.29 | -40.00 | 16.16 | 258.80 | 23.49 | 294.00 | 0.4209 | 1088.4 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.15 | 14.19 | 258.54 | 23.22 | 289.63 | 0.4076 | 1039.0 | 783.8 | |
| 4.59 | -40.00 | 2.50 | -40.00 | 15.83 | 258.69 | 23.38 | 293.33 | 0.4176 | 1253.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 18.29 | 259.03 | 23.72 | 298.48 | 0.4363 | 459.0 | 359.6 | |
| 4.15 | 40.37 | 2.25 | 21.84 | 13.89 | 258.37 | 23.06 | 289.03 | 0.4039 | 1233.9 | 595.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 18.30 | 258.82 | 23.51 | 298.68 | 0.4335 | 671.0 | 536.6 | |
| 18.90 | -40.00 | 10.30 | -40.00 | 16.63 | 258.49 | 23.18 | 295.31 | 0.4189 | 1156.6 | 999999 | |
| 5.30 | -40.00 | 2.89 | -40.00 | 17.06 | 258.55 | 23.23 | 296.21 | 0.4221 | 916.2 | 999999 | |
| 0.88 | -40.00 | 0.48 | -40.00 | 17.88 | 258.66 | 23.35 | 297.92 | 0.4286 | 730.4 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.02 | 17.98 | 258.47 | 23.15 | 298.30 | 0.4266 | 681.0 | 572.6 | |
| 11.13 | -40.00 | 6.06 | -40.00 | 16.98 | 258.26 | 22.95 | 296.27 | 0.4176 | 1169.9 | 999999 | |
| 2.83 | -40.00 | 1.54 | -40.00 | 17.22 | 258.23 | 22.91 | 296.86 | 0.4186 | 906.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 18.17 | 258.29 | 22.97 | 298.88 | 0.4253 | 790.0 | 609.9 | |
| 4.59 | -40.00 | 2.51 | -40.00 | 17.62 | 258.18 | 22.86 | 297.79 | 0.4203 | 900.2 | 999999 | |
| 2.92 | -40.00 | 1.58 | -40.00 | 16.62 | 258.04 | 22.73 | 295.65 | 0.4125 | 1118.6 | 999999 | |
| 3.80 | -40.00 | 2.07 | -40.00 | 17.44 | 258.12 | 22.80 | 297.44 | 0.4184 | 982.9 | 999999 | |
| 3.80 | -40.00 | 2.06 | -40.00 | 16.72 | 257.95 | 22.64 | 295.94 | 0.4118 | 1132.8 | 999999 | |
| 0.27 | -40.00 | 0.14 | -40.00 | 17.21 | 257.92 | 22.60 | 297.09 | 0.4141 | 963.7 | 999999 | |
| 2.30 | -40.00 | 1.25 | -40.00 | 17.06 | 257.79 | 22.48 | 296.86 | 0.4115 | 1170.6 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.29 | 16.83 | 257.39 | 22.08 | 296.70 | 0.4044 | 934.0 | 882.0 | |
| 0.00 | 1.86 | 0.00 | 1.00 | 17.14 | 257.40 | 22.08 | 297.40 | 0.4064 | 751.0 | 566.6 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.45 | 257.37 | 22.05 | 298.12 | 0.4079 | 879.0 | 694.7 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 16.81 | 257.15 | 21.84 | 296.87 | 0.4009 | 894.0 | 715.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 18.59 | 257.28 | 21.97 | 300.74 | 0.4143 | 788.0 | 607.2 | |
| 0.00 | 2.92 | 0.00 | 1.58 | 18.28 | 257.17 | 21.86 | 300.18 | 0.4107 | 909.0 | 668.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
