SDO HMI 2014-09-27 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.73 | 0.00 | 8.78 | 7.25 | 207.24 | -27.53 | 87.64 | 0.4609 | 58.4 | 133.1 | |
|
previous
or next observation for the same group /

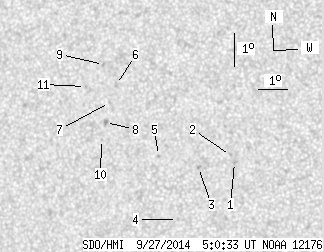

back to the solar disc SDO HMI 2014-09-27 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.82 | 6.33 | 210.43 | -24.33 | 89.88 | 0.4112 | -868.0 | -561.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 6.54 | 210.29 | -24.47 | 89.37 | 0.4134 | -763.0 | -613.3 | |
| 0.00 | 1.68 | 0.00 | 0.92 | 6.13 | 209.24 | -25.52 | 90.23 | 0.4302 | -875.0 | -734.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 4.53 | 208.61 | -26.16 | 93.78 | 0.4423 | -623.0 | -444.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 6.42 | 207.88 | -26.89 | 89.42 | 0.4513 | -579.0 | -508.4 | |
| 0.00 | 2.21 | 0.00 | 1.24 | 8.47 | 206.30 | -28.46 | 84.93 | 0.4752 | 730.0 | 578.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 7.92 | 206.10 | -28.66 | 86.10 | 0.4781 | 816.0 | 672.4 | |
| 0.00 | 3.09 | 0.00 | 1.74 | 7.31 | 206.01 | -28.76 | 87.37 | 0.4797 | 797.0 | 636.1 | |
| 0.00 | 1.68 | 0.00 | 0.95 | 9.04 | 205.80 | -28.96 | 83.75 | 0.4830 | 739.0 | 517.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 6.79 | 205.90 | -28.86 | 88.45 | 0.4815 | 557.0 | 385.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 8.35 | 205.23 | -29.53 | 85.21 | 0.4914 | 711.0 | 543.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
