SDO HMI 2014-09-27 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 12.99 | 2.33 | 10.68 | -14.58 | 185.38 | -48.84 | 114.12 | 0.8003 | 53.9 | -21.0 | |
|
previous
or next observation for the same group /

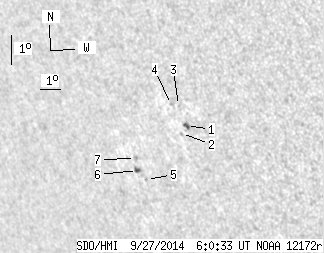

back to the solar disc SDO HMI 2014-09-27 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 3.00 | 1.12 | 2.39 | -13.89 | 186.82 | -47.40 | 113.93 | 0.7841 | 652.2 | 520.3 | |
| 0.00 | 1.33 | 0.00 | 1.06 | -14.17 | 186.51 | -47.71 | 114.13 | 0.7882 | 283.0 | 265.7 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -13.27 | 186.61 | -47.61 | 113.10 | 0.7837 | 610.0 | 412.9 | |
| 0.00 | 1.68 | 0.00 | 1.34 | -13.27 | 186.29 | -47.93 | 112.96 | 0.7869 | 703.0 | 463.9 | |
| 0.00 | 1.33 | 0.00 | 1.13 | -15.85 | 184.32 | -49.90 | 115.15 | 0.8151 | -578.0 | -490.9 | |
| 1.41 | 2.74 | 1.21 | 2.34 | -15.59 | 183.97 | -50.25 | 114.71 | 0.8174 | -577.2 | -463.7 | |
| 0.00 | 1.94 | 0.00 | 1.65 | -15.20 | 184.00 | -50.22 | 114.27 | 0.8157 | -655.0 | -590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
