SDO HMI 2014-09-27 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.06 | 13.00 | 0.83 | 10.57 | -14.56 | 185.38 | -48.29 | 114.33 | 0.7949 | 69.2 | -77.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

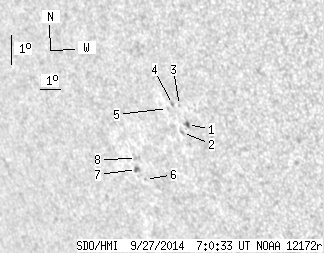

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.06 | 2.74 | 0.83 | 2.15 | -13.86 | 186.87 | -46.80 | 114.16 | 0.7780 | 750.3 | 575.9 | |
| 0.00 | 1.86 | 0.00 | 1.47 | -14.15 | 186.56 | -47.11 | 114.37 | 0.7821 | 346.0 | 276.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -13.28 | 186.66 | -47.01 | 113.36 | 0.7778 | 413.0 | 487.7 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -13.28 | 186.34 | -47.33 | 113.22 | 0.7810 | 553.0 | 472.7 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -13.43 | 186.07 | -47.60 | 113.29 | 0.7842 | 408.0 | 324.6 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -15.87 | 184.30 | -49.37 | 115.39 | 0.8103 | -532.0 | -467.3 | |
| 0.00 | 2.65 | 0.00 | 2.24 | -15.58 | 183.96 | -49.71 | 114.91 | 0.8123 | -639.0 | -521.4 | |
| 0.00 | 2.47 | 0.00 | 2.08 | -15.21 | 184.08 | -49.59 | 114.54 | 0.8099 | -630.0 | -599.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
