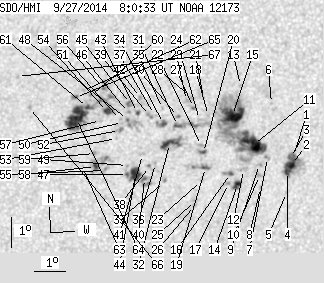

SDO HMI 2014-09-27 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.70 | 455.78 | 70.72 | 256.24 | -16.14 | 249.44 | 16.32 | 214.75 | 0.4739 | 35.0 | 37.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.59 | 31.18 | 0.92 | 18.05 | -16.89 | 253.08 | 19.96 | 219.50 | 0.5155 | 891.1 | 360.7 | |
| 8.75 | -1.00 | 5.06 | -1.00 | -17.19 | 253.05 | 19.92 | 219.08 | 0.5185 | 1051.9 | 999999 | |
| 1.77 | -1.00 | 1.02 | -1.00 | -16.95 | 252.99 | 19.86 | 219.29 | 0.5153 | 1033.6 | 999999 | |
| 3.62 | -1.00 | 2.10 | -1.00 | -17.41 | 252.94 | 19.81 | 218.64 | 0.5200 | 778.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -18.11 | 252.98 | 19.86 | 217.85 | 0.5284 | 653.0 | 472.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -15.16 | 252.18 | 19.05 | 220.50 | 0.4871 | 715.0 | 607.0 | |
| 0.00 | 2.30 | 0.00 | 1.32 | -16.92 | 252.22 | 19.09 | 218.23 | 0.5077 | 889.0 | 662.7 | |
| 0.00 | 1.94 | 0.00 | 1.12 | -17.90 | 252.09 | 18.97 | 216.83 | 0.5180 | 682.0 | 472.1 | |
| 0.00 | 2.21 | 0.00 | 1.27 | -17.14 | 251.97 | 18.85 | 217.60 | 0.5080 | 793.0 | 649.1 | |
| 0.00 | 2.92 | 0.00 | 1.68 | -17.50 | 252.01 | 18.89 | 217.21 | 0.5126 | 668.0 | 606.5 | |
| 17.31 | 149.38 | 9.87 | 84.57 | -16.47 | 251.71 | 18.58 | 218.06 | 0.4978 | 1108.2 | 497.7 | |
| 0.00 | 4.59 | 0.00 | 2.63 | -17.28 | 251.46 | 18.33 | 216.66 | 0.5050 | 741.0 | 634.3 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -14.53 | 251.10 | 17.98 | 219.74 | 0.4693 | 761.0 | 627.3 | |
| 4.42 | 6.89 | 2.54 | 3.96 | -17.77 | 251.31 | 18.18 | 215.85 | 0.5095 | 923.4 | 628.3 | |
| 23.85 | -11.00 | 13.44 | -11.00 | -15.50 | 250.92 | 17.80 | 218.14 | 0.4789 | 1118.6 | 999999 | |
| 0.88 | 4.33 | 0.51 | 2.48 | -17.40 | 251.04 | 17.91 | 215.89 | 0.5027 | 1072.3 | 835.8 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -17.72 | 251.00 | 17.88 | 215.45 | 0.5063 | 712.0 | 626.6 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -15.46 | 250.14 | 17.01 | 216.94 | 0.4712 | 590.0 | 437.4 | |
| 1.77 | 9.98 | 1.00 | 5.67 | -17.17 | 250.19 | 17.07 | 214.87 | 0.4925 | 1043.6 | 673.5 | |
| 1.68 | 3.80 | 0.95 | 2.15 | -16.67 | 250.08 | 16.95 | 215.30 | 0.4854 | 845.5 | 686.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.87 | 249.93 | 16.80 | 217.38 | 0.4621 | 751.0 | 669.1 | |
| 0.00 | 2.03 | 0.00 | 1.15 | -16.44 | 249.99 | 16.87 | 215.45 | 0.4818 | 868.0 | 638.2 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -17.59 | 250.10 | 16.97 | 214.22 | 0.4969 | 720.0 | 598.2 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -15.58 | 249.85 | 16.73 | 216.32 | 0.4701 | -323.0 | -106.7 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -18.25 | 249.96 | 16.84 | 213.25 | 0.5039 | 731.0 | 605.7 | |
| 0.00 | 2.03 | 0.00 | 1.17 | -18.41 | 249.95 | 16.82 | 213.03 | 0.5058 | 570.0 | 538.5 | |
| 0.00 | 2.12 | 0.00 | 1.18 | -15.19 | 249.62 | 16.50 | 216.47 | 0.4631 | 813.0 | 667.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.86 | 249.53 | 16.41 | 216.75 | 0.4582 | 920.0 | 795.8 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -14.95 | 249.38 | 16.26 | 216.37 | 0.4579 | 840.0 | 616.3 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -15.46 | 249.16 | 16.04 | 215.33 | 0.4623 | -728.0 | -617.2 | |
| 1.59 | 16.70 | 0.89 | 9.36 | -15.75 | 249.15 | 16.03 | 214.94 | 0.4659 | -817.7 | -335.5 | |
| 7.86 | 16.96 | 4.41 | 9.52 | -16.33 | 248.94 | 15.81 | 213.86 | 0.4713 | -871.1 | -484.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -17.58 | 248.88 | 15.76 | 212.29 | 0.4866 | -722.0 | -594.9 | |
| 2.12 | 7.07 | 1.18 | 3.94 | -15.67 | 248.69 | 15.57 | 214.26 | 0.4608 | -846.5 | -691.1 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -15.18 | 248.62 | 15.50 | 214.77 | 0.4540 | -601.0 | -446.9 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -16.97 | 248.53 | 15.41 | 212.42 | 0.4761 | -613.0 | -328.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -15.37 | 248.38 | 15.25 | 214.11 | 0.4542 | -454.0 | -494.0 | |
| 0.00 | 2.03 | 0.00 | 1.14 | -17.07 | 248.35 | 15.22 | 211.99 | 0.4757 | -550.0 | -285.2 | |
| 0.00 | 3.18 | 0.00 | 1.77 | -15.39 | 248.22 | 15.09 | 213.80 | 0.4532 | -938.0 | -753.6 | |
| 0.97 | 26.50 | 0.55 | 14.92 | -17.46 | 248.22 | 15.09 | 211.32 | 0.4797 | -830.8 | -634.4 | |
| 0.00 | 2.74 | 0.00 | 1.53 | -16.66 | 248.09 | 14.96 | 212.02 | 0.4684 | 645.0 | 540.0 | |
| 0.00 | 2.39 | 0.00 | 1.32 | -14.80 | 247.88 | 14.76 | 213.97 | 0.4427 | -340.0 | -123.1 | |
| 0.97 | 2.65 | 0.54 | 1.47 | -15.28 | 247.82 | 14.70 | 213.24 | 0.4484 | -851.8 | -682.8 | |
| 10.07 | -40.00 | 5.66 | -40.00 | -17.31 | 247.91 | 14.79 | 210.97 | 0.4755 | -992.5 | 999999 | |
| 0.00 | 3.98 | 0.00 | 2.19 | -14.98 | 247.57 | 14.45 | 213.18 | 0.4424 | -640.0 | -582.5 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -15.27 | 247.53 | 14.41 | 212.73 | 0.4458 | -845.0 | -703.5 | |
| 0.97 | -40.00 | 0.55 | -40.00 | -17.30 | 247.65 | 14.53 | 210.53 | 0.4733 | -981.0 | 999999 | |
| 0.35 | 11.66 | 0.20 | 6.47 | -15.50 | 247.51 | 14.39 | 212.42 | 0.4486 | -903.0 | -517.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -17.01 | 247.63 | 14.50 | 210.83 | 0.4692 | -811.0 | -625.7 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -15.59 | 247.36 | 14.24 | 212.02 | 0.4485 | -683.0 | -654.6 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -15.49 | 247.29 | 14.16 | 212.02 | 0.4466 | -797.0 | -626.1 | |
| 0.00 | 3.36 | 0.00 | 1.86 | -15.85 | 247.28 | 14.16 | 211.57 | 0.4513 | -787.0 | -698.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.11 | 247.20 | 14.08 | 211.12 | 0.4540 | -577.0 | -484.8 | |
| 3.89 | 66.69 | 2.14 | 36.65 | -15.22 | 246.85 | 13.73 | 211.55 | 0.4394 | -927.7 | -534.3 | |
| 0.00 | 3.45 | 0.00 | 1.93 | -17.15 | 246.89 | 13.77 | 209.38 | 0.4654 | -648.0 | -492.8 | |
| 0.35 | 5.83 | 0.19 | 3.19 | -14.47 | 246.68 | 13.55 | 212.16 | 0.4280 | -956.8 | -678.0 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -15.51 | 246.65 | 13.52 | 210.82 | 0.4416 | -598.0 | -526.2 | |
| 2.47 | 16.34 | 1.38 | 9.11 | -17.01 | 246.59 | 13.47 | 209.00 | 0.4613 | -980.3 | -726.6 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -16.58 | 246.53 | 13.40 | 209.36 | 0.4550 | -1001.0 | -869.8 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -14.68 | 246.27 | 13.15 | 211.12 | 0.4276 | -919.0 | -723.5 | |
| 1.41 | -54.00 | 0.78 | -54.00 | -15.07 | 246.20 | 13.08 | 210.51 | 0.4322 | -1025.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -14.52 | 246.04 | 12.92 | 210.88 | 0.4234 | -673.0 | -506.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.99 | 246.17 | 13.04 | 208.25 | 0.4580 | -776.0 | -624.2 | |
| 26.24 | -54.00 | 14.41 | -54.00 | -15.42 | 245.87 | 12.75 | 209.46 | 0.4343 | -1101.2 | 999999 | |
| 0.80 | 3.27 | 0.43 | 1.79 | -14.74 | 245.80 | 12.68 | 210.14 | 0.4244 | -1020.9 | -802.8 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -15.02 | 244.35 | 11.23 | 206.90 | 0.4175 | 981.0 | 763.4 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.01 | 243.92 | 10.80 | 207.15 | 0.4001 | 857.0 | 758.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
