SDO HMI 2014-09-27 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 23.91 | 0.34 | 13.07 | 7.12 | 207.62 | -24.95 | 87.96 | 0.4207 | 18.3 | 5.1 | |
|
previous
or next observation for the same group /

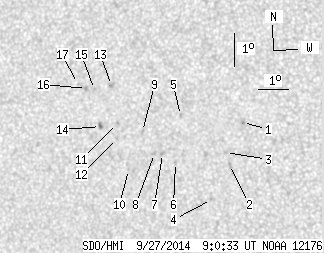

back to the solar disc SDO HMI 2014-09-27 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.66 | 7.55 | 210.72 | -21.86 | 86.86 | 0.3712 | -867.0 | -720.9 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 6.27 | 210.36 | -22.22 | 90.27 | 0.3775 | -731.0 | -594.9 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 6.62 | 210.21 | -22.37 | 89.31 | 0.3797 | -719.0 | -646.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 5.19 | 209.81 | -22.77 | 92.99 | 0.3876 | -607.0 | -522.7 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 7.67 | 208.67 | -23.90 | 86.58 | 0.4040 | -677.0 | -503.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 6.25 | 208.58 | -24.00 | 90.10 | 0.4060 | -660.0 | -590.8 | |
| 0.00 | 1.85 | 0.00 | 1.01 | 6.50 | 208.14 | -24.44 | 89.43 | 0.4128 | -616.0 | -546.0 | |
| 0.00 | 1.85 | 0.00 | 1.01 | 6.48 | 207.87 | -24.70 | 89.44 | 0.4171 | -683.0 | -509.4 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 7.12 | 207.44 | -25.14 | 87.88 | 0.4236 | -730.0 | -490.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 5.96 | 207.03 | -25.55 | 90.58 | 0.4308 | 763.0 | 618.2 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 7.32 | 206.58 | -25.99 | 87.39 | 0.4370 | 868.0 | 653.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 6.87 | 206.58 | -26.00 | 88.43 | 0.4372 | 736.0 | 622.4 | |
| 0.00 | 2.30 | 0.00 | 1.27 | 8.45 | 206.31 | -26.27 | 84.81 | 0.4414 | 908.0 | 688.4 | |
| 0.62 | 2.56 | 0.34 | 1.42 | 7.20 | 206.02 | -26.56 | 87.64 | 0.4458 | 826.9 | 711.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 8.30 | 205.74 | -26.84 | 85.18 | 0.4502 | 835.0 | 718.8 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 8.32 | 205.46 | -27.11 | 85.16 | 0.4544 | 869.0 | 718.5 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 8.45 | 205.15 | -27.43 | 84.88 | 0.4594 | 520.0 | 525.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
