SDO HMI 2014-09-27 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.36 | 1146.17 | 142.70 | 661.15 | 14.92 | 262.10 | 30.08 | 288.09 | 0.5111 | -30.1 | -38.4 | |
|
previous
or next observation for the same group /

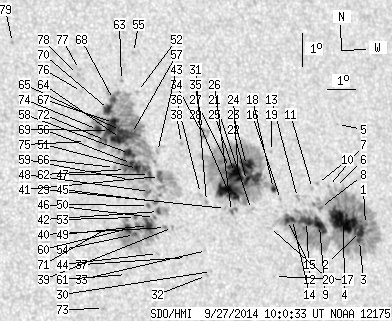

back to the solar disc SDO HMI 2014-09-27 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 372.18 | 0.16 | 222.04 | 13.52 | 266.88 | 34.85 | 283.82 | 0.5743 | -562.0 | -363.6 | |
| 7.33 | -1.00 | 4.41 | -1.00 | 13.32 | 266.65 | 34.63 | 283.52 | 0.5709 | -867.2 | 999999 | |
| 3.27 | -1.00 | 1.97 | -1.00 | 13.05 | 266.57 | 34.54 | 283.07 | 0.5693 | -886.8 | 999999 | |
| 43.45 | -1.00 | 26.01 | -1.00 | 13.66 | 266.07 | 34.04 | 284.26 | 0.5634 | -1122.2 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 16.61 | 266.39 | 34.37 | 289.27 | 0.5752 | -599.0 | -516.6 | |
| 0.00 | 1.77 | 0.00 | 1.06 | 14.71 | 265.95 | 33.93 | 286.12 | 0.5641 | -46.0 | -63.0 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 14.76 | 265.70 | 33.67 | 286.28 | 0.5607 | -493.0 | -384.6 | |
| 0.97 | -1.00 | 0.58 | -1.00 | 14.14 | 265.30 | 33.27 | 285.31 | 0.5536 | -783.9 | 999999 | |
| 13.34 | -1.00 | 7.90 | -1.00 | 13.60 | 265.17 | 33.14 | 284.37 | 0.5507 | -1079.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.79 | 14.87 | 265.31 | 33.28 | 286.61 | 0.5556 | -747.0 | -550.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 14.73 | 265.10 | 33.07 | 286.42 | 0.5523 | -742.0 | -553.4 | |
| 9.72 | -1.00 | 5.73 | -1.00 | 13.75 | 264.71 | 32.69 | 284.76 | 0.5446 | -1105.2 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.30 | 14.50 | 264.50 | 32.48 | 286.18 | 0.5434 | -731.0 | -520.9 | |
| 2.91 | -1.00 | 1.71 | -1.00 | 13.85 | 264.21 | 32.19 | 285.07 | 0.5377 | -1064.6 | 999999 | |
| 2.91 | -1.00 | 1.71 | -1.00 | 13.83 | 264.03 | 32.00 | 285.09 | 0.5350 | -1123.8 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.88 | 14.48 | 263.88 | 31.85 | 286.34 | 0.5345 | 435.0 | 234.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.17 | 263.32 | 31.29 | 282.16 | 0.5214 | -752.0 | -502.4 | |
| 2.56 | 290.83 | 1.50 | 168.06 | 14.82 | 263.68 | 31.65 | 287.05 | 0.5327 | 722.7 | -401.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 15.95 | 263.80 | 31.77 | 289.07 | 0.5377 | -581.0 | -374.5 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 13.66 | 263.35 | 31.32 | 284.97 | 0.5249 | -592.0 | -424.2 | |
| 0.00 | 2.56 | 0.00 | 1.48 | 14.24 | 262.78 | 30.76 | 286.26 | 0.5184 | 606.0 | 266.4 | |
| 3.44 | -18.00 | 2.00 | -18.00 | 15.13 | 262.74 | 30.71 | 287.95 | 0.5204 | -1328.9 | 999999 | |
| 13.16 | -18.00 | 7.64 | -18.00 | 15.58 | 262.82 | 30.79 | 288.78 | 0.5229 | -1010.5 | 999999 | |
| 4.68 | -18.00 | 2.70 | -18.00 | 15.20 | 262.47 | 30.44 | 288.21 | 0.5167 | -1519.3 | 999999 | |
| 14.84 | -18.00 | 8.57 | -18.00 | 15.39 | 262.35 | 30.32 | 288.62 | 0.5157 | -1470.8 | 999999 | |
| 0.79 | -18.00 | 0.46 | -18.00 | 14.22 | 262.06 | 30.03 | 286.48 | 0.5080 | 868.1 | 999999 | |
| 2.21 | -18.00 | 1.27 | -18.00 | 15.55 | 262.20 | 30.17 | 288.99 | 0.5141 | -1350.0 | 999999 | |
| 24.64 | -18.00 | 14.17 | -18.00 | 14.83 | 262.05 | 30.02 | 287.66 | 0.5096 | 533.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 14.32 | 261.86 | 29.83 | 286.75 | 0.5054 | 844.0 | 733.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 12.46 | 261.11 | 29.08 | 283.28 | 0.4896 | 651.0 | 555.6 | |
| 0.00 | 1.59 | 0.00 | 0.91 | 14.58 | 261.22 | 29.19 | 287.49 | 0.4969 | -798.0 | -642.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 12.35 | 260.92 | 28.89 | 283.11 | 0.4866 | 696.0 | 617.4 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 13.10 | 261.01 | 28.99 | 284.61 | 0.4898 | 552.0 | 492.0 | |
| 0.53 | 6.27 | 0.30 | 3.60 | 16.58 | 261.43 | 29.40 | 291.29 | 0.5070 | -982.5 | -723.9 | |
| 0.35 | -34.00 | 0.20 | -34.00 | 16.76 | 261.43 | 29.40 | 291.65 | 0.5077 | -820.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 14.83 | 261.04 | 29.02 | 288.07 | 0.4952 | -606.0 | -552.8 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 12.93 | 260.29 | 28.26 | 284.51 | 0.4786 | 539.0 | 500.7 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 16.38 | 260.61 | 28.58 | 291.33 | 0.4947 | -971.0 | -772.1 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 13.86 | 259.92 | 27.89 | 286.57 | 0.4758 | 589.0 | 499.9 | |
| 0.00 | 2.65 | 0.00 | 1.49 | 13.87 | 259.67 | 27.65 | 286.70 | 0.4722 | 823.0 | 693.8 | |
| 3.89 | 37.27 | 2.19 | 21.03 | 15.42 | 259.68 | 27.65 | 289.90 | 0.4777 | 759.3 | 163.1 | |
| 1.94 | 93.53 | 1.09 | 52.10 | 14.37 | 259.50 | 27.47 | 287.81 | 0.4712 | 913.3 | 579.7 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 16.19 | 259.72 | 27.69 | 291.41 | 0.4814 | 674.0 | 498.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 13.10 | 259.30 | 27.27 | 285.23 | 0.4644 | 677.0 | 494.9 | |
| 0.00 | 3.62 | 0.00 | 2.03 | 14.68 | 259.43 | 27.40 | 288.48 | 0.4714 | 982.0 | 838.4 | |
| 0.44 | -42.00 | 0.25 | -42.00 | 14.19 | 259.33 | 27.30 | 287.52 | 0.4683 | 823.2 | 999999 | |
| 2.56 | 279.88 | 1.44 | 156.76 | 15.50 | 259.34 | 27.31 | 290.23 | 0.4731 | 749.6 | 475.4 | |
| 0.00 | 11.48 | 0.00 | 6.44 | 14.99 | 259.27 | 27.24 | 289.21 | 0.4701 | 899.0 | 795.0 | |
| 5.03 | -42.00 | 2.81 | -42.00 | 13.96 | 259.09 | 27.06 | 287.14 | 0.4640 | 1094.2 | 999999 | |
| 0.62 | 1.85 | 0.35 | 1.04 | 14.57 | 259.17 | 27.14 | 288.38 | 0.4672 | 1017.0 | 892.6 | |
| 4.68 | -47.00 | 2.62 | -47.00 | 15.71 | 258.95 | 26.92 | 290.86 | 0.4683 | 1117.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 18.05 | 259.32 | 27.29 | 295.35 | 0.4843 | 164.0 | 61.1 | |
| 0.53 | 2.03 | 0.30 | 1.13 | 14.23 | 258.68 | 26.65 | 287.90 | 0.4587 | 988.8 | 802.2 | |
| 1.41 | -42.00 | 0.79 | -42.00 | 13.72 | 258.58 | 26.55 | 286.85 | 0.4555 | 981.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 19.25 | 259.38 | 27.36 | 297.62 | 0.4916 | 694.0 | 496.8 | |
| 2.47 | -47.00 | 1.38 | -47.00 | 15.87 | 258.76 | 26.73 | 291.30 | 0.4663 | 1240.6 | 999999 | |
| 5.48 | -47.00 | 3.08 | -47.00 | 16.78 | 258.90 | 26.87 | 293.09 | 0.4723 | 584.3 | 999999 | |
| 7.51 | -47.00 | 4.20 | -47.00 | 16.18 | 258.74 | 26.71 | 291.95 | 0.4673 | 1089.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 15.39 | 258.62 | 26.59 | 290.38 | 0.4623 | 1011.0 | 883.4 | |
| 4.59 | -42.00 | 2.55 | -42.00 | 13.91 | 258.39 | 26.36 | 287.35 | 0.4535 | 1255.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 12.53 | 258.16 | 26.13 | 284.41 | 0.4458 | 713.0 | 628.2 | |
| 0.26 | -47.00 | 0.15 | -47.00 | 15.70 | 258.53 | 26.50 | 291.08 | 0.4622 | 1265.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 18.41 | 258.81 | 26.78 | 296.41 | 0.4793 | 751.0 | 592.9 | |
| 15.63 | -47.00 | 8.74 | -47.00 | 16.65 | 258.49 | 26.46 | 293.07 | 0.4660 | 1103.6 | 999999 | |
| 5.92 | -47.00 | 3.31 | -47.00 | 16.89 | 258.53 | 26.50 | 293.55 | 0.4676 | 921.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 15.78 | 258.15 | 26.13 | 291.47 | 0.4572 | 992.0 | 832.9 | |
| 7.07 | -47.00 | 3.95 | -47.00 | 17.15 | 258.32 | 26.29 | 294.20 | 0.4660 | 926.0 | 999999 | |
| 2.74 | -47.00 | 1.54 | -47.00 | 17.85 | 258.43 | 26.40 | 295.55 | 0.4711 | 816.8 | 999999 | |
| 10.95 | -47.00 | 6.11 | -47.00 | 16.91 | 258.14 | 26.12 | 293.84 | 0.4623 | 1194.8 | 999999 | |
| 6.54 | -47.00 | 3.66 | -47.00 | 17.55 | 258.21 | 26.18 | 295.10 | 0.4664 | 927.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 13.95 | 257.64 | 25.61 | 287.80 | 0.4424 | 682.0 | 626.5 | |
| 1.32 | -47.00 | 0.74 | -47.00 | 16.62 | 257.96 | 25.93 | 293.34 | 0.4583 | 1192.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 11.55 | 257.27 | 25.24 | 282.51 | 0.4298 | 898.0 | 695.4 | |
| 4.42 | -47.00 | 2.46 | -47.00 | 16.97 | 257.73 | 25.70 | 294.22 | 0.4568 | 1187.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 16.62 | 257.27 | 25.24 | 293.81 | 0.4484 | 780.0 | 645.8 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 18.15 | 257.35 | 25.33 | 296.93 | 0.4578 | 882.0 | 728.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 18.83 | 257.39 | 25.36 | 298.27 | 0.4623 | 616.0 | 519.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 18.68 | 257.30 | 25.27 | 298.05 | 0.4601 | 677.0 | 580.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 19.77 | 255.20 | 23.17 | 302.10 | 0.4390 | 714.0 | 559.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
