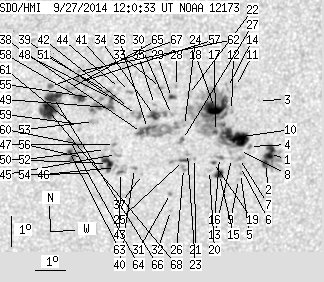

SDO HMI 2014-09-27 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.07 | 483.30 | 72.01 | 275.85 | -16.27 | 249.90 | 18.96 | 218.73 | 0.4992 | 135.0 | 31.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.42 | 36.38 | 6.13 | 21.45 | -17.23 | 253.22 | 22.29 | 222.18 | 0.5416 | 956.7 | 230.8 | |
| 3.97 | -1.00 | 2.34 | -1.00 | -17.56 | 253.13 | 22.19 | 221.64 | 0.5441 | 783.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -15.48 | 252.64 | 21.71 | 223.78 | 0.5173 | 462.0 | 469.3 | |
| 0.00 | 1.94 | 0.00 | 1.13 | -16.97 | 252.51 | 21.58 | 221.60 | 0.5318 | 672.0 | 592.9 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -17.85 | 252.31 | 21.38 | 220.22 | 0.5395 | 720.0 | 541.2 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -17.62 | 252.28 | 21.35 | 220.48 | 0.5366 | 744.0 | 641.9 | |
| 0.00 | 4.06 | 0.00 | 2.37 | -17.35 | 252.22 | 21.28 | 220.73 | 0.5331 | 940.0 | 739.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -17.09 | 252.19 | 21.25 | 221.03 | 0.5299 | 150.0 | 205.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -18.04 | 252.27 | 21.34 | 219.92 | 0.5412 | 572.0 | 483.5 | |
| 28.17 | 167.22 | 16.35 | 96.16 | -16.65 | 252.00 | 21.07 | 221.35 | 0.5234 | 991.0 | 478.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -14.98 | 251.82 | 20.89 | 223.37 | 0.5036 | 775.0 | 639.4 | |
| 0.00 | 2.30 | 0.00 | 1.32 | -15.76 | 251.77 | 20.83 | 222.22 | 0.5114 | 577.0 | 476.1 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -17.34 | 251.94 | 21.01 | 220.39 | 0.5304 | 810.0 | 573.2 | |
| 0.00 | 3.09 | 0.00 | 1.77 | -15.00 | 251.55 | 20.62 | 222.98 | 0.5011 | 765.0 | 622.1 | |
| 4.77 | 7.24 | 2.79 | 4.23 | -17.85 | 251.60 | 20.67 | 219.28 | 0.5328 | 893.5 | 546.1 | |
| 0.00 | 3.62 | 0.00 | 2.10 | -17.29 | 251.53 | 20.60 | 219.90 | 0.5259 | 901.0 | 630.5 | |
| 1.41 | -10.00 | 0.81 | -10.00 | -16.42 | 251.30 | 20.37 | 220.70 | 0.5141 | 647.9 | 999999 | |
| 19.87 | -10.00 | 11.38 | -10.00 | -15.64 | 251.19 | 20.25 | 221.59 | 0.5042 | 1121.9 | 999999 | |
| 0.62 | 1.77 | 0.36 | 1.03 | -17.44 | 251.35 | 20.42 | 219.45 | 0.5259 | 900.7 | 804.5 | |
| 0.00 | 1.59 | 0.00 | 0.93 | -17.70 | 251.25 | 20.31 | 218.98 | 0.5278 | 711.0 | 535.7 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -17.28 | 250.69 | 19.76 | 218.75 | 0.5179 | 796.0 | 656.3 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -15.17 | 250.28 | 19.35 | 220.93 | 0.4900 | 932.0 | 667.7 | |
| 0.00 | 3.00 | 0.00 | 1.73 | -17.10 | 250.44 | 19.51 | 218.61 | 0.5136 | 827.0 | 669.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -16.18 | 250.24 | 19.31 | 219.52 | 0.5011 | 736.0 | 607.9 | |
| 1.77 | 6.53 | 1.02 | 3.77 | -17.33 | 250.33 | 19.40 | 218.17 | 0.5151 | 908.5 | 634.0 | |
| 0.00 | 2.91 | 0.00 | 1.69 | -17.59 | 250.36 | 19.43 | 217.88 | 0.5185 | 780.0 | 716.6 | |
| 0.53 | 3.80 | 0.30 | 2.18 | -16.64 | 250.23 | 19.29 | 218.90 | 0.5062 | 929.7 | 710.0 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -14.90 | 249.86 | 18.93 | 220.69 | 0.4827 | 872.0 | 679.5 | |
| 1.68 | 3.53 | 0.95 | 2.00 | -15.25 | 249.73 | 18.79 | 220.01 | 0.4854 | 808.5 | 572.1 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -15.80 | 249.78 | 18.85 | 219.34 | 0.4923 | -429.0 | -262.6 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -18.41 | 250.02 | 19.09 | 216.41 | 0.5248 | 685.0 | 593.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -18.98 | 250.08 | 19.15 | 215.83 | 0.5320 | 403.0 | 414.7 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -14.91 | 249.33 | 18.40 | 219.88 | 0.4777 | 851.0 | 796.0 | |
| 5.12 | 52.27 | 2.90 | 29.71 | -15.81 | 249.22 | 18.29 | 218.48 | 0.4871 | -882.2 | -292.4 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -15.45 | 249.18 | 18.25 | 218.91 | 0.4826 | -769.0 | -610.1 | |
| 1.41 | -34.00 | 0.80 | -34.00 | -16.23 | 249.03 | 18.09 | 217.65 | 0.4902 | -955.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -17.74 | 249.01 | 18.08 | 215.74 | 0.5080 | -571.0 | -472.6 | |
| 2.38 | -34.00 | 1.35 | -34.00 | -16.35 | 248.84 | 17.91 | 217.21 | 0.4899 | -990.2 | 999999 | |
| 0.00 | 7.24 | 0.00 | 4.09 | -15.75 | 248.62 | 17.69 | 217.64 | 0.4808 | -840.0 | -701.1 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -17.53 | 248.72 | 17.79 | 215.56 | 0.5030 | -672.0 | -501.4 | |
| 0.00 | 2.30 | 0.00 | 1.29 | -15.00 | 248.33 | 17.39 | 218.19 | 0.4690 | -505.0 | -376.7 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -15.52 | 248.34 | 17.41 | 217.51 | 0.4753 | -448.0 | -454.0 | |
| 0.79 | 6.62 | 0.45 | 3.78 | -17.64 | 248.27 | 17.34 | 214.74 | 0.5005 | -668.7 | -525.8 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -14.89 | 247.99 | 17.06 | 217.80 | 0.4645 | -324.0 | -231.4 | |
| 0.00 | 3.80 | 0.00 | 2.16 | -17.04 | 248.08 | 17.15 | 215.17 | 0.4915 | -720.0 | -582.4 | |
| 0.00 | 2.38 | 0.00 | 1.36 | -17.47 | 248.09 | 17.16 | 214.66 | 0.4968 | -689.0 | -557.5 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -16.71 | 247.99 | 17.05 | 215.42 | 0.4866 | 813.0 | 541.2 | |
| 0.97 | 24.28 | 0.54 | 13.58 | -15.20 | 247.76 | 16.83 | 216.99 | 0.4661 | -862.6 | -694.8 | |
| 1.94 | -48.00 | 1.09 | -48.00 | -15.49 | 247.72 | 16.78 | 216.54 | 0.4693 | -711.4 | 999999 | |
| 7.50 | 14.13 | 4.27 | 8.03 | -17.33 | 247.81 | 16.88 | 214.40 | 0.4927 | -951.9 | -694.7 | |
| 0.00 | 3.80 | 0.00 | 2.12 | -14.97 | 247.58 | 16.64 | 217.01 | 0.4616 | -389.0 | -355.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -16.86 | 247.70 | 16.77 | 214.79 | 0.4860 | -396.0 | -433.4 | |
| 0.00 | 4.68 | 0.00 | 2.62 | -15.93 | 247.23 | 16.30 | 215.18 | 0.4703 | -546.0 | -293.4 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -17.64 | 247.38 | 16.45 | 213.34 | 0.4929 | -544.0 | -485.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.15 | 247.10 | 16.17 | 215.98 | 0.4594 | -720.0 | -580.3 | |
| 0.00 | 1.94 | 0.00 | 1.10 | -17.10 | 246.97 | 16.04 | 213.32 | 0.4827 | -660.0 | -544.3 | |
| 0.00 | 7.68 | 0.00 | 4.26 | -14.61 | 246.74 | 15.81 | 216.07 | 0.4495 | -650.0 | -556.1 | |
| 4.41 | 7.24 | 2.45 | 4.03 | -15.16 | 246.75 | 15.82 | 215.36 | 0.4565 | -857.0 | -582.8 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -16.01 | 246.81 | 15.88 | 214.38 | 0.4677 | -792.0 | -647.6 | |
| 0.00 | 5.21 | 0.00 | 2.93 | -16.67 | 246.84 | 15.90 | 213.62 | 0.4761 | -913.0 | -786.5 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -16.17 | 246.76 | 15.83 | 214.10 | 0.4693 | -678.0 | -578.9 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -14.29 | 246.62 | 15.69 | 216.31 | 0.4443 | -813.0 | -667.1 | |
| 1.32 | 9.98 | 0.75 | 5.62 | -16.88 | 246.53 | 15.60 | 212.84 | 0.4763 | -996.9 | -719.1 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -16.49 | 246.50 | 15.56 | 213.26 | 0.4710 | -941.0 | -771.7 | |
| 0.00 | 3.97 | 0.00 | 2.20 | -14.83 | 246.37 | 15.44 | 215.14 | 0.4488 | -749.0 | -637.9 | |
| 9.54 | 38.05 | 5.28 | 21.09 | -15.10 | 245.87 | 14.94 | 213.91 | 0.4479 | -1094.5 | -728.3 | |
| 0.97 | 2.83 | 0.54 | 1.56 | -14.74 | 245.75 | 14.82 | 214.16 | 0.4423 | -929.9 | -754.0 | |
| 16.51 | -66.00 | 9.16 | -66.00 | -15.52 | 245.74 | 14.81 | 213.15 | 0.4522 | -999.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
