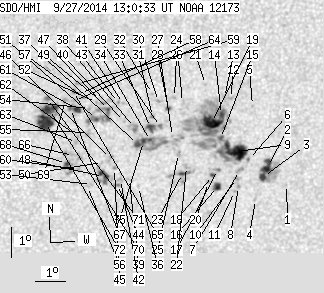

SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.69 | 470.06 | 69.13 | 269.22 | -16.27 | 249.93 | 19.55 | 219.57 | 0.5048 | 21.6 | 70.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.42 | -17.90 | 254.03 | 23.64 | 223.00 | 0.5618 | 536.0 | 447.8 | |
| 9.09 | 33.02 | 5.38 | 19.56 | -17.26 | 253.29 | 22.90 | 222.91 | 0.5480 | 962.1 | 263.1 | |
| 4.15 | -2.00 | 2.46 | -2.00 | -17.59 | 253.19 | 22.81 | 222.38 | 0.5504 | 759.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -18.34 | 253.02 | 22.64 | 221.21 | 0.5566 | 519.0 | 435.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -15.24 | 252.53 | 22.15 | 224.69 | 0.5194 | 491.0 | 508.5 | |
| 0.35 | 1.59 | 0.21 | 0.93 | -17.00 | 252.61 | 22.22 | 222.40 | 0.5385 | 635.2 | 517.1 | |
| 0.00 | 3.44 | 0.00 | 2.02 | -17.35 | 252.34 | 21.96 | 221.61 | 0.5396 | 785.0 | 664.6 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -17.88 | 252.38 | 21.99 | 220.98 | 0.5456 | 706.0 | 553.8 | |
| 23.48 | 173.38 | 13.71 | 100.10 | -16.72 | 252.16 | 21.78 | 222.20 | 0.5311 | 1043.2 | 503.8 | |
| 0.00 | 2.03 | 0.00 | 1.19 | -17.61 | 252.27 | 21.89 | 221.19 | 0.5417 | 785.0 | 609.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -18.04 | 252.26 | 21.88 | 220.63 | 0.5462 | 590.0 | 525.9 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -14.98 | 251.77 | 21.38 | 224.05 | 0.5086 | 797.0 | 628.0 | |
| 0.00 | 1.94 | 0.00 | 1.11 | -14.93 | 251.56 | 21.18 | 223.84 | 0.5060 | 852.0 | 689.6 | |
| 3.44 | -9.00 | 1.98 | -9.00 | -15.48 | 251.52 | 21.14 | 223.02 | 0.5115 | 810.5 | 999999 | |
| 1.68 | -9.00 | 0.97 | -9.00 | -16.26 | 251.57 | 21.19 | 222.02 | 0.5204 | 962.1 | 999999 | |
| 3.97 | 6.09 | 2.33 | 3.58 | -17.84 | 251.66 | 21.28 | 220.09 | 0.5384 | 912.4 | 637.8 | |
| 0.00 | 2.74 | 0.00 | 1.60 | -17.28 | 251.59 | 21.21 | 220.72 | 0.5316 | 925.0 | 762.5 | |
| 1.24 | 2.47 | 0.72 | 1.44 | -17.47 | 251.44 | 21.06 | 220.28 | 0.5323 | 864.9 | 678.1 | |
| 15.89 | -9.00 | 9.14 | -9.00 | -15.73 | 251.21 | 20.83 | 222.26 | 0.5110 | 1173.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -17.70 | 251.34 | 20.95 | 219.85 | 0.5337 | 786.0 | 598.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -14.48 | 250.89 | 20.50 | 223.55 | 0.4942 | 858.0 | 684.9 | |
| 0.00 | 3.18 | 0.00 | 1.84 | -17.13 | 250.53 | 20.15 | 219.47 | 0.5199 | 813.0 | 679.9 | |
| 1.68 | 10.06 | 0.97 | 5.83 | -17.36 | 250.42 | 20.04 | 219.03 | 0.5214 | 828.7 | 613.6 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -15.03 | 250.18 | 19.79 | 221.77 | 0.4929 | 435.0 | 468.1 | |
| 0.00 | 2.38 | 0.00 | 1.37 | -16.69 | 250.21 | 19.83 | 219.59 | 0.5119 | 997.0 | 781.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -14.86 | 249.90 | 19.51 | 221.61 | 0.4882 | 882.0 | 717.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -16.13 | 249.95 | 19.57 | 219.97 | 0.5030 | -286.0 | -178.8 | |
| 1.06 | 2.30 | 0.60 | 1.30 | -15.21 | 249.73 | 19.35 | 220.89 | 0.4904 | 798.8 | 633.8 | |
| 0.00 | 2.21 | 0.00 | 1.26 | -15.78 | 249.52 | 19.14 | 219.80 | 0.4949 | -617.0 | -505.9 | |
| 0.00 | 1.94 | 0.00 | 1.10 | -14.97 | 249.38 | 19.00 | 220.70 | 0.4842 | 1004.0 | 805.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -15.44 | 249.23 | 18.84 | 219.81 | 0.4882 | -668.0 | -562.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -14.70 | 249.16 | 18.77 | 220.74 | 0.4789 | 600.0 | 555.5 | |
| 3.80 | 7.77 | 2.16 | 4.42 | -15.80 | 249.19 | 18.81 | 219.29 | 0.4920 | -928.0 | -731.0 | |
| 1.59 | 42.46 | 0.91 | 24.25 | -16.23 | 249.23 | 18.85 | 218.79 | 0.4973 | -784.3 | -73.0 | |
| 3.27 | -34.00 | 1.86 | -34.00 | -16.25 | 249.01 | 18.62 | 218.42 | 0.4954 | -891.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -17.72 | 248.99 | 18.61 | 216.54 | 0.5126 | -648.0 | -464.5 | |
| 3.00 | -34.00 | 1.71 | -34.00 | -16.34 | 248.82 | 18.43 | 218.02 | 0.4947 | -947.9 | 999999 | |
| 0.00 | 6.18 | 0.00 | 3.50 | -15.78 | 248.66 | 18.28 | 218.52 | 0.4867 | -951.0 | -719.5 | |
| 0.00 | 2.30 | 0.00 | 1.32 | -17.48 | 248.67 | 18.28 | 216.36 | 0.5068 | -574.0 | -402.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.57 | 248.32 | 17.93 | 218.27 | 0.4809 | -637.0 | -521.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.98 | 248.23 | 17.85 | 218.93 | 0.4732 | -410.0 | -260.6 | |
| 0.00 | 2.47 | 0.00 | 1.42 | -17.47 | 248.37 | 17.98 | 215.92 | 0.5040 | -697.0 | -565.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.94 | 248.07 | 17.68 | 218.72 | 0.4711 | -571.0 | -423.5 | |
| 0.35 | 2.82 | 0.20 | 1.62 | -17.63 | 248.28 | 17.90 | 215.60 | 0.5052 | -674.2 | -512.3 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -17.10 | 248.13 | 17.75 | 216.02 | 0.4974 | -806.0 | -683.0 | |
| 0.00 | 3.00 | 0.00 | 1.71 | -16.76 | 247.97 | 17.58 | 216.18 | 0.4919 | 278.0 | 214.9 | |
| 0.79 | 24.63 | 0.45 | 13.81 | -15.16 | 247.76 | 17.37 | 217.94 | 0.4707 | -822.7 | -690.1 | |
| 6.71 | 15.45 | 3.83 | 8.81 | -17.35 | 247.79 | 17.41 | 215.20 | 0.4975 | -927.2 | -643.8 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -14.96 | 247.58 | 17.19 | 217.92 | 0.4666 | -658.0 | -408.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -16.88 | 247.71 | 17.33 | 215.64 | 0.4912 | -537.0 | -351.5 | |
| 1.15 | -47.00 | 0.64 | -47.00 | -15.47 | 247.39 | 17.01 | 216.94 | 0.4711 | -777.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.92 | 247.35 | 16.96 | 217.60 | 0.4639 | -692.0 | -457.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -17.60 | 247.42 | 17.04 | 214.32 | 0.4973 | -579.0 | -510.5 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -15.10 | 247.13 | 16.75 | 217.00 | 0.4642 | -382.0 | -404.5 | |
| 0.00 | 3.00 | 0.00 | 1.69 | -15.88 | 247.17 | 16.78 | 216.03 | 0.4740 | -583.0 | -438.4 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -17.66 | 247.29 | 16.91 | 214.05 | 0.4970 | -532.0 | -415.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -14.74 | 246.91 | 16.53 | 217.13 | 0.4577 | -617.0 | -511.0 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -14.61 | 246.80 | 16.42 | 217.13 | 0.4551 | -551.0 | -445.5 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -14.28 | 246.71 | 16.33 | 217.43 | 0.4502 | -819.0 | -733.0 | |
| 0.00 | 1.68 | 0.00 | 0.95 | -17.08 | 246.94 | 16.56 | 214.18 | 0.4869 | -695.0 | -547.7 | |
| 3.27 | 8.92 | 1.82 | 4.97 | -15.12 | 246.74 | 16.36 | 216.34 | 0.4609 | -825.2 | -616.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -16.00 | 246.82 | 16.43 | 215.31 | 0.4724 | -698.0 | -618.6 | |
| 0.00 | 1.85 | 0.00 | 1.04 | -16.19 | 246.80 | 16.42 | 215.04 | 0.4746 | -702.0 | -604.2 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -14.82 | 246.62 | 16.24 | 216.53 | 0.4561 | -559.0 | -479.2 | |
| 0.53 | 1.68 | 0.29 | 0.93 | -14.53 | 246.57 | 16.19 | 216.84 | 0.4520 | -795.3 | -656.8 | |
| 0.00 | 7.33 | 0.00 | 4.13 | -16.62 | 246.74 | 16.36 | 214.42 | 0.4794 | -863.0 | -737.7 | |
| 0.62 | -61.00 | 0.34 | -61.00 | -15.08 | 246.51 | 16.13 | 216.01 | 0.4582 | -954.1 | 999999 | |
| 1.77 | 10.06 | 1.00 | 5.69 | -16.87 | 246.53 | 16.15 | 213.77 | 0.4808 | -927.2 | -710.1 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -14.81 | 246.33 | 15.95 | 216.05 | 0.4533 | -730.0 | -741.5 | |
| 10.06 | 39.19 | 5.58 | 21.78 | -15.09 | 245.84 | 15.45 | 214.83 | 0.4523 | -1083.4 | -681.3 | |
| 0.71 | 2.82 | 0.39 | 1.56 | -14.73 | 245.75 | 15.36 | 215.15 | 0.4469 | -923.6 | -762.5 | |
| 17.04 | -70.00 | 9.48 | -70.00 | -15.51 | 245.74 | 15.35 | 214.13 | 0.4567 | -976.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
