SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 268.62 | 1136.93 | 157.12 | 666.92 | 14.89 | 262.10 | 31.72 | 287.39 | 0.5340 | -11.5 | -36.4 | |
|
previous
or next observation for the same group /

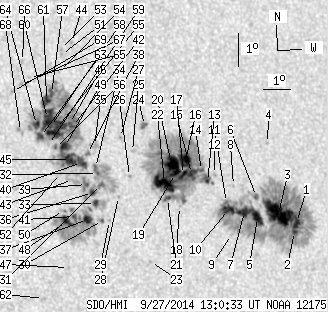

back to the solar disc SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.44 | 381.71 | 3.96 | 232.17 | 13.35 | 266.71 | 36.33 | 283.23 | 0.5944 | -806.8 | -356.7 | |
| 2.30 | -1.00 | 1.41 | -1.00 | 13.09 | 266.59 | 36.21 | 282.81 | 0.5923 | -855.3 | 999999 | |
| 38.22 | -1.00 | 23.33 | -1.00 | 13.67 | 266.08 | 35.70 | 283.90 | 0.5863 | -1126.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 15.81 | 266.07 | 35.69 | 287.50 | 0.5907 | -599.0 | -491.7 | |
| 11.03 | -1.00 | 6.67 | -1.00 | 13.60 | 265.27 | 34.89 | 283.96 | 0.5751 | -1066.5 | 999999 | |
| 1.24 | -1.00 | 0.75 | -1.00 | 14.24 | 265.35 | 34.96 | 285.04 | 0.5773 | -773.9 | 999999 | |
| 10.86 | -1.00 | 6.53 | -1.00 | 13.82 | 264.82 | 34.44 | 284.43 | 0.5692 | -1029.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 14.63 | 264.55 | 34.16 | 285.92 | 0.5672 | -730.0 | -517.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 13.16 | 264.22 | 33.84 | 283.41 | 0.5596 | -178.0 | -193.0 | |
| 8.83 | -1.00 | 5.27 | -1.00 | 13.91 | 264.24 | 33.85 | 284.75 | 0.5613 | -1103.9 | 999999 | |
| 0.71 | -1.00 | 0.42 | -1.00 | 14.13 | 264.20 | 33.82 | 285.14 | 0.5613 | -773.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 15.00 | 263.90 | 33.52 | 286.77 | 0.5593 | 87.0 | 69.4 | |
| 1.59 | 286.46 | 0.94 | 168.42 | 14.81 | 263.61 | 33.22 | 286.52 | 0.5547 | 716.3 | -331.8 | |
| 1.15 | -13.00 | 0.68 | -13.00 | 15.16 | 263.45 | 33.06 | 287.19 | 0.5533 | -586.6 | 999999 | |
| 4.68 | -13.00 | 2.77 | -13.00 | 15.09 | 263.06 | 32.68 | 287.19 | 0.5478 | -908.4 | 999999 | |
| 14.39 | -13.00 | 8.50 | -13.00 | 15.50 | 262.91 | 32.53 | 287.98 | 0.5469 | -971.4 | 999999 | |
| 4.24 | -13.00 | 2.50 | -13.00 | 15.08 | 262.76 | 32.38 | 287.27 | 0.5437 | -1267.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 14.12 | 262.46 | 32.08 | 285.62 | 0.5368 | 401.0 | 295.9 | |
| 4.94 | -13.00 | 2.91 | -13.00 | 15.13 | 262.48 | 32.09 | 287.46 | 0.5398 | -1435.5 | 999999 | |
| 18.27 | -13.00 | 10.73 | -13.00 | 15.41 | 262.38 | 32.00 | 288.01 | 0.5392 | -1392.1 | 999999 | |
| 2.30 | -13.00 | 1.34 | -13.00 | 14.39 | 262.06 | 31.68 | 286.24 | 0.5319 | 815.2 | 999999 | |
| 23.66 | -13.00 | 13.83 | -13.00 | 14.88 | 262.03 | 31.65 | 287.16 | 0.5328 | 454.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.53 | 261.17 | 30.79 | 282.98 | 0.5149 | 640.0 | 522.1 | |
| 1.68 | 4.06 | 0.98 | 2.37 | 16.65 | 261.61 | 31.22 | 290.58 | 0.5326 | -885.9 | -747.7 | |
| 0.00 | 1.50 | 0.00 | 0.87 | 15.89 | 261.03 | 30.65 | 289.42 | 0.5220 | 311.0 | 152.6 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 15.14 | 260.80 | 30.42 | 288.10 | 0.5162 | 469.0 | 322.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 16.34 | 260.68 | 30.29 | 290.42 | 0.5186 | -800.0 | -693.8 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 14.56 | 260.31 | 29.93 | 287.17 | 0.5075 | -468.0 | -372.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 13.85 | 259.89 | 29.51 | 285.95 | 0.4994 | 591.0 | 506.4 | |
| 0.79 | 3.00 | 0.45 | 1.71 | 13.87 | 259.64 | 29.26 | 286.07 | 0.4958 | 728.6 | 621.7 | |
| 1.32 | 57.73 | 0.76 | 32.99 | 14.95 | 259.77 | 29.38 | 288.17 | 0.5009 | 519.7 | 325.8 | |
| 0.79 | -31.00 | 0.45 | -31.00 | 15.30 | 259.68 | 29.29 | 288.87 | 0.5008 | 772.7 | 999999 | |
| 2.74 | 11.39 | 1.56 | 6.49 | 14.39 | 259.47 | 29.09 | 287.18 | 0.4949 | 876.6 | 200.8 | |
| 1.32 | -31.00 | 0.76 | -31.00 | 15.48 | 259.63 | 29.25 | 289.25 | 0.5008 | 733.2 | 999999 | |
| 0.00 | 6.44 | 0.00 | 3.69 | 16.15 | 259.70 | 29.32 | 290.52 | 0.5043 | 112.0 | 127.3 | |
| 2.82 | -31.00 | 1.61 | -31.00 | 14.73 | 259.41 | 29.03 | 287.88 | 0.4951 | 852.8 | 999999 | |
| 6.00 | 91.81 | 3.40 | 51.83 | 13.93 | 259.12 | 28.74 | 286.39 | 0.4884 | 966.4 | 555.5 | |
| 0.00 | 2.91 | 0.00 | 1.66 | 15.92 | 259.42 | 29.03 | 290.21 | 0.4993 | 641.0 | 498.7 | |
| 1.50 | -31.00 | 0.85 | -31.00 | 14.99 | 259.24 | 28.85 | 288.46 | 0.4934 | 1016.3 | 999999 | |
| 6.89 | 251.24 | 3.92 | 142.65 | 15.66 | 259.16 | 28.78 | 289.82 | 0.4948 | 801.6 | 453.2 | |
| 1.50 | -37.00 | 0.85 | -37.00 | 14.04 | 258.68 | 28.29 | 286.80 | 0.4823 | 1058.8 | 999999 | |
| 1.94 | -40.00 | 1.11 | -40.00 | 16.77 | 259.02 | 28.64 | 292.07 | 0.4971 | 600.2 | 999999 | |
| 0.00 | 6.97 | 0.00 | 3.95 | 15.16 | 258.77 | 28.38 | 289.02 | 0.4873 | 822.0 | 794.1 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 19.33 | 259.45 | 29.06 | 296.65 | 0.5150 | 692.0 | 518.9 | |
| 9.00 | -40.00 | 5.11 | -40.00 | 15.77 | 258.79 | 28.40 | 290.23 | 0.4899 | 1121.6 | 999999 | |
| 1.77 | -40.00 | 1.01 | -40.00 | 16.87 | 258.93 | 28.54 | 292.30 | 0.4963 | 644.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 12.52 | 258.27 | 27.89 | 283.79 | 0.4721 | 804.0 | 604.1 | |
| 7.68 | -37.00 | 4.33 | -37.00 | 13.91 | 258.38 | 27.99 | 286.64 | 0.4775 | 1180.1 | 999999 | |
| 5.91 | -40.00 | 3.36 | -40.00 | 16.18 | 258.64 | 28.25 | 291.11 | 0.4893 | 1088.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.19 | 14.25 | 258.32 | 27.93 | 287.36 | 0.4777 | 631.0 | 559.5 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 18.99 | 259.02 | 28.63 | 296.28 | 0.5074 | 736.0 | 670.1 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 15.37 | 258.37 | 27.99 | 289.62 | 0.4824 | 897.0 | 786.8 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 19.14 | 259.01 | 28.63 | 296.57 | 0.5081 | 574.0 | 511.1 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 18.47 | 258.85 | 28.47 | 295.42 | 0.5026 | 633.0 | 404.2 | |
| 22.95 | -40.00 | 13.02 | -40.00 | 16.74 | 258.44 | 28.06 | 292.32 | 0.4889 | 973.1 | 999999 | |
| 0.79 | -40.00 | 0.45 | -40.00 | 16.17 | 258.32 | 27.93 | 291.25 | 0.4847 | 1078.3 | 999999 | |
| 3.00 | -40.00 | 1.71 | -40.00 | 17.82 | 258.44 | 28.06 | 294.42 | 0.4938 | 777.7 | 999999 | |
| 1.77 | -40.00 | 1.00 | -40.00 | 16.81 | 258.24 | 27.86 | 292.58 | 0.4864 | 1212.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 16.27 | 258.08 | 27.70 | 291.59 | 0.4819 | 333.0 | 310.8 | |
| 16.42 | -40.00 | 9.30 | -40.00 | 17.06 | 258.17 | 27.79 | 293.11 | 0.4866 | 1011.2 | 999999 | |
| 7.33 | -40.00 | 4.16 | -40.00 | 17.61 | 258.23 | 27.85 | 294.15 | 0.4899 | 882.4 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.18 | 11.63 | 257.31 | 26.92 | 282.19 | 0.4556 | 781.0 | 619.1 | |
| 3.53 | -40.00 | 1.99 | -40.00 | 16.53 | 257.84 | 27.46 | 292.24 | 0.4795 | 1185.5 | 999999 | |
| 4.33 | -40.00 | 2.44 | -40.00 | 16.90 | 257.76 | 27.38 | 293.04 | 0.4800 | 1163.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 18.35 | 257.75 | 27.37 | 295.89 | 0.4870 | 652.0 | 480.0 | |
| 0.00 | 1.50 | 0.00 | 0.85 | 18.85 | 257.59 | 27.20 | 296.97 | 0.4874 | 710.0 | 614.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 18.15 | 257.43 | 27.05 | 295.71 | 0.4816 | 783.0 | 730.8 | |
| 0.00 | 4.24 | 0.00 | 2.38 | 16.72 | 257.16 | 26.78 | 293.02 | 0.4708 | 754.0 | 735.5 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 17.95 | 257.08 | 26.70 | 295.56 | 0.4757 | 898.0 | 715.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
