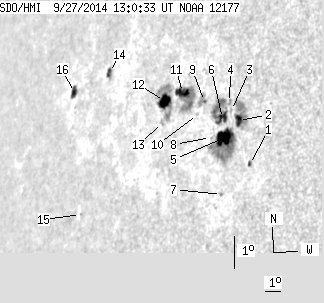

SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.16 | 219.39 | 59.82 | 219.46 | 12.39 | 169.35 | -61.04 | 79.61 | 0.8697 | -46.8 | -12.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 1.85 | 0.64 | 1.67 | 11.23 | 173.08 | -57.30 | 81.04 | 0.8377 | -254.4 | -256.5 | |
| 5.47 | 28.16 | 5.07 | 26.04 | 12.47 | 172.03 | -58.35 | 79.56 | 0.8473 | -756.1 | -370.7 | |
| 0.00 | 1.77 | 0.00 | 1.66 | 12.73 | 171.52 | -58.86 | 79.25 | 0.8519 | -495.0 | -438.0 | |
| 0.00 | 2.03 | 0.00 | 1.92 | 12.95 | 171.32 | -59.07 | 78.99 | 0.8537 | -446.0 | -369.7 | |
| 16.68 | 57.29 | 15.74 | 53.96 | 11.89 | 171.41 | -58.98 | 80.24 | 0.8530 | -611.5 | -315.5 | |
| 6.44 | 29.84 | 6.13 | 28.57 | 12.44 | 171.09 | -59.30 | 79.59 | 0.8558 | -388.8 | 114.0 | |
| 0.00 | 1.24 | 0.00 | 1.16 | 10.19 | 171.77 | -58.61 | 82.25 | 0.8500 | -555.0 | -457.6 | |
| 0.00 | 0.62 | 0.00 | 0.60 | 11.81 | 170.58 | -59.80 | 80.32 | 0.8602 | 25.0 | 56.6 | |
| 0.35 | 7.86 | 0.35 | 7.79 | 12.83 | 169.82 | -60.56 | 79.12 | 0.8667 | -278.0 | -82.4 | |
| 0.00 | 1.41 | 0.00 | 1.41 | 12.41 | 169.54 | -60.84 | 79.61 | 0.8691 | 319.0 | 229.4 | |
| 9.53 | 33.55 | 9.82 | 34.27 | 12.96 | 168.34 | -62.04 | 78.96 | 0.8790 | 670.7 | 457.6 | |
| 12.01 | 39.11 | 12.79 | 41.65 | 12.57 | 167.30 | -63.09 | 79.37 | 0.8874 | 505.9 | 197.9 | |
| 0.00 | 2.30 | 0.00 | 2.44 | 11.94 | 167.43 | -62.96 | 80.09 | 0.8865 | 423.0 | 405.8 | |
| 2.56 | 5.03 | 3.18 | 6.25 | 13.00 | 162.99 | -67.39 | 78.77 | 0.9187 | -390.3 | -252.5 | |
| 0.00 | 0.62 | 0.00 | 0.79 | 8.62 | 162.67 | -67.71 | 83.51 | 0.9224 | 275.0 | 252.6 | |
| 4.41 | 6.71 | 6.10 | 9.28 | 12.11 | 160.50 | -69.88 | 79.62 | 0.9349 | 302.8 | 134.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
