SDO HMI 2014-09-27 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.19 | 0.00 | 5.39 | -18.24 | 208.82 | -20.46 | 141.37 | 0.5381 | 119.8 | 111.8 | |
|
previous
or next observation for the same group /

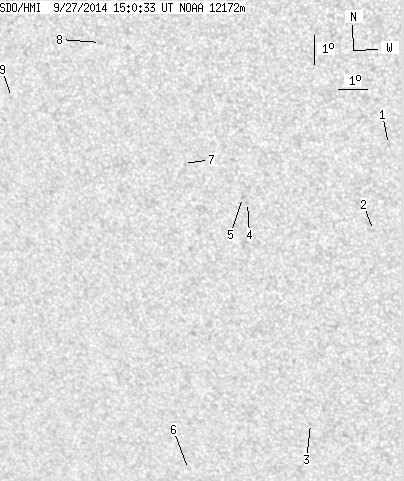

back to the solar disc SDO HMI 2014-09-27 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.69 | -16.07 | 214.47 | -14.81 | 147.52 | 0.4593 | 587.0 | 403.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -18.93 | 213.73 | -15.55 | 149.53 | 0.5020 | -765.0 | -612.1 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -25.68 | 210.73 | -18.56 | 151.68 | 0.6069 | 267.0 | 381.3 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -18.15 | 209.63 | -19.66 | 142.48 | 0.5269 | 633.0 | 530.1 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -17.99 | 209.48 | -19.81 | 142.07 | 0.5264 | 801.0 | 571.1 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -27.55 | 205.97 | -23.32 | 147.76 | 0.6602 | 703.0 | 543.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -16.95 | 207.61 | -21.67 | 138.25 | 0.5325 | 229.0 | 334.2 | |
| 0.00 | 1.76 | 0.00 | 1.02 | -13.15 | 205.25 | -24.04 | 129.95 | 0.5194 | -747.0 | -590.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -15.09 | 201.94 | -27.34 | 129.15 | 0.5740 | -630.0 | -653.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
