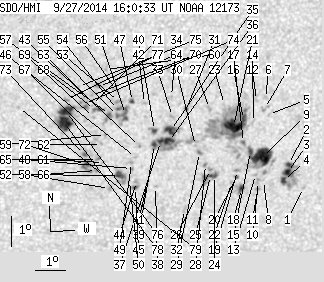

SDO HMI 2014-09-27 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.27 | 452.01 | 69.64 | 262.12 | -16.31 | 250.15 | 21.42 | 222.10 | 0.5234 | 25.6 | 123.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.80 | -17.98 | 254.05 | 25.32 | 224.82 | 0.5793 | 289.0 | 322.9 | |
| 1.76 | 30.53 | 1.06 | 18.37 | -17.19 | 253.41 | 24.68 | 225.12 | 0.5651 | 921.3 | 311.9 | |
| 3.44 | -2.00 | 2.07 | -2.00 | -17.45 | 253.42 | 24.69 | 224.78 | 0.5677 | 1012.5 | 999999 | |
| 2.91 | -2.00 | 1.75 | -2.00 | -17.71 | 253.32 | 24.58 | 224.33 | 0.5693 | 798.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -15.51 | 252.51 | 23.77 | 226.32 | 0.5392 | 475.0 | 498.9 | |
| 0.00 | 2.38 | 0.00 | 1.39 | -14.99 | 252.34 | 23.61 | 226.86 | 0.5323 | 615.0 | 482.9 | |
| 0.00 | 3.35 | 0.00 | 1.96 | -15.31 | 252.34 | 23.61 | 226.41 | 0.5355 | 491.0 | 634.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -17.67 | 252.62 | 23.89 | 223.57 | 0.5619 | 419.0 | 417.0 | |
| 22.85 | 177.00 | 13.56 | 103.68 | -16.88 | 252.47 | 23.74 | 224.43 | 0.5525 | 1025.2 | 509.1 | |
| 0.00 | 2.38 | 0.00 | 1.42 | -17.70 | 252.45 | 23.72 | 223.34 | 0.5605 | 754.0 | 652.5 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -17.96 | 252.45 | 23.72 | 223.00 | 0.5632 | 711.0 | 576.1 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -15.04 | 252.04 | 23.31 | 226.43 | 0.5296 | 669.0 | 560.7 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -17.46 | 252.31 | 23.58 | 223.48 | 0.5567 | 635.0 | 610.5 | |
| 0.00 | 2.56 | 0.00 | 1.50 | -15.75 | 252.02 | 23.29 | 225.41 | 0.5365 | 398.0 | 272.2 | |
| 2.47 | -9.00 | 1.46 | -9.00 | -16.69 | 252.04 | 23.31 | 224.15 | 0.5462 | 1074.4 | 999999 | |
| 3.18 | -9.00 | 1.85 | -9.00 | -15.63 | 251.67 | 22.94 | 225.14 | 0.5316 | 835.0 | 999999 | |
| 0.71 | -9.00 | 0.41 | -9.00 | -16.38 | 251.76 | 23.03 | 224.22 | 0.5402 | 907.0 | 999999 | |
| 2.29 | 5.29 | 1.37 | 3.15 | -17.90 | 251.89 | 23.16 | 222.41 | 0.5571 | 906.7 | 611.4 | |
| 0.00 | 2.21 | 0.00 | 1.30 | -17.30 | 251.67 | 22.94 | 222.91 | 0.5487 | 949.0 | 697.6 | |
| 0.53 | 1.68 | 0.31 | 0.99 | -17.49 | 251.66 | 22.93 | 222.65 | 0.5507 | 885.5 | 800.9 | |
| 15.53 | -9.00 | 9.06 | -9.00 | -15.84 | 251.36 | 22.62 | 224.45 | 0.5305 | 1198.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -17.68 | 251.52 | 22.79 | 222.22 | 0.5512 | 669.0 | 521.7 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -15.11 | 250.97 | 22.24 | 224.98 | 0.5190 | 193.0 | 217.3 | |
| 1.41 | 12.53 | 0.83 | 7.37 | -17.42 | 250.90 | 22.17 | 221.79 | 0.5425 | 797.8 | 729.2 | |
| 1.06 | -24.00 | 0.62 | -24.00 | -17.42 | 250.77 | 22.04 | 221.62 | 0.5411 | 837.5 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -17.22 | 250.74 | 22.01 | 221.84 | 0.5387 | 879.0 | 799.5 | |
| 0.00 | 2.38 | 0.00 | 1.37 | -15.22 | 250.48 | 21.74 | 224.19 | 0.5149 | 998.0 | 783.4 | |
| 0.00 | 1.76 | 0.00 | 1.03 | -17.04 | 250.55 | 21.82 | 221.82 | 0.5350 | 843.0 | 725.2 | |
| 0.53 | 1.68 | 0.31 | 0.98 | -16.64 | 250.30 | 21.57 | 222.03 | 0.5282 | 843.2 | 647.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -16.40 | 250.14 | 21.41 | 222.13 | 0.5241 | 661.0 | 540.8 | |
| 0.79 | 1.94 | 0.46 | 1.11 | -15.18 | 249.70 | 20.97 | 223.21 | 0.5065 | 799.3 | 662.8 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -18.50 | 250.02 | 21.29 | 219.30 | 0.5458 | 644.0 | 496.9 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -15.42 | 249.26 | 20.53 | 222.27 | 0.5046 | -714.0 | -567.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -14.77 | 249.16 | 20.43 | 223.04 | 0.4965 | 820.0 | 632.2 | |
| 6.71 | 46.15 | 3.85 | 26.58 | -15.87 | 249.24 | 20.51 | 221.62 | 0.5094 | -870.5 | -330.5 | |
| 6.71 | -35.00 | 3.86 | -35.00 | -16.23 | 249.21 | 20.48 | 221.11 | 0.5130 | -784.0 | 999999 | |
| 2.74 | -35.00 | 1.57 | -35.00 | -16.22 | 248.94 | 20.21 | 220.75 | 0.5103 | -1012.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -17.69 | 248.94 | 20.21 | 218.85 | 0.5268 | -518.0 | -461.9 | |
| 1.85 | -35.00 | 1.07 | -35.00 | -16.31 | 248.75 | 20.02 | 220.37 | 0.5094 | -1005.8 | 999999 | |
| 1.68 | 4.24 | 0.96 | 2.42 | -15.85 | 248.71 | 19.97 | 220.91 | 0.5038 | -915.9 | -705.0 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -17.55 | 248.66 | 19.92 | 218.63 | 0.5225 | -442.0 | -406.4 | |
| 0.00 | 1.68 | 0.00 | 0.95 | -14.95 | 248.29 | 19.56 | 221.54 | 0.4897 | -484.0 | -269.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -16.35 | 248.26 | 19.53 | 219.61 | 0.5051 | 757.0 | 641.1 | |
| 0.00 | 1.76 | 0.00 | 1.02 | -17.50 | 248.28 | 19.55 | 218.17 | 0.5185 | -769.0 | -569.2 | |
| 1.06 | 2.82 | 0.61 | 1.64 | -17.70 | 248.27 | 19.54 | 217.91 | 0.5206 | -636.7 | -473.0 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -16.71 | 248.16 | 19.43 | 219.01 | 0.5083 | 570.0 | 435.0 | |
| 1.15 | 2.38 | 0.65 | 1.35 | -14.87 | 247.88 | 19.15 | 221.06 | 0.4847 | -631.8 | -545.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -17.06 | 248.07 | 19.34 | 218.41 | 0.5115 | -585.0 | -613.9 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -16.86 | 248.05 | 19.32 | 218.64 | 0.5090 | -469.0 | -341.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -17.46 | 248.04 | 19.31 | 217.89 | 0.5158 | -596.0 | -495.0 | |
| 3.53 | 16.59 | 2.00 | 9.39 | -15.29 | 247.69 | 18.96 | 220.20 | 0.4875 | -787.4 | -555.3 | |
| 4.24 | 11.21 | 2.44 | 6.45 | -17.28 | 247.69 | 18.96 | 217.60 | 0.5105 | -1023.2 | -693.8 | |
| 0.00 | 2.38 | 0.00 | 1.34 | -14.85 | 247.42 | 18.69 | 220.40 | 0.4799 | -829.0 | -679.6 | |
| 0.53 | -51.00 | 0.30 | -51.00 | -15.11 | 247.41 | 18.68 | 220.02 | 0.4828 | -985.7 | 999999 | |
| 0.79 | -51.00 | 0.45 | -51.00 | -15.31 | 247.43 | 18.70 | 219.78 | 0.4852 | -859.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.64 | -14.49 | 247.32 | 18.59 | 220.75 | 0.4748 | -487.0 | -438.0 | |
| 1.24 | 5.91 | 0.70 | 3.34 | -15.26 | 247.16 | 18.43 | 219.44 | 0.4821 | -930.7 | -733.9 | |
| 0.00 | 2.12 | 0.00 | 1.22 | -17.69 | 247.40 | 18.67 | 216.67 | 0.5127 | -671.0 | -574.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.91 | 247.09 | 18.36 | 218.46 | 0.4889 | -636.0 | -553.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -13.80 | 246.91 | 18.18 | 221.11 | 0.4627 | 762.0 | 630.5 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -16.82 | 247.11 | 18.38 | 217.32 | 0.4999 | -579.0 | -443.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -16.23 | 246.99 | 18.26 | 217.89 | 0.4918 | -608.0 | -503.6 | |
| 0.97 | 5.47 | 0.55 | 3.08 | -15.09 | 246.82 | 18.09 | 219.15 | 0.4767 | -733.3 | -539.9 | |
| 0.00 | 3.00 | 0.00 | 1.68 | -14.34 | 246.72 | 17.99 | 220.04 | 0.4671 | -758.0 | -682.1 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -16.72 | 246.90 | 18.17 | 217.14 | 0.4967 | -804.0 | -723.3 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -17.08 | 246.91 | 18.18 | 216.69 | 0.5011 | -673.0 | -579.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -16.06 | 246.78 | 18.04 | 217.79 | 0.4878 | -822.0 | -709.3 | |
| 0.53 | -63.00 | 0.30 | -63.00 | -15.08 | 246.65 | 17.92 | 218.91 | 0.4751 | -714.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -15.34 | 246.64 | 17.91 | 218.54 | 0.4780 | -737.0 | -644.8 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.62 | 246.52 | 17.79 | 219.32 | 0.4683 | -821.0 | -686.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -14.91 | 246.54 | 17.81 | 218.96 | 0.4720 | -265.0 | -389.5 | |
| 2.65 | 8.38 | 1.51 | 4.78 | -16.87 | 246.52 | 17.79 | 216.37 | 0.4951 | -924.1 | -724.0 | |
| 0.79 | 2.82 | 0.45 | 1.60 | -16.54 | 246.46 | 17.73 | 216.69 | 0.4905 | -1025.0 | -850.2 | |
| 0.00 | 7.94 | 0.00 | 4.45 | -14.87 | 246.31 | 17.58 | 218.65 | 0.4693 | -491.0 | -678.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.32 | 246.07 | 17.34 | 219.04 | 0.4603 | -630.0 | -516.8 | |
| 9.35 | 36.18 | 5.23 | 20.27 | -15.11 | 245.74 | 17.01 | 217.42 | 0.4668 | -1123.0 | -630.7 | |
| 0.00 | 1.94 | 0.00 | 1.08 | -14.72 | 245.71 | 16.98 | 217.90 | 0.4618 | -867.0 | -859.9 | |
| 14.29 | -76.00 | 8.02 | -76.00 | -15.46 | 245.71 | 16.98 | 216.89 | 0.4707 | -987.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.92 | 244.17 | 15.44 | 215.03 | 0.4501 | 744.0 | 582.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
