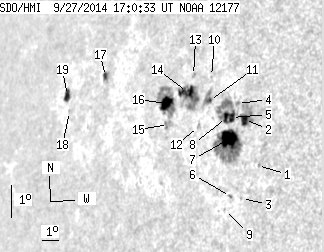

SDO HMI 2014-09-27 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.61 | 231.67 | 61.10 | 218.16 | 12.40 | 169.30 | -58.88 | 79.63 | 0.8511 | -85.0 | -15.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.38 | 11.23 | 173.08 | -55.10 | 81.08 | 0.8165 | -562.0 | -544.6 | |
| 5.47 | 21.17 | 4.80 | 18.53 | 12.53 | 171.97 | -56.21 | 79.49 | 0.8273 | -818.1 | -459.2 | |
| 0.00 | 0.53 | 0.00 | 0.46 | 10.17 | 172.50 | -55.68 | 82.36 | 0.8224 | -546.0 | -501.7 | |
| 0.00 | 2.03 | 0.00 | 1.80 | 12.97 | 171.42 | -56.76 | 78.97 | 0.8325 | -460.0 | -351.0 | |
| 4.06 | 32.91 | 3.62 | 29.63 | 12.52 | 171.24 | -56.94 | 79.51 | 0.8342 | -632.9 | -6.2 | |
| 0.00 | 1.41 | 0.00 | 1.24 | 10.17 | 171.89 | -56.29 | 82.34 | 0.8283 | -632.0 | -563.7 | |
| 18.44 | 67.14 | 16.44 | 59.87 | 11.89 | 171.33 | -56.85 | 80.27 | 0.8334 | -764.1 | -249.0 | |
| 4.32 | -5.00 | 3.89 | -5.00 | 12.49 | 170.96 | -57.22 | 79.54 | 0.8368 | -376.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 9.76 | 171.67 | -56.51 | 82.84 | 0.8305 | -423.0 | -414.7 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 13.62 | 169.67 | -58.51 | 78.20 | 0.8487 | -159.0 | -181.0 | |
| 1.15 | 9.88 | 1.06 | 9.19 | 12.90 | 169.83 | -58.35 | 79.05 | 0.8473 | -189.8 | -107.7 | |
| 0.00 | 2.56 | 0.00 | 2.39 | 12.07 | 169.47 | -58.71 | 80.03 | 0.8505 | -173.0 | -98.1 | |
| 0.00 | 1.85 | 0.00 | 1.77 | 13.55 | 168.61 | -59.57 | 78.30 | 0.8581 | 235.0 | 153.7 | |
| 11.29 | 34.23 | 10.87 | 32.80 | 13.01 | 168.46 | -59.72 | 78.92 | 0.8595 | 764.5 | 467.0 | |
| 0.00 | 5.47 | 0.00 | 5.39 | 11.95 | 167.68 | -60.50 | 80.14 | 0.8663 | 422.0 | 317.0 | |
| 11.82 | 37.94 | 11.76 | 37.78 | 12.55 | 167.32 | -60.86 | 79.44 | 0.8692 | 622.9 | 240.1 | |
| 2.12 | 5.73 | 2.43 | 6.56 | 12.93 | 162.97 | -65.21 | 78.92 | 0.9034 | -517.3 | -348.0 | |
| 0.00 | 1.15 | 0.00 | 1.43 | 11.62 | 160.84 | -67.34 | 80.28 | 0.9188 | 229.0 | 288.5 | |
| 4.94 | 6.71 | 6.23 | 8.46 | 12.07 | 160.44 | -67.73 | 79.77 | 0.9213 | 335.3 | 196.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
