SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.26 | 0.00 | 5.73 | -19.08 | 202.30 | -25.33 | 137.44 | 0.5925 | -238.9 | -144.0 | |
|
previous
or next observation for the same group /

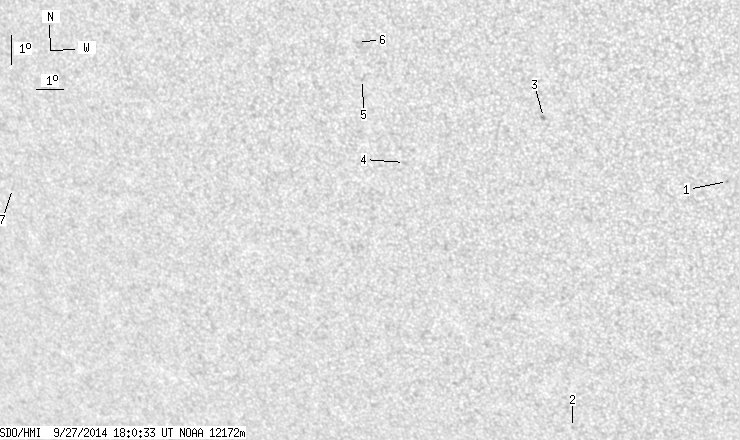

back to the solar disc SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.50 | -19.03 | 213.78 | -13.85 | 152.44 | 0.4910 | -747.0 | -601.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -27.83 | 207.26 | -20.37 | 151.32 | 0.6437 | 613.0 | 471.1 | |
| 0.00 | 2.03 | 0.00 | 1.17 | -17.12 | 207.89 | -19.74 | 141.10 | 0.5159 | 633.0 | 526.7 | |
| 0.00 | 1.76 | 0.00 | 1.07 | -18.84 | 202.91 | -24.72 | 136.94 | 0.5818 | -110.0 | -206.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -16.17 | 201.85 | -25.78 | 132.29 | 0.5668 | -570.0 | -481.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -14.97 | 201.84 | -25.79 | 130.62 | 0.5558 | -907.0 | -657.5 | |
| 0.00 | 1.41 | 0.00 | 1.05 | -20.74 | 187.58 | -40.05 | 126.00 | 0.7461 | -584.0 | -432.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
