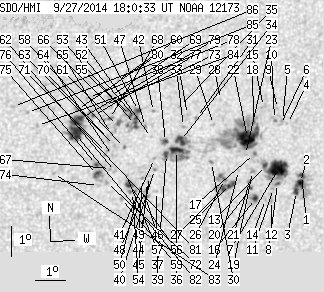

SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.86 | 427.44 | 74.84 | 249.65 | -16.22 | 249.92 | 22.29 | 223.35 | 0.5313 | 77.9 | 54.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.12 | 28.32 | 1.28 | 17.22 | -17.25 | 253.53 | 25.91 | 226.41 | 0.5783 | 827.7 | 305.3 | |
| 3.18 | -1.00 | 1.93 | -1.00 | -17.48 | 253.53 | 25.91 | 226.11 | 0.5804 | 955.4 | 999999 | |
| 2.65 | -1.00 | 1.61 | -1.00 | -17.77 | 253.44 | 25.81 | 225.63 | 0.5822 | 784.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -15.52 | 252.80 | 25.18 | 227.94 | 0.5543 | 393.0 | 343.9 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -15.41 | 252.62 | 24.99 | 227.88 | 0.5513 | 601.0 | 527.6 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -15.53 | 252.57 | 24.94 | 227.64 | 0.5519 | 617.0 | 521.1 | |
| 23.03 | 46.23 | 13.82 | 27.75 | -16.98 | 252.69 | 25.06 | 225.84 | 0.5670 | 1042.3 | 584.4 | |
| 0.88 | -7.00 | 0.53 | -7.00 | -17.47 | 252.73 | 25.10 | 225.23 | 0.5721 | 547.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -15.01 | 252.40 | 24.77 | 228.18 | 0.5451 | 656.0 | 507.2 | |
| 0.00 | 2.82 | 0.00 | 1.67 | -15.36 | 252.34 | 24.71 | 227.62 | 0.5478 | 717.0 | 673.3 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -17.63 | 252.61 | 24.98 | 224.90 | 0.5725 | 728.0 | 662.9 | |
| 0.00 | 1.68 | 0.00 | 1.01 | -18.02 | 252.60 | 24.97 | 224.38 | 0.5762 | 572.0 | 546.2 | |
| 1.68 | -7.00 | 1.00 | -7.00 | -16.85 | 252.22 | 24.60 | 225.47 | 0.5610 | 1013.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -17.98 | 252.39 | 24.76 | 224.19 | 0.5737 | 613.0 | 530.8 | |
| 0.00 | 2.65 | 0.00 | 1.55 | -14.92 | 251.91 | 24.28 | 227.75 | 0.5389 | 563.0 | 604.2 | |
| 2.65 | 6.44 | 1.59 | 3.87 | -17.93 | 252.03 | 24.40 | 223.85 | 0.5696 | 954.5 | 556.1 | |
| 0.44 | 1.41 | 0.26 | 0.84 | -16.44 | 251.79 | 24.16 | 225.51 | 0.5524 | 876.4 | 792.5 | |
| 0.62 | 104.72 | 0.36 | 61.53 | -15.42 | 251.62 | 24.00 | 226.71 | 0.5407 | 725.9 | 509.8 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -17.03 | 251.80 | 24.17 | 224.74 | 0.5583 | 492.0 | 363.1 | |
| 0.44 | 1.32 | 0.26 | 0.79 | -17.58 | 251.81 | 24.18 | 224.03 | 0.5640 | 861.4 | 828.4 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -17.35 | 251.74 | 24.11 | 224.25 | 0.5610 | 906.0 | 796.5 | |
| 29.64 | -18.00 | 17.47 | -18.00 | -15.90 | 251.48 | 23.85 | 225.88 | 0.5439 | 1006.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -16.45 | 251.48 | 23.85 | 225.13 | 0.5494 | 308.0 | 245.3 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -16.97 | 251.31 | 23.68 | 224.24 | 0.5528 | 785.0 | 617.4 | |
| 3.71 | 14.73 | 2.20 | 8.75 | -17.42 | 251.09 | 23.47 | 223.40 | 0.5552 | 869.5 | 663.7 | |
| 0.79 | 6.70 | 0.47 | 3.97 | -17.24 | 250.87 | 23.24 | 223.35 | 0.5511 | 932.7 | 781.5 | |
| 2.47 | -25.00 | 1.47 | -25.00 | -17.54 | 250.87 | 23.24 | 222.97 | 0.5542 | 841.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -14.61 | 250.41 | 22.79 | 226.37 | 0.5198 | 813.0 | 584.7 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.42 | 250.27 | 22.64 | 225.06 | 0.5263 | 217.0 | 163.4 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -16.66 | 250.35 | 22.72 | 223.47 | 0.5399 | 867.0 | 623.1 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -15.16 | 249.66 | 22.04 | 224.65 | 0.5174 | 927.0 | 776.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.05 | 249.35 | 21.72 | 224.39 | 0.5129 | 732.0 | 573.3 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -15.43 | 249.26 | 21.63 | 223.74 | 0.5160 | -398.0 | -394.9 | |
| 6.00 | 41.64 | 3.48 | 24.17 | -15.88 | 249.21 | 21.58 | 223.05 | 0.5203 | -905.4 | -364.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.77 | 249.05 | 21.43 | 224.39 | 0.5070 | 846.0 | 687.6 | |
| 6.18 | -34.00 | 3.58 | -34.00 | -16.20 | 249.11 | 21.48 | 222.49 | 0.5227 | -966.5 | 999999 | |
| 2.29 | -34.00 | 1.33 | -34.00 | -16.32 | 248.79 | 21.16 | 221.90 | 0.5207 | -925.2 | 999999 | |
| 1.68 | 3.00 | 0.97 | 1.73 | -15.89 | 248.70 | 21.08 | 222.37 | 0.5153 | -941.4 | -744.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -17.52 | 248.59 | 20.96 | 220.08 | 0.5320 | -480.0 | -412.2 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -16.79 | 248.44 | 20.81 | 220.81 | 0.5225 | -653.0 | -532.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -16.43 | 248.39 | 20.77 | 221.23 | 0.5181 | 638.0 | 397.9 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -14.90 | 248.20 | 20.57 | 223.06 | 0.4994 | -469.0 | -265.0 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -15.74 | 248.22 | 20.59 | 221.92 | 0.5088 | -586.0 | -453.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -17.02 | 248.29 | 20.67 | 220.33 | 0.5235 | -591.0 | -433.9 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -17.18 | 248.24 | 20.62 | 220.05 | 0.5249 | -529.0 | -444.9 | |
| 0.62 | 2.56 | 0.36 | 1.49 | -17.67 | 248.24 | 20.61 | 219.42 | 0.5303 | -636.4 | -497.5 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -15.37 | 247.98 | 20.35 | 222.09 | 0.5024 | -633.0 | -493.5 | |
| 0.00 | 2.38 | 0.00 | 1.39 | -17.47 | 248.21 | 20.58 | 219.63 | 0.5278 | -633.0 | -438.1 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -17.07 | 248.06 | 20.44 | 219.94 | 0.5220 | -751.0 | -650.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -17.40 | 248.00 | 20.37 | 219.44 | 0.5250 | -645.0 | -505.7 | |
| 1.85 | 24.53 | 1.05 | 13.96 | -14.84 | 247.70 | 20.07 | 222.43 | 0.4937 | -634.4 | -580.8 | |
| 1.50 | -51.00 | 0.85 | -51.00 | -15.10 | 247.66 | 20.03 | 222.01 | 0.4961 | -800.6 | 999999 | |
| 2.21 | -51.00 | 1.26 | -51.00 | -15.29 | 247.64 | 20.01 | 221.72 | 0.4981 | -764.0 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.23 | -17.52 | 247.78 | 20.15 | 218.98 | 0.5243 | -431.0 | -515.6 | |
| 1.24 | -51.00 | 0.70 | -51.00 | -14.99 | 247.45 | 19.82 | 221.86 | 0.4928 | -956.1 | 999999 | |
| 3.00 | 4.94 | 1.74 | 2.86 | -17.25 | 247.65 | 20.02 | 219.14 | 0.5200 | -1018.4 | -890.9 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -16.95 | 247.51 | 19.89 | 219.34 | 0.5154 | -832.0 | -607.4 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -16.03 | 247.35 | 19.72 | 220.31 | 0.5034 | -609.0 | -536.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -17.70 | 247.43 | 19.80 | 218.27 | 0.5232 | -678.0 | -598.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.84 | 246.91 | 19.29 | 222.73 | 0.4746 | 677.0 | 511.1 | |
| 0.00 | 6.09 | 0.00 | 3.46 | -15.30 | 247.05 | 19.42 | 220.86 | 0.4922 | -833.0 | -755.2 | |
| 0.00 | 1.94 | 0.00 | 1.12 | -16.80 | 247.13 | 19.50 | 218.99 | 0.5101 | -550.0 | -526.0 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -15.95 | 247.01 | 19.38 | 219.93 | 0.4992 | -696.0 | -612.9 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -16.27 | 246.98 | 19.35 | 219.45 | 0.5026 | -692.0 | -545.5 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -15.55 | 246.87 | 19.25 | 220.26 | 0.4933 | -683.0 | -649.0 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -14.71 | 246.79 | 19.17 | 221.31 | 0.4830 | -589.0 | -474.5 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -16.69 | 246.95 | 19.33 | 218.87 | 0.5072 | -787.0 | -688.5 | |
| 0.44 | 4.23 | 0.25 | 2.40 | -15.06 | 246.76 | 19.13 | 220.77 | 0.4867 | -767.4 | -637.0 | |
| 0.00 | 2.29 | 0.00 | 1.29 | -14.35 | 246.70 | 19.07 | 221.68 | 0.4780 | -720.0 | -634.0 | |
| 0.00 | 3.53 | 0.00 | 2.01 | -15.71 | 246.79 | 19.16 | 219.92 | 0.4943 | -706.0 | -620.3 | |
| 0.00 | 2.82 | 0.00 | 1.61 | -16.16 | 246.77 | 19.14 | 219.29 | 0.4993 | -776.0 | -741.1 | |
| 0.00 | 1.68 | 0.00 | 0.97 | -17.15 | 246.87 | 19.24 | 218.17 | 0.5116 | -635.0 | -517.4 | |
| 0.00 | 2.21 | 0.00 | 1.24 | -14.63 | 246.56 | 18.93 | 221.06 | 0.4798 | -744.0 | -626.7 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -17.24 | 246.61 | 18.98 | 217.68 | 0.5103 | -532.0 | -447.9 | |
| 3.00 | 8.65 | 1.72 | 4.96 | -16.87 | 246.54 | 18.91 | 218.04 | 0.5054 | -928.9 | -648.7 | |
| 1.32 | 4.76 | 0.76 | 2.72 | -16.54 | 246.47 | 18.85 | 218.36 | 0.5009 | -1043.9 | -844.1 | |
| 0.62 | 4.23 | 0.35 | 2.39 | -14.94 | 246.22 | 18.60 | 220.13 | 0.4800 | -850.0 | -748.8 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -14.35 | 246.01 | 18.38 | 220.63 | 0.4711 | -675.0 | -507.4 | |
| 3.26 | 34.76 | 1.84 | 19.60 | -15.02 | 245.80 | 18.18 | 219.38 | 0.4768 | -1056.4 | -674.6 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -14.72 | 245.68 | 18.05 | 219.60 | 0.4722 | -949.0 | -820.7 | |
| 5.56 | -79.00 | 3.13 | -79.00 | -15.14 | 245.65 | 18.02 | 218.97 | 0.4768 | -1187.2 | 999999 | |
| 12.79 | -79.00 | 7.22 | -79.00 | -15.50 | 245.68 | 18.06 | 218.54 | 0.4813 | -979.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -16.78 | 245.08 | 17.45 | 215.95 | 0.4910 | -795.0 | -648.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -15.19 | 244.41 | 16.79 | 216.94 | 0.4657 | 760.0 | 634.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.76 | 244.06 | 16.43 | 216.93 | 0.4571 | 809.0 | 668.4 | |
| 0.00 | 2.03 | 0.00 | 1.12 | -14.55 | 243.59 | 15.96 | 216.42 | 0.4501 | 640.0 | 438.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
