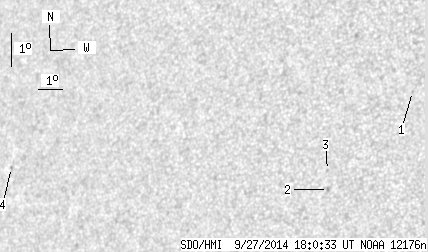

SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.94 | 0.00 | 3.21 | 12.14 | 187.62 | -40.01 | 78.95 | 0.6388 | -417.2 | -293.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.48 | 14.85 | 193.80 | -33.83 | 73.61 | 0.5631 | -721.0 | -529.3 | |
| 0.00 | 2.03 | 0.00 | 1.25 | 11.69 | 191.14 | -36.49 | 79.59 | 0.5943 | -769.0 | -637.7 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 12.26 | 191.01 | -36.62 | 78.65 | 0.5967 | -626.0 | -535.3 | |
| 0.00 | 1.24 | 0.00 | 0.94 | 11.30 | 177.82 | -49.81 | 80.99 | 0.7608 | 447.0 | 424.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
