SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.04 | 235.61 | 63.36 | 218.81 | 12.42 | 169.26 | -58.37 | 79.61 | 0.8464 | -108.5 | 0.2 | |
|
previous
or next observation for the same group /

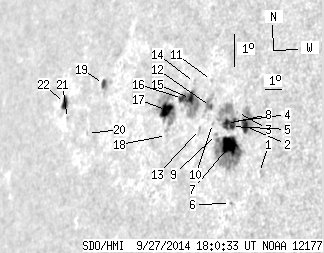

back to the solar disc SDO HMI 2014-09-27 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.74 | 11.23 | 173.11 | -54.52 | 81.09 | 0.8106 | -626.0 | -427.0 | |
| 5.65 | 25.32 | 4.89 | 21.88 | 12.52 | 171.97 | -55.66 | 79.50 | 0.8220 | -816.4 | -460.5 | |
| 0.00 | 0.79 | 0.00 | 0.70 | 12.90 | 171.40 | -56.23 | 79.05 | 0.8275 | -441.0 | -382.9 | |
| 1.94 | 33.61 | 1.71 | 29.84 | 12.61 | 171.27 | -56.35 | 79.40 | 0.8287 | -614.8 | -0.8 | |
| 2.82 | -4.00 | 2.49 | -4.00 | 12.45 | 171.21 | -56.41 | 79.59 | 0.8292 | -652.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.77 | 10.16 | 171.84 | -55.79 | 82.37 | 0.8234 | -617.0 | -582.9 | |
| 20.29 | 65.90 | 17.85 | 58.05 | 11.88 | 171.29 | -56.34 | 80.29 | 0.8285 | -779.2 | -197.8 | |
| 4.76 | -4.00 | 4.23 | -4.00 | 12.51 | 170.91 | -56.71 | 79.52 | 0.8321 | -358.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.19 | 12.13 | 170.47 | -57.15 | 79.97 | 0.8362 | -261.0 | -180.7 | |
| 0.00 | 0.97 | 0.00 | 0.88 | 12.44 | 170.14 | -57.49 | 79.61 | 0.8393 | -197.0 | -89.1 | |
| 0.00 | 0.97 | 0.00 | 0.89 | 13.70 | 169.62 | -58.01 | 78.10 | 0.8442 | -257.0 | -187.5 | |
| 0.88 | 10.85 | 0.80 | 9.93 | 12.93 | 169.85 | -57.78 | 79.02 | 0.8420 | -198.2 | -61.9 | |
| 0.00 | 1.32 | 0.00 | 1.22 | 12.19 | 169.47 | -58.16 | 79.90 | 0.8455 | -88.0 | -30.1 | |
| 0.00 | 1.50 | 0.00 | 1.41 | 13.55 | 168.67 | -58.96 | 78.30 | 0.8528 | 225.0 | 183.9 | |
| 8.03 | 33.61 | 7.58 | 31.70 | 13.05 | 168.62 | -59.01 | 78.88 | 0.8532 | 810.7 | 497.2 | |
| 3.71 | -15.00 | 3.54 | -15.00 | 13.00 | 168.15 | -59.48 | 78.93 | 0.8573 | 634.6 | 999999 | |
| 11.29 | 41.55 | 11.05 | 40.68 | 12.55 | 167.34 | -60.29 | 79.45 | 0.8644 | 648.3 | 259.6 | |
| 0.00 | 0.97 | 0.00 | 0.94 | 11.81 | 167.61 | -60.01 | 80.31 | 0.8621 | 427.0 | 332.1 | |
| 2.29 | 5.56 | 2.58 | 6.23 | 12.92 | 162.93 | -64.69 | 78.94 | 0.8996 | -533.1 | -334.4 | |
| 0.00 | 0.97 | 0.00 | 1.11 | 11.34 | 162.49 | -65.14 | 80.69 | 0.9033 | -350.0 | -294.0 | |
| 0.00 | 1.32 | 0.00 | 1.61 | 11.62 | 160.84 | -66.79 | 80.30 | 0.9150 | 273.0 | 309.7 | |
| 5.38 | 7.32 | 6.64 | 9.04 | 12.03 | 160.40 | -67.23 | 79.83 | 0.9179 | 288.3 | 195.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
