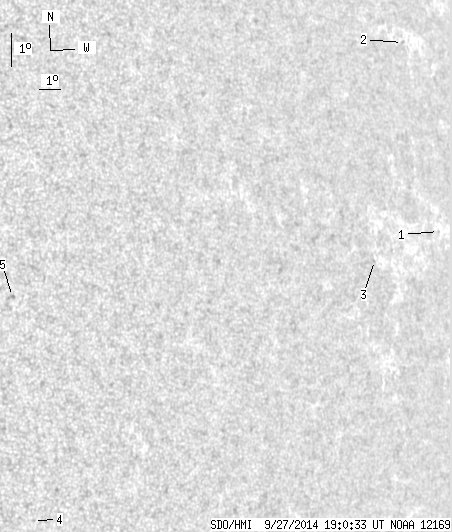

SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.76 | 0.00 | 3.84 | 7.39 | 278.98 | 51.91 | 273.56 | 0.7759 | 305.8 | 197.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.27 | 6.82 | 288.28 | 61.21 | 273.99 | 0.8743 | 393.0 | 372.3 | |
| 0.00 | 1.15 | 0.00 | 1.14 | 12.63 | 287.82 | 60.75 | 280.64 | 0.8683 | -576.0 | -512.8 | |
| 0.00 | 0.97 | 0.00 | 0.88 | 6.35 | 284.37 | 57.30 | 273.11 | 0.8397 | 484.0 | 441.9 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -0.03 | 268.11 | 41.03 | 262.13 | 0.6650 | 517.0 | 477.6 | |
| 0.00 | 1.50 | 0.00 | 0.97 | 6.77 | 267.62 | 40.55 | 272.38 | 0.6484 | 711.0 | 590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
