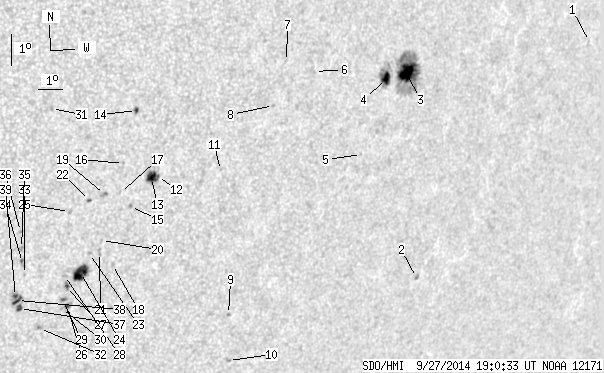

SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.63 | 192.87 | 35.56 | 129.72 | -10.45 | 265.60 | 38.53 | 245.46 | 0.6740 | 130.8 | 105.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.44 | -8.12 | 278.98 | 51.91 | 254.69 | 0.8100 | 400.0 | 335.0 | |
| 0.00 | 2.12 | 0.00 | 1.63 | -14.93 | 272.47 | 45.40 | 243.90 | 0.7684 | 652.0 | 497.3 | |
| 16.41 | 79.22 | 11.72 | 56.65 | -8.32 | 270.70 | 43.63 | 251.43 | 0.7225 | 1004.3 | 269.8 | |
| 7.50 | 19.32 | 5.28 | 13.60 | -8.43 | 269.88 | 42.81 | 250.92 | 0.7136 | 950.2 | 629.7 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -10.75 | 269.20 | 42.13 | 247.55 | 0.7154 | 638.0 | 555.4 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -7.97 | 266.90 | 39.83 | 250.17 | 0.6766 | 666.0 | 607.0 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -7.57 | 265.76 | 38.68 | 250.17 | 0.6609 | 618.0 | 578.3 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -8.91 | 265.41 | 38.33 | 248.09 | 0.6627 | -592.0 | -459.1 | |
| 0.00 | 1.32 | 0.00 | 0.90 | -15.47 | 264.75 | 37.68 | 238.84 | 0.6907 | 693.0 | 628.4 | |
| 0.00 | 2.47 | 0.00 | 1.72 | -16.99 | 265.10 | 38.02 | 237.15 | 0.7035 | -702.0 | -457.8 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -10.80 | 263.62 | 36.54 | 244.37 | 0.6509 | -526.0 | -471.7 | |
| 0.79 | 11.91 | 0.50 | 7.51 | -10.82 | 261.25 | 34.17 | 242.80 | 0.6226 | 520.9 | 559.0 | |
| 6.97 | -12.00 | 4.39 | -12.00 | -10.84 | 261.03 | 33.95 | 242.62 | 0.6201 | 918.9 | 999999 | |
| 1.06 | 2.56 | 0.65 | 1.58 | -8.69 | 260.24 | 33.16 | 245.28 | 0.5975 | 757.8 | 553.6 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -11.70 | 260.37 | 33.30 | 240.89 | 0.6175 | 654.0 | 514.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.32 | 259.94 | 32.86 | 242.60 | 0.6036 | 623.0 | 484.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -11.23 | 259.94 | 32.87 | 241.26 | 0.6094 | 696.0 | 611.1 | |
| 0.00 | 1.68 | 0.00 | 1.06 | -13.52 | 259.97 | 32.90 | 238.02 | 0.6248 | -72.0 | -172.1 | |
| 0.00 | 3.18 | 0.00 | 1.97 | -11.26 | 259.36 | 32.29 | 240.78 | 0.6025 | 677.0 | 578.2 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -12.72 | 259.45 | 32.37 | 238.73 | 0.6133 | -435.0 | -383.3 | |
| 0.00 | 2.65 | 0.00 | 1.66 | -13.10 | 259.43 | 32.36 | 238.18 | 0.6157 | -695.0 | -584.4 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -11.41 | 258.84 | 31.76 | 240.15 | 0.5972 | 774.0 | 627.6 | |
| 0.00 | 1.85 | 0.00 | 1.16 | -13.10 | 259.07 | 31.99 | 237.88 | 0.6115 | -613.0 | -458.6 | |
| 13.14 | 18.00 | 8.22 | 11.26 | -13.70 | 258.83 | 31.75 | 236.85 | 0.6129 | -925.6 | -554.1 | |
| 0.00 | 2.03 | 0.00 | 1.24 | -11.71 | 258.16 | 31.08 | 239.15 | 0.5910 | 505.0 | 541.1 | |
| 0.88 | 3.26 | 0.55 | 2.05 | -14.77 | 258.52 | 31.44 | 235.11 | 0.6172 | -746.9 | -557.8 | |
| 0.97 | 2.73 | 0.61 | 1.71 | -14.11 | 258.38 | 31.30 | 235.90 | 0.6108 | -985.3 | -806.3 | |
| 0.00 | 1.85 | 0.00 | 1.15 | -13.75 | 258.25 | 31.18 | 236.29 | 0.6067 | -125.0 | -150.0 | |
| 0.53 | 2.21 | 0.33 | 1.38 | -14.53 | 258.30 | 31.22 | 235.25 | 0.6129 | -881.8 | -726.0 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -14.82 | 258.31 | 31.23 | 234.86 | 0.6152 | -493.0 | -397.3 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -8.42 | 257.17 | 30.10 | 243.45 | 0.5567 | -164.0 | -200.5 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -15.41 | 257.61 | 30.53 | 233.43 | 0.6120 | -714.0 | -636.4 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -13.63 | 256.80 | 29.72 | 235.20 | 0.5890 | -661.0 | -533.1 | |
| 0.00 | 2.47 | 0.00 | 1.51 | -13.24 | 256.67 | 29.60 | 235.65 | 0.5846 | -929.0 | -748.1 | |
| 0.00 | 2.56 | 0.00 | 1.55 | -12.78 | 256.58 | 29.50 | 236.22 | 0.5800 | -779.0 | -677.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -12.24 | 256.48 | 29.40 | 236.94 | 0.5746 | -631.0 | -522.7 | |
| 1.85 | 13.41 | 1.14 | 8.24 | -14.72 | 256.78 | 29.70 | 233.65 | 0.5973 | -828.7 | -712.3 | |
| 2.47 | -37.00 | 1.52 | -37.00 | -14.45 | 256.67 | 29.59 | 233.91 | 0.5939 | -881.8 | 999999 | |
| 1.06 | -37.00 | 0.65 | -37.00 | -14.32 | 256.57 | 29.50 | 234.02 | 0.5918 | -996.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
