SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 229.55 | 1083.47 | 139.95 | 659.33 | 14.88 | 262.09 | 35.02 | 286.32 | 0.5795 | -53.6 | -56.9 | |
|
previous
or next observation for the same group /

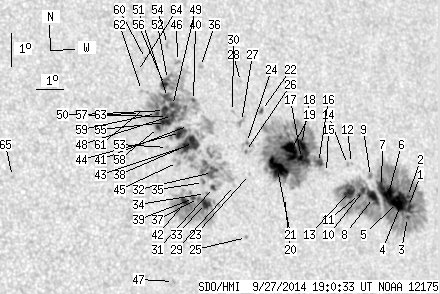

back to the solar disc SDO HMI 2014-09-27 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 353.86 | 4.42 | 224.87 | 13.32 | 266.73 | 39.66 | 282.62 | 0.6387 | -745.4 | -339.8 | |
| 1.76 | -1.00 | 1.13 | -1.00 | 13.62 | 266.75 | 39.68 | 283.10 | 0.6393 | -594.5 | 999999 | |
| 1.41 | -1.00 | 0.90 | -1.00 | 12.99 | 266.63 | 39.55 | 282.13 | 0.6369 | -790.4 | 999999 | |
| 3.09 | -1.00 | 1.98 | -1.00 | 13.60 | 266.59 | 39.51 | 283.09 | 0.6372 | -846.4 | 999999 | |
| 19.85 | -1.00 | 12.68 | -1.00 | 13.47 | 266.32 | 39.24 | 282.93 | 0.6335 | -1113.9 | 999999 | |
| 15.79 | -1.00 | 10.05 | -1.00 | 13.77 | 266.02 | 38.94 | 283.44 | 0.6300 | -1044.5 | 999999 | |
| 8.65 | -1.00 | 5.49 | -1.00 | 14.00 | 265.79 | 38.71 | 283.85 | 0.6273 | -949.9 | 999999 | |
| 10.59 | -1.00 | 6.68 | -1.00 | 13.69 | 265.41 | 38.33 | 283.42 | 0.6218 | -1073.6 | 999999 | |
| 0.62 | 3.18 | 0.39 | 2.01 | 14.33 | 265.42 | 38.34 | 284.45 | 0.6229 | -722.4 | -564.2 | |
| 3.00 | -1.00 | 1.88 | -1.00 | 13.93 | 265.06 | 37.99 | 283.87 | 0.6176 | -977.6 | 999999 | |
| 1.94 | -1.00 | 1.22 | -1.00 | 13.82 | 264.88 | 37.81 | 283.73 | 0.6150 | -1011.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 14.78 | 264.76 | 37.68 | 285.30 | 0.6150 | -608.0 | -591.4 | |
| 12.35 | -1.00 | 7.70 | -1.00 | 13.94 | 264.51 | 37.44 | 283.99 | 0.6103 | -1052.5 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.88 | 14.76 | 264.60 | 37.52 | 285.30 | 0.6129 | -783.0 | -675.9 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 14.58 | 263.74 | 36.67 | 285.19 | 0.6011 | 470.0 | 319.8 | |
| 4.59 | 273.84 | 2.83 | 167.04 | 14.90 | 263.49 | 36.42 | 285.79 | 0.5985 | 282.7 | -469.8 | |
| 5.82 | -16.00 | 3.57 | -16.00 | 15.06 | 262.87 | 35.80 | 286.22 | 0.5904 | -1177.4 | 999999 | |
| 6.53 | -16.00 | 4.01 | -16.00 | 15.49 | 262.96 | 35.88 | 286.90 | 0.5925 | -982.1 | 999999 | |
| 16.76 | -16.00 | 10.23 | -16.00 | 15.30 | 262.50 | 35.42 | 286.73 | 0.5859 | -1459.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 13.93 | 262.01 | 34.94 | 284.51 | 0.5763 | 203.0 | 185.1 | |
| 22.94 | -16.00 | 13.89 | -16.00 | 14.82 | 261.91 | 34.83 | 286.07 | 0.5768 | 746.8 | 999999 | |
| 0.88 | 2.21 | 0.53 | 1.34 | 16.62 | 261.65 | 34.58 | 289.21 | 0.5781 | -882.3 | -708.9 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 14.71 | 260.83 | 33.76 | 286.18 | 0.5618 | 342.0 | 285.5 | |
| 0.35 | 5.03 | 0.21 | 3.01 | 15.69 | 260.90 | 33.83 | 287.86 | 0.5652 | 373.8 | -92.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 12.82 | 260.41 | 33.34 | 282.92 | 0.5519 | 673.0 | 595.5 | |
| 0.35 | 2.38 | 0.21 | 1.43 | 15.42 | 260.81 | 33.74 | 287.42 | 0.5633 | 449.0 | 383.6 | |
| 0.00 | 4.94 | 0.00 | 2.96 | 16.33 | 260.84 | 33.76 | 289.01 | 0.5663 | -913.0 | -730.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 17.55 | 261.05 | 33.98 | 291.02 | 0.5730 | -711.0 | -625.5 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 14.42 | 260.22 | 33.15 | 285.83 | 0.5526 | -540.0 | -365.0 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 16.66 | 260.56 | 33.49 | 289.67 | 0.5635 | -606.0 | -521.8 | |
| 1.85 | 7.50 | 1.09 | 4.42 | 14.41 | 259.45 | 32.37 | 286.05 | 0.5417 | 805.0 | 164.0 | |
| 6.09 | 138.68 | 3.59 | 81.56 | 14.86 | 259.48 | 32.41 | 286.86 | 0.5434 | 714.9 | 415.9 | |
| 7.06 | 96.34 | 4.13 | 56.13 | 13.94 | 259.08 | 32.00 | 285.30 | 0.5354 | 980.6 | 505.8 | |
| 0.00 | 1.85 | 0.00 | 1.09 | 14.24 | 259.13 | 32.05 | 285.85 | 0.5368 | 744.0 | 755.7 | |
| 0.53 | 2.47 | 0.31 | 1.45 | 14.58 | 259.11 | 32.03 | 286.47 | 0.5374 | 980.8 | 874.6 | |
| 0.00 | 2.65 | 0.00 | 1.58 | 18.10 | 259.66 | 32.58 | 292.56 | 0.5564 | -211.0 | -305.1 | |
| 0.26 | -33.00 | 0.15 | -33.00 | 14.11 | 258.85 | 31.77 | 285.68 | 0.5325 | 1008.0 | 999999 | |
| 9.97 | -32.00 | 5.85 | -32.00 | 15.81 | 258.95 | 31.88 | 288.78 | 0.5388 | 842.6 | 999999 | |
| 1.50 | -33.00 | 0.87 | -33.00 | 14.12 | 258.67 | 31.59 | 285.76 | 0.5300 | 924.0 | 999999 | |
| 0.88 | 154.30 | 0.52 | 90.30 | 17.08 | 259.19 | 32.11 | 290.97 | 0.5463 | 456.1 | 502.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 16.34 | 258.86 | 31.79 | 289.77 | 0.5392 | 239.0 | 208.9 | |
| 5.38 | -33.00 | 3.13 | -33.00 | 14.05 | 258.36 | 31.29 | 285.72 | 0.5255 | 1170.6 | 999999 | |
| 11.12 | -32.00 | 6.50 | -32.00 | 15.71 | 258.60 | 31.53 | 288.73 | 0.5336 | 1127.8 | 999999 | |
| 10.15 | -32.00 | 5.93 | -32.00 | 16.14 | 258.53 | 31.46 | 289.55 | 0.5340 | 1061.3 | 999999 | |
| 0.00 | 4.41 | 0.00 | 2.57 | 15.24 | 258.27 | 31.19 | 287.99 | 0.5274 | 825.0 | 814.4 | |
| 0.00 | 3.18 | 0.00 | 1.87 | 18.31 | 258.84 | 31.76 | 293.30 | 0.5463 | 588.0 | 484.3 | |
| 0.00 | 1.59 | 0.00 | 0.91 | 11.67 | 257.60 | 30.53 | 281.35 | 0.5094 | 394.0 | 392.1 | |
| 3.00 | -40.00 | 1.75 | -40.00 | 16.68 | 258.33 | 31.26 | 290.61 | 0.5332 | 898.7 | 999999 | |
| 2.56 | -40.00 | 1.50 | -40.00 | 16.98 | 258.39 | 31.32 | 291.13 | 0.5350 | 812.1 | 999999 | |
| 1.94 | -40.00 | 1.13 | -40.00 | 16.66 | 258.15 | 31.07 | 290.65 | 0.5305 | 1145.9 | 999999 | |
| 4.41 | -40.00 | 2.58 | -40.00 | 17.23 | 258.25 | 31.18 | 291.66 | 0.5341 | 832.0 | 999999 | |
| 0.26 | -40.00 | 0.16 | -40.00 | 17.78 | 258.36 | 31.29 | 292.60 | 0.5377 | 711.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.97 | 15.72 | 257.98 | 30.91 | 288.99 | 0.5250 | 899.0 | 699.1 | |
| 0.00 | 3.09 | 0.00 | 1.82 | 18.85 | 258.58 | 31.50 | 294.38 | 0.5451 | 771.0 | 603.0 | |
| 6.26 | -40.00 | 3.65 | -40.00 | 16.48 | 258.04 | 30.97 | 290.37 | 0.5284 | 1139.3 | 999999 | |
| 3.62 | -40.00 | 2.12 | -40.00 | 17.63 | 258.22 | 31.15 | 292.40 | 0.5353 | 945.0 | 999999 | |
| 4.68 | -40.00 | 2.73 | -40.00 | 16.85 | 258.07 | 31.00 | 291.03 | 0.5302 | 1137.8 | 999999 | |
| 2.03 | -40.00 | 1.18 | -40.00 | 16.34 | 257.76 | 30.69 | 290.25 | 0.5240 | 1163.7 | 999999 | |
| 1.85 | -40.00 | 1.08 | -40.00 | 16.77 | 257.77 | 30.69 | 291.04 | 0.5257 | 1215.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.77 | 18.47 | 257.68 | 30.61 | 294.18 | 0.5315 | 524.0 | 534.0 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 16.95 | 257.36 | 30.28 | 291.56 | 0.5207 | 377.0 | 304.8 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 17.50 | 257.35 | 30.28 | 292.59 | 0.5229 | 804.0 | 728.1 | |
| 0.00 | 3.00 | 0.00 | 1.73 | 16.81 | 257.19 | 30.11 | 291.37 | 0.5178 | 645.0 | 696.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 18.09 | 257.32 | 30.24 | 293.68 | 0.5249 | 859.0 | 747.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 15.14 | 252.41 | 25.34 | 290.57 | 0.4430 | 610.0 | 502.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
