SDO HMI 2014-09-27 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.45 | 263.07 | 60.91 | 236.28 | 12.38 | 169.42 | -57.10 | 79.66 | 0.8348 | -89.6 | -15.9 | |
|
previous
or next observation for the same group /

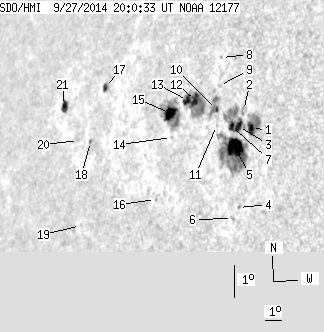

back to the solar disc SDO HMI 2014-09-27 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.82 | 141.77 | 4.91 | 121.46 | 12.54 | 171.94 | -54.58 | 79.47 | 0.8113 | -858.5 | -233.4 | |
| 0.00 | 4.76 | 0.00 | 4.07 | 13.03 | 171.35 | -55.17 | 78.87 | 0.8172 | -382.0 | -293.1 | |
| 5.12 | -1.00 | 4.38 | -1.00 | 12.53 | 171.24 | -55.28 | 79.49 | 0.8183 | -649.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.74 | 10.13 | 171.93 | -54.60 | 82.45 | 0.8116 | -638.0 | -518.0 | |
| 19.94 | -1.00 | 17.08 | -1.00 | 11.89 | 171.28 | -55.24 | 80.27 | 0.8179 | -830.5 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.57 | 9.77 | 171.69 | -54.83 | 82.88 | 0.8140 | -532.0 | -373.3 | |
| 3.18 | -1.00 | 2.75 | -1.00 | 12.50 | 170.87 | -55.65 | 79.53 | 0.8219 | -368.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.79 | 14.49 | 169.59 | -56.93 | 77.15 | 0.8343 | -430.0 | -398.9 | |
| 0.00 | 1.15 | 0.00 | 1.02 | 13.65 | 169.80 | -56.72 | 78.15 | 0.8322 | -240.0 | -195.6 | |
| 1.15 | 12.70 | 1.02 | 11.30 | 12.92 | 169.89 | -56.63 | 79.03 | 0.8313 | -200.5 | -35.5 | |
| 0.00 | 0.62 | 0.00 | 0.54 | 12.45 | 170.05 | -56.47 | 79.60 | 0.8297 | -183.0 | -103.1 | |
| 8.03 | 37.85 | 7.35 | 34.64 | 13.07 | 168.63 | -57.89 | 78.85 | 0.8431 | 839.8 | 530.4 | |
| 5.12 | -12.00 | 4.74 | -12.00 | 13.03 | 168.18 | -58.34 | 78.91 | 0.8472 | 664.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.58 | 11.84 | 167.65 | -58.87 | 80.30 | 0.8520 | 554.0 | 474.6 | |
| 10.59 | 45.35 | 10.04 | 42.97 | 12.54 | 167.34 | -59.18 | 79.47 | 0.8547 | 692.1 | 300.8 | |
| 0.00 | 0.44 | 0.00 | 0.42 | 9.92 | 167.31 | -59.21 | 82.55 | 0.8555 | 332.0 | 292.6 | |
| 2.38 | 3.79 | 2.58 | 4.10 | 12.89 | 162.98 | -63.54 | 79.01 | 0.8909 | -501.1 | -461.1 | |
| 0.00 | 1.59 | 0.00 | 1.74 | 11.20 | 162.66 | -63.86 | 80.89 | 0.8937 | -329.0 | -270.7 | |
| 0.00 | 0.62 | 0.00 | 0.68 | 8.66 | 162.87 | -63.65 | 83.75 | 0.8931 | 279.0 | 230.9 | |
| 0.00 | 0.79 | 0.00 | 0.89 | 11.15 | 161.83 | -64.69 | 80.92 | 0.9000 | 74.0 | 52.9 | |
| 5.12 | 7.41 | 6.06 | 8.77 | 12.03 | 160.39 | -66.13 | 79.88 | 0.9103 | 418.5 | 213.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
