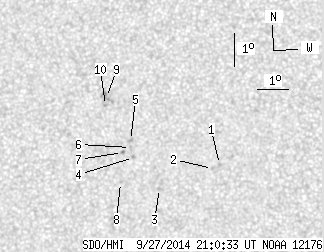

SDO HMI 2014-09-27 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.44 | 0.00 | 11.25 | 7.30 | 206.58 | -19.39 | 87.64 | 0.3314 | 486.8 | 484.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | 6.57 | 209.34 | -16.63 | 90.06 | 0.2856 | -906.0 | -720.9 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 6.44 | 209.12 | -16.85 | 90.48 | 0.2893 | -816.0 | -646.6 | |
| 0.00 | 2.12 | 0.00 | 1.11 | 5.78 | 207.46 | -18.51 | 92.33 | 0.3175 | 847.0 | 624.8 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 6.68 | 206.60 | -19.37 | 89.41 | 0.3309 | 910.0 | 777.5 | |
| 0.00 | 2.56 | 0.00 | 1.34 | 7.19 | 206.48 | -19.49 | 87.87 | 0.3327 | 950.0 | 624.1 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 6.98 | 206.49 | -19.48 | 88.50 | 0.3326 | 853.0 | 686.8 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 6.82 | 206.24 | -19.73 | 88.97 | 0.3367 | 834.0 | 689.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 5.92 | 206.21 | -19.76 | 91.65 | 0.3379 | 633.0 | 485.4 | |
| 0.00 | 7.41 | 0.00 | 3.91 | 8.45 | 205.65 | -20.32 | 84.20 | 0.3468 | 734.0 | 685.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 8.21 | 205.63 | -20.34 | 84.90 | 0.3469 | 829.0 | 598.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
