SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 348.93 | 1658.63 | 188.99 | 897.53 | -11.32 | 239.90 | 14.49 | 217.06 | 0.4016 | -56.1 | -39.3 | |
|
previous
or next observation for the same group /

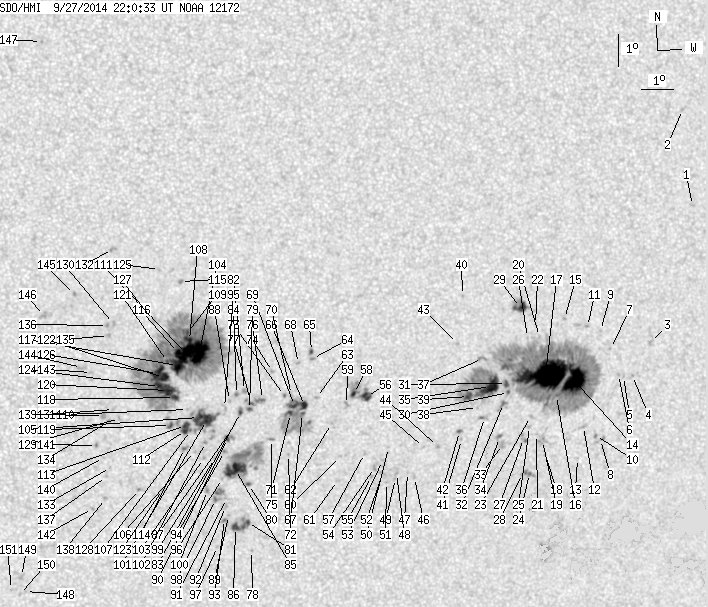

back to the solar disc SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.89 | -5.97 | 250.53 | 25.11 | 243.44 | 0.4738 | 674.0 | 540.2 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -3.00 | 250.09 | 24.68 | 248.93 | 0.4486 | 787.0 | 536.5 | |
| 0.00 | 2.91 | 0.00 | 1.65 | -10.16 | 249.40 | 23.98 | 234.74 | 0.4919 | 867.0 | 614.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.17 | 248.88 | 23.46 | 232.46 | 0.4945 | 697.0 | 593.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -11.19 | 248.58 | 23.16 | 232.08 | 0.4911 | 549.0 | 555.7 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -11.12 | 248.41 | 22.99 | 231.99 | 0.4884 | 683.0 | 590.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.28 | 248.07 | 22.66 | 232.97 | 0.4767 | -691.0 | -549.8 | |
| 0.00 | 3.00 | 0.00 | 1.72 | -13.16 | 247.99 | 22.57 | 228.25 | 0.5030 | -701.0 | -601.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -9.70 | 247.70 | 22.28 | 233.51 | 0.4668 | 515.0 | 315.7 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -13.02 | 247.81 | 22.39 | 228.23 | 0.4996 | -687.0 | -635.6 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -9.55 | 247.26 | 21.85 | 233.22 | 0.4601 | 816.0 | 638.8 | |
| 0.00 | 3.26 | 0.00 | 1.85 | -12.71 | 247.38 | 21.96 | 228.15 | 0.4918 | 112.0 | -121.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.73 | 247.28 | 21.86 | 226.47 | 0.5009 | -679.0 | -370.6 | |
| 35.91 | 503.90 | 20.16 | 281.01 | -11.24 | 246.96 | 21.54 | 229.96 | 0.4723 | 1107.8 | 436.9 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -9.27 | 246.49 | 21.07 | 232.72 | 0.4479 | 839.0 | 587.2 | |
| 0.26 | -14.00 | 0.15 | -14.00 | -11.68 | 246.40 | 20.98 | 228.48 | 0.4703 | 587.7 | 999999 | |
| 84.62 | -14.00 | 47.12 | -14.00 | -11.00 | 245.99 | 20.57 | 229.03 | 0.4587 | 1383.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -13.55 | 246.20 | 20.78 | 225.29 | 0.4873 | -466.0 | -430.7 | |
| 0.00 | 7.76 | 0.00 | 4.38 | -13.10 | 246.06 | 20.64 | 225.78 | 0.4810 | -312.0 | -275.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -9.80 | 245.71 | 20.29 | 230.72 | 0.4434 | 228.0 | 170.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.90 | 245.84 | 20.42 | 225.79 | 0.4765 | 510.0 | 305.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -9.41 | 245.56 | 20.14 | 231.19 | 0.4378 | 642.0 | 551.9 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -12.31 | 245.60 | 20.18 | 226.35 | 0.4677 | 789.0 | 558.5 | |
| 0.53 | 5.21 | 0.30 | 2.95 | -14.14 | 245.72 | 20.30 | 223.76 | 0.4885 | -864.2 | -762.6 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -12.63 | 245.59 | 20.17 | 225.84 | 0.4710 | 576.0 | 435.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -9.81 | 245.32 | 19.90 | 230.15 | 0.4388 | 629.0 | 557.3 | |
| 0.00 | 4.50 | 0.00 | 2.53 | -13.01 | 245.42 | 20.01 | 225.03 | 0.4731 | 597.0 | 648.1 | |
| 0.00 | 1.94 | 0.00 | 1.10 | -14.13 | 245.49 | 20.07 | 223.44 | 0.4860 | -395.0 | -466.0 | |
| 7.50 | 15.71 | 4.10 | 8.59 | -8.86 | 245.04 | 19.62 | 231.46 | 0.4260 | 1107.7 | 679.6 | |
| 0.79 | 6.26 | 0.44 | 3.47 | -11.52 | 244.82 | 19.40 | 226.50 | 0.4506 | 755.6 | 737.8 | |
| 2.12 | -30.00 | 1.17 | -30.00 | -11.23 | 244.73 | 19.32 | 226.85 | 0.4466 | 1000.0 | 999999 | |
| 0.88 | 5.29 | 0.49 | 2.94 | -11.86 | 244.68 | 19.26 | 225.74 | 0.4527 | 887.1 | 595.2 | |
| 0.00 | 3.62 | 0.00 | 2.03 | -13.17 | 244.75 | 19.33 | 223.80 | 0.4676 | -495.0 | -360.4 | |
| 0.00 | 3.79 | 0.00 | 2.12 | -12.94 | 244.63 | 19.21 | 223.97 | 0.4639 | 389.0 | 74.2 | |
| 17.47 | 95.56 | 9.64 | 52.57 | -11.30 | 244.22 | 18.80 | 225.95 | 0.4416 | 1161.0 | 609.8 | |
| 0.00 | 3.97 | 0.00 | 2.20 | -12.28 | 244.09 | 18.68 | 224.18 | 0.4508 | 815.0 | 609.2 | |
| 0.00 | 4.15 | 0.00 | 2.27 | -10.41 | 243.90 | 18.49 | 226.98 | 0.4284 | 861.0 | 734.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -11.95 | 243.84 | 18.43 | 224.31 | 0.4445 | 493.0 | 451.5 | |
| 4.59 | -35.00 | 2.52 | -35.00 | -11.59 | 243.53 | 18.11 | 224.40 | 0.4370 | 992.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -8.41 | 243.16 | 17.74 | 229.44 | 0.3984 | 885.0 | 750.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -12.95 | 243.40 | 17.98 | 222.05 | 0.4510 | 757.0 | 635.0 | |
| 0.79 | 2.29 | 0.44 | 1.27 | -12.69 | 243.31 | 17.90 | 222.31 | 0.4472 | 802.3 | 631.9 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -9.91 | 243.07 | 17.65 | 226.54 | 0.4134 | -748.0 | -513.4 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.15 | 242.63 | 17.22 | 220.53 | 0.4454 | 774.0 | 696.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.16 | 242.18 | 16.77 | 219.76 | 0.4410 | 853.0 | 664.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -14.12 | 241.96 | 16.54 | 218.01 | 0.4504 | 786.0 | 641.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.95 | 241.72 | 16.31 | 217.84 | 0.4460 | 634.0 | 570.5 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.96 | 241.37 | 15.95 | 217.21 | 0.4429 | 696.0 | 630.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.12 | 241.35 | 15.93 | 216.95 | 0.4447 | 540.0 | 479.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -13.12 | 241.06 | 15.64 | 217.87 | 0.4295 | 731.0 | 545.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -14.24 | 241.07 | 15.65 | 216.30 | 0.4435 | 678.0 | 475.9 | |
| 0.00 | 2.91 | 0.00 | 1.60 | -13.95 | 240.92 | 15.50 | 216.44 | 0.4385 | 632.0 | 547.0 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.53 | 240.89 | 15.47 | 216.98 | 0.4330 | 796.0 | 587.8 | |
| 0.00 | 3.26 | 0.00 | 1.79 | -13.75 | 240.65 | 15.23 | 216.24 | 0.4334 | 809.0 | 685.5 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.03 | 240.57 | 15.15 | 215.71 | 0.4363 | 686.0 | 545.7 | |
| 5.29 | 26.73 | 2.86 | 14.42 | -11.47 | 240.26 | 14.84 | 218.92 | 0.4013 | -897.7 | -201.9 | |
| 0.00 | 1.85 | 0.00 | 1.01 | -13.29 | 240.30 | 14.88 | 216.26 | 0.4244 | 670.0 | 550.4 | |
| 2.12 | -56.00 | 1.14 | -56.00 | -11.36 | 239.84 | 14.42 | 218.29 | 0.3957 | -729.6 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.76 | -11.71 | 239.64 | 14.22 | 217.36 | 0.3980 | 806.0 | 650.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -13.36 | 239.54 | 14.12 | 214.74 | 0.4183 | 611.0 | 462.7 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -14.13 | 239.49 | 14.07 | 213.60 | 0.4279 | 563.0 | 466.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.29 | 239.19 | 13.77 | 215.60 | 0.4014 | 492.0 | 406.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.45 | 238.68 | 13.26 | 215.83 | 0.3857 | 826.0 | 676.7 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -10.22 | 238.50 | 13.08 | 217.44 | 0.3679 | 912.0 | 740.9 | |
| 0.97 | 1.85 | 0.52 | 0.99 | -10.00 | 238.46 | 13.04 | 217.73 | 0.3647 | 1006.9 | 859.6 | |
| 3.79 | 70.32 | 2.04 | 37.77 | -11.70 | 238.31 | 12.89 | 214.70 | 0.3854 | 996.7 | 246.7 | |
| 0.88 | -66.00 | 0.47 | -66.00 | -11.95 | 238.26 | 12.84 | 214.22 | 0.3883 | 704.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -10.36 | 238.06 | 12.65 | 216.27 | 0.3656 | 925.0 | 732.6 | |
| 4.06 | -66.00 | 2.17 | -66.00 | -11.69 | 238.00 | 12.58 | 214.05 | 0.3825 | 1022.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.34 | 237.89 | 12.47 | 214.35 | 0.3768 | -695.0 | -562.9 | |
| 1.85 | -66.00 | 0.99 | -66.00 | -11.94 | 237.88 | 12.46 | 213.44 | 0.3848 | 811.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.24 | 237.88 | 12.46 | 211.62 | 0.4024 | -702.0 | -597.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.36 | 237.67 | 12.25 | 213.84 | 0.3752 | -935.0 | -830.3 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -10.59 | 237.26 | 11.84 | 214.13 | 0.3611 | -864.0 | -700.9 | |
| 0.00 | 1.94 | 0.00 | 1.04 | -12.75 | 237.32 | 11.90 | 211.11 | 0.3910 | 721.0 | 571.0 | |
| 0.53 | 12.53 | 0.28 | 6.68 | -11.47 | 236.98 | 11.56 | 212.17 | 0.3706 | -826.7 | -751.3 | |
| 0.88 | -76.00 | 0.47 | -76.00 | -11.59 | 236.64 | 11.23 | 211.24 | 0.3693 | -985.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.32 | 236.87 | 11.46 | 205.96 | 0.4373 | 368.0 | 366.6 | |
| 0.97 | -76.00 | 0.52 | -76.00 | -11.78 | 236.59 | 11.17 | 210.85 | 0.3715 | -888.3 | 999999 | |
| 0.79 | 2.74 | 0.43 | 1.48 | -14.17 | 236.66 | 11.25 | 207.91 | 0.4056 | 485.8 | 231.3 | |
| 1.50 | 16.50 | 0.82 | 9.01 | -15.40 | 236.70 | 11.28 | 206.58 | 0.4232 | -914.7 | -762.3 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -11.17 | 236.41 | 10.99 | 211.30 | 0.3616 | -898.0 | -756.9 | |
| 0.97 | 3.44 | 0.52 | 1.83 | -11.86 | 236.31 | 10.89 | 210.09 | 0.3704 | -903.6 | -815.0 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -11.29 | 236.16 | 10.75 | 210.56 | 0.3612 | -978.0 | -844.9 | |
| 18.79 | 84.09 | 10.13 | 45.29 | -13.68 | 236.23 | 10.81 | 207.58 | 0.3955 | -1072.6 | -207.7 | |
| 3.79 | -81.00 | 2.07 | -81.00 | -15.56 | 236.32 | 10.91 | 205.65 | 0.4227 | -1020.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.40 | 236.05 | 10.63 | 208.78 | 0.3759 | -733.0 | -550.0 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.48 | 235.95 | 10.53 | 209.80 | 0.3621 | -888.0 | -785.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.16 | 236.08 | 10.66 | 205.58 | 0.4155 | -883.0 | -733.8 | |
| 1.68 | 5.47 | 0.90 | 2.93 | -12.68 | 235.94 | 10.52 | 208.16 | 0.3791 | -950.9 | -652.3 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.61 | 235.99 | 10.57 | 205.99 | 0.4069 | -729.0 | -581.9 | |
| 0.00 | 2.12 | 0.00 | 1.15 | -14.87 | 235.97 | 10.55 | 205.66 | 0.4105 | -643.0 | -622.2 | |
| 0.35 | 3.00 | 0.19 | 1.63 | -15.29 | 235.96 | 10.54 | 205.19 | 0.4164 | -998.2 | -806.5 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -13.10 | 235.86 | 10.44 | 207.47 | 0.3844 | -999.0 | -814.9 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -11.69 | 235.80 | 10.39 | 209.15 | 0.3640 | -532.0 | -611.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.96 | 235.83 | 10.42 | 206.38 | 0.3966 | -701.0 | -607.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -16.16 | 235.78 | 10.36 | 203.93 | 0.4278 | -677.0 | -487.0 | |
| 0.62 | 10.76 | 0.33 | 5.82 | -14.63 | 235.64 | 10.23 | 205.22 | 0.4049 | -789.3 | -810.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -13.31 | 235.55 | 10.14 | 206.52 | 0.3853 | -781.0 | -576.2 | |
| 0.00 | 2.91 | 0.00 | 1.57 | -14.34 | 235.38 | 9.96 | 204.96 | 0.3988 | -891.0 | -751.1 | |
| 13.23 | 602.45 | 7.04 | 316.61 | -12.09 | 235.26 | 9.84 | 207.33 | 0.3655 | -995.7 | -490.8 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -12.79 | 235.25 | 9.83 | 206.45 | 0.3756 | -968.0 | -811.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.30 | 235.21 | 9.79 | 205.74 | 0.3827 | -738.0 | -654.5 | |
| 30.35 | -101.00 | 15.93 | -101.00 | -9.94 | 234.97 | 9.55 | 209.61 | 0.3323 | -1348.3 | 999999 | |
| 6.35 | -101.00 | 3.37 | -101.00 | -11.99 | 235.00 | 9.59 | 206.86 | 0.3622 | -1236.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.07 | 234.92 | 9.50 | 205.34 | 0.3773 | -529.0 | -558.2 | |
| 0.26 | -101.00 | 0.14 | -101.00 | -12.40 | 234.77 | 9.35 | 205.78 | 0.3665 | -728.3 | 999999 | |
| 4.59 | -101.00 | 2.40 | -101.00 | -9.56 | 234.65 | 9.23 | 209.35 | 0.3242 | -1378.0 | 999999 | |
| 1.06 | -101.00 | 0.55 | -101.00 | -9.31 | 234.58 | 9.17 | 209.56 | 0.3200 | -1166.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -11.73 | 234.65 | 9.24 | 206.33 | 0.3558 | -867.0 | -741.2 | |
| 19.68 | -101.00 | 10.32 | -101.00 | -9.96 | 234.57 | 9.15 | 208.53 | 0.3294 | -1575.5 | 999999 | |
| 3.18 | -101.00 | 1.69 | -101.00 | -12.40 | 234.61 | 9.20 | 205.41 | 0.3653 | -840.1 | 999999 | |
| 3.35 | -101.00 | 1.78 | -101.00 | -12.24 | 234.61 | 9.19 | 205.59 | 0.3629 | -1055.0 | 999999 | |
| 0.44 | 3.09 | 0.24 | 1.65 | -12.97 | 234.60 | 9.19 | 204.71 | 0.3737 | -790.0 | -610.7 | |
| 0.00 | 2.21 | 0.00 | 1.14 | -7.71 | 234.33 | 8.91 | 211.52 | 0.2950 | -1143.0 | -795.8 | |
| 4.59 | -101.00 | 2.40 | -101.00 | -9.93 | 234.32 | 8.90 | 207.93 | 0.3270 | -1541.7 | 999999 | |
| 12.26 | -101.00 | 6.44 | -101.00 | -10.33 | 234.30 | 8.88 | 207.29 | 0.3328 | -1174.4 | 999999 | |
| 4.15 | -101.00 | 2.19 | -101.00 | -11.34 | 234.24 | 8.82 | 205.78 | 0.3471 | -863.9 | 999999 | |
| 1.50 | -101.00 | 0.80 | -101.00 | -12.23 | 234.14 | 8.72 | 204.46 | 0.3596 | -808.8 | 999999 | |
| 12.18 | -101.00 | 6.42 | -101.00 | -11.12 | 234.01 | 8.60 | 205.50 | 0.3422 | -1051.3 | 999999 | |
| 1.32 | -101.00 | 0.69 | -101.00 | -10.20 | 233.99 | 8.57 | 206.65 | 0.3285 | -1293.3 | 999999 | |
| 7.50 | -101.00 | 3.94 | -101.00 | -10.70 | 233.88 | 8.46 | 205.68 | 0.3351 | -1198.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -14.27 | 233.96 | 8.54 | 201.83 | 0.3889 | -796.0 | -593.2 | |
| 7.59 | -101.00 | 3.99 | -101.00 | -10.99 | 233.76 | 8.35 | 205.01 | 0.3385 | -1152.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -7.33 | 233.68 | 8.26 | 210.28 | 0.2839 | -735.0 | -572.1 | |
| 10.06 | -101.00 | 5.28 | -101.00 | -10.57 | 233.69 | 8.27 | 205.34 | 0.3319 | -1278.4 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.51 | -8.91 | 233.53 | 8.11 | 207.23 | 0.3059 | -830.0 | -605.8 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -14.26 | 233.24 | 7.82 | 200.16 | 0.3845 | -850.0 | -715.2 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -11.98 | 232.55 | 7.13 | 200.66 | 0.3458 | -864.0 | -655.5 | |
| 0.00 | 2.38 | 0.00 | 1.24 | -8.98 | 232.30 | 6.88 | 203.49 | 0.2983 | -793.0 | -709.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.69 | 232.36 | 6.94 | 200.45 | 0.3403 | -937.0 | -797.3 | |
| 0.00 | 3.35 | 0.00 | 1.72 | -6.68 | 232.24 | 6.82 | 206.79 | 0.2628 | -917.0 | -773.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.54 | 232.31 | 6.90 | 198.55 | 0.3685 | -799.0 | -637.3 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -12.07 | 232.21 | 6.80 | 199.67 | 0.3453 | -750.0 | -656.1 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -9.35 | 232.16 | 6.74 | 202.56 | 0.3031 | -970.0 | -797.9 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -9.04 | 232.12 | 6.70 | 202.86 | 0.2980 | -1044.0 | -838.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -13.82 | 232.20 | 6.78 | 198.01 | 0.3724 | -709.0 | -469.4 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -14.53 | 232.19 | 6.77 | 197.40 | 0.3833 | -861.0 | -683.5 | |
| 0.00 | 3.35 | 0.00 | 1.77 | -11.87 | 232.05 | 6.64 | 199.43 | 0.3415 | -846.0 | -797.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.21 | 232.09 | 6.67 | 198.26 | 0.3624 | -663.0 | -494.3 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -12.82 | 231.86 | 6.44 | 198.02 | 0.3552 | -971.0 | -861.5 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -14.85 | 231.79 | 6.37 | 196.20 | 0.3863 | -730.0 | -573.4 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.51 | 231.66 | 6.24 | 199.72 | 0.3180 | -879.0 | -699.6 | |
| 0.00 | 3.71 | 0.00 | 1.93 | -10.35 | 231.35 | 5.93 | 198.98 | 0.3138 | -762.0 | -718.0 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.06 | 231.10 | 5.68 | 200.86 | 0.2764 | -964.0 | -849.9 | |
| 0.00 | 4.32 | 0.00 | 2.23 | -8.70 | 230.16 | 4.74 | 196.95 | 0.2816 | -784.0 | -698.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -0.30 | 230.05 | 4.64 | 212.99 | 0.1491 | -907.0 | -711.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -17.53 | 229.75 | 4.34 | 189.91 | 0.4209 | -789.0 | -611.6 | |
| 0.00 | 3.26 | 0.00 | 1.77 | -17.04 | 229.62 | 4.20 | 189.81 | 0.4128 | -964.0 | -684.8 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -17.63 | 229.57 | 4.15 | 189.45 | 0.4219 | -702.0 | -625.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.46 | 229.31 | 3.89 | 188.94 | 0.4186 | -792.0 | -659.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
