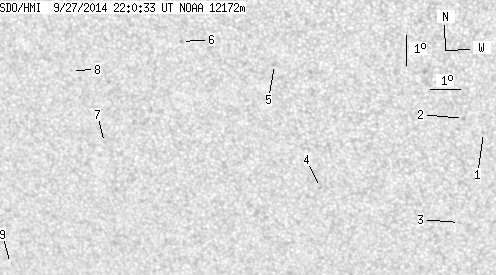

SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.62 | 0.00 | 5.46 | -16.22 | 208.42 | -17.00 | 144.80 | 0.4845 | -65.1 | 24.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.07 | 214.84 | -10.58 | 155.55 | 0.4279 | 543.0 | 449.5 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -15.63 | 214.23 | -11.19 | 153.85 | 0.4258 | 701.0 | 489.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -19.07 | 213.88 | -11.54 | 156.52 | 0.4764 | -473.0 | -338.3 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -18.03 | 209.43 | -15.99 | 147.85 | 0.4942 | 743.0 | 562.7 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -14.06 | 208.28 | -17.14 | 140.93 | 0.4555 | 573.0 | 475.4 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -13.44 | 205.29 | -20.13 | 135.46 | 0.4791 | -805.0 | -702.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -16.84 | 202.34 | -23.08 | 136.33 | 0.5455 | -740.0 | -512.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -14.55 | 201.50 | -23.92 | 132.15 | 0.5314 | -684.0 | -510.9 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -21.08 | 198.34 | -27.07 | 137.07 | 0.6258 | -444.0 | -448.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
