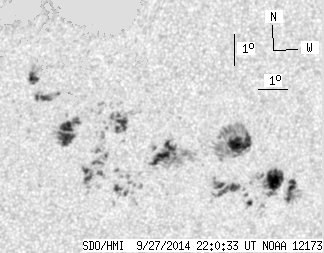

SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.37 | 449.04 | 88.73 | 266.05 | -16.19 | 249.52 | 24.10 | 225.60 | 0.5493 | -74.5 | 14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-27 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.47 | 22.68 | 1.53 | 14.11 | -17.36 | 253.72 | 28.30 | 228.75 | 0.6040 | 785.5 | 263.3 | |
| 4.50 | -1.00 | 2.80 | -1.00 | -17.55 | 253.71 | 28.30 | 228.49 | 0.6057 | 781.1 | 999999 | |
| 3.26 | -1.00 | 2.03 | -1.00 | -17.85 | 253.69 | 28.27 | 228.09 | 0.6081 | 721.2 | 999999 | |
| 24.88 | 39.18 | 15.32 | 24.12 | -17.22 | 253.05 | 27.63 | 228.27 | 0.5959 | 927.5 | 578.5 | |
| 1.32 | -4.00 | 0.82 | -4.00 | -17.67 | 252.98 | 27.56 | 227.61 | 0.5992 | 668.9 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.01 | -15.27 | 252.51 | 27.09 | 230.34 | 0.5729 | 416.0 | 329.8 | |
| 0.00 | 2.74 | 0.00 | 1.69 | -18.09 | 252.73 | 27.31 | 226.82 | 0.6004 | 590.0 | 470.3 | |
| 0.00 | 2.65 | 0.00 | 1.64 | -18.32 | 252.77 | 27.35 | 226.56 | 0.6029 | 444.0 | 404.4 | |
| 0.00 | 5.47 | 0.00 | 3.35 | -17.09 | 252.46 | 27.04 | 227.84 | 0.5886 | 711.0 | 745.7 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -17.81 | 252.51 | 27.09 | 226.94 | 0.5956 | 709.0 | 572.1 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -17.27 | 252.24 | 26.83 | 227.37 | 0.5880 | 717.0 | 620.7 | |
| 1.68 | 3.88 | 1.03 | 2.39 | -17.96 | 252.28 | 26.87 | 226.51 | 0.5947 | 732.6 | 594.3 | |
| 0.44 | 1.50 | 0.27 | 0.92 | -17.66 | 252.13 | 26.71 | 226.74 | 0.5903 | 785.4 | 659.5 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -17.48 | 251.99 | 26.58 | 226.82 | 0.5874 | 633.0 | 640.3 | |
| 26.12 | 94.06 | 15.71 | 56.43 | -15.96 | 251.63 | 26.21 | 228.46 | 0.5695 | 944.9 | 570.8 | |
| 5.12 | 25.50 | 3.11 | 15.47 | -17.40 | 251.66 | 26.25 | 226.58 | 0.5832 | 899.3 | 668.7 | |
| 3.79 | -16.00 | 2.30 | -16.00 | -17.51 | 251.30 | 25.88 | 226.04 | 0.5805 | 736.5 | 999999 | |
| 2.29 | -16.00 | 1.39 | -16.00 | -17.31 | 251.16 | 25.74 | 226.16 | 0.5771 | 928.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -17.82 | 250.92 | 25.50 | 225.23 | 0.5796 | 208.0 | 167.0 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -16.26 | 250.52 | 25.10 | 226.84 | 0.5606 | 360.0 | 201.4 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -16.61 | 250.47 | 25.05 | 226.30 | 0.5634 | 746.0 | 547.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -15.03 | 249.47 | 24.06 | 227.32 | 0.5376 | 816.0 | 669.1 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -16.60 | 249.57 | 24.15 | 225.28 | 0.5539 | 89.0 | 55.4 | |
| 5.91 | 59.91 | 3.48 | 35.41 | -15.93 | 249.21 | 23.79 | 225.76 | 0.5435 | -888.3 | -174.0 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -17.50 | 249.31 | 23.89 | 223.79 | 0.5604 | -568.0 | -465.4 | |
| 8.21 | -24.00 | 4.84 | -24.00 | -16.21 | 249.04 | 23.62 | 225.17 | 0.5446 | -945.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -14.77 | 248.73 | 23.31 | 226.80 | 0.5270 | 634.0 | 512.7 | |
| 3.97 | -24.00 | 2.34 | -24.00 | -16.39 | 248.79 | 23.37 | 224.62 | 0.5439 | -769.7 | 999999 | |
| 0.44 | 2.38 | 0.26 | 1.40 | -15.96 | 248.70 | 23.28 | 225.09 | 0.5387 | -910.2 | -709.2 | |
| 0.00 | 2.29 | 0.00 | 1.36 | -17.19 | 248.38 | 22.96 | 223.07 | 0.5479 | -633.0 | -467.2 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -16.76 | 248.32 | 22.90 | 223.56 | 0.5429 | -573.0 | -329.4 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -14.77 | 248.09 | 22.67 | 226.00 | 0.5201 | 47.0 | 52.1 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.54 | 248.00 | 22.59 | 224.81 | 0.5271 | -319.0 | -253.4 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -17.68 | 248.24 | 22.82 | 222.27 | 0.5515 | -590.0 | -444.6 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -17.15 | 248.17 | 22.75 | 222.86 | 0.5453 | -624.0 | -463.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -17.37 | 248.13 | 22.71 | 222.52 | 0.5473 | -463.0 | -384.8 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -17.04 | 247.98 | 22.57 | 222.77 | 0.5424 | -813.0 | -616.0 | |
| 0.00 | 2.03 | 0.00 | 1.19 | -16.84 | 247.92 | 22.51 | 222.96 | 0.5397 | -676.0 | -539.6 | |
| 0.79 | 10.94 | 0.47 | 6.44 | -17.40 | 247.89 | 22.47 | 222.20 | 0.5452 | -596.8 | -575.1 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -15.65 | 247.61 | 22.19 | 224.16 | 0.5242 | -301.0 | -203.4 | |
| 6.62 | 24.53 | 3.83 | 14.17 | -15.09 | 247.52 | 22.10 | 224.81 | 0.5174 | -777.2 | -521.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -16.83 | 247.68 | 22.27 | 222.67 | 0.5372 | -753.0 | -678.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -14.41 | 247.38 | 21.96 | 225.61 | 0.5089 | -433.0 | -361.8 | |
| 0.71 | -41.00 | 0.41 | -41.00 | -14.83 | 247.35 | 21.94 | 224.98 | 0.5130 | -816.0 | 999999 | |
| 2.65 | -39.00 | 1.56 | -39.00 | -17.22 | 247.60 | 22.18 | 222.05 | 0.5404 | -857.2 | 999999 | |
| 1.94 | -41.00 | 1.12 | -41.00 | -15.25 | 247.37 | 21.95 | 224.40 | 0.5175 | -755.1 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -16.62 | 247.49 | 22.07 | 222.69 | 0.5331 | -652.0 | -470.7 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -17.71 | 247.56 | 22.14 | 221.37 | 0.5453 | -516.0 | -390.1 | |
| 0.00 | 2.21 | 0.00 | 1.27 | -14.49 | 247.08 | 21.67 | 225.10 | 0.5066 | -561.0 | -429.5 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -15.08 | 247.11 | 21.69 | 224.31 | 0.5130 | -840.0 | -656.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -15.23 | 246.99 | 21.58 | 223.94 | 0.5134 | -855.0 | -723.1 | |
| 0.44 | 10.15 | 0.26 | 5.89 | -16.11 | 247.06 | 21.64 | 222.82 | 0.5234 | -674.6 | -642.8 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -15.03 | 246.91 | 21.49 | 224.10 | 0.5104 | -795.0 | -689.1 | |
| 0.00 | 3.35 | 0.00 | 1.93 | -15.45 | 246.88 | 21.47 | 223.49 | 0.5146 | -733.0 | -690.2 | |
| 1.15 | 4.15 | 0.67 | 2.42 | -16.69 | 246.96 | 21.54 | 221.91 | 0.5286 | -757.1 | -617.8 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -14.70 | 246.74 | 21.32 | 224.35 | 0.5052 | -616.0 | -511.0 | |
| 0.00 | 2.47 | 0.00 | 1.41 | -14.41 | 246.71 | 21.29 | 224.72 | 0.5018 | -620.0 | -629.1 | |
| 0.00 | 1.94 | 0.00 | 1.13 | -17.12 | 246.94 | 21.52 | 221.33 | 0.5330 | -612.0 | -452.0 | |
| 1.59 | -52.00 | 0.92 | -52.00 | -16.33 | 246.81 | 21.40 | 222.20 | 0.5232 | -871.1 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.38 | -15.93 | 246.77 | 21.35 | 222.67 | 0.5186 | -917.0 | -838.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -15.35 | 246.67 | 21.25 | 223.35 | 0.5113 | -714.0 | -522.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -15.96 | 246.60 | 21.19 | 222.42 | 0.5172 | -890.0 | -602.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -14.62 | 246.43 | 21.01 | 224.04 | 0.5011 | -675.0 | -604.7 | |
| 2.82 | 8.74 | 1.64 | 5.08 | -16.81 | 246.57 | 21.15 | 221.24 | 0.5260 | -845.6 | -785.3 | |
| 0.00 | 1.59 | 0.00 | 0.93 | -17.14 | 246.60 | 21.19 | 220.87 | 0.5299 | -733.0 | -647.2 | |
| 0.00 | 1.68 | 0.00 | 0.98 | -17.30 | 246.59 | 21.17 | 220.64 | 0.5316 | -577.0 | -459.2 | |
| 1.50 | -64.00 | 0.87 | -64.00 | -16.57 | 246.47 | 21.05 | 221.42 | 0.5225 | -995.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -14.16 | 246.19 | 20.77 | 224.37 | 0.4936 | -607.0 | -478.9 | |
| 2.74 | 38.12 | 1.56 | 21.78 | -14.96 | 245.97 | 20.55 | 222.93 | 0.4999 | -858.0 | -694.5 | |
| 8.47 | -69.00 | 4.83 | -69.00 | -15.10 | 245.65 | 20.23 | 222.28 | 0.4982 | -1105.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -14.75 | 245.61 | 20.20 | 222.73 | 0.4940 | -876.0 | -716.3 | |
| 13.06 | -69.00 | 7.47 | -69.00 | -15.49 | 245.65 | 20.24 | 221.75 | 0.5026 | -918.5 | 999999 | |
| 3.35 | 15.88 | 1.89 | 8.95 | -14.13 | 244.86 | 19.45 | 222.53 | 0.4795 | -510.0 | -142.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -17.00 | 244.94 | 19.53 | 218.77 | 0.5126 | -811.0 | -653.7 | |
| 1.32 | -73.00 | 0.74 | -73.00 | -14.12 | 244.60 | 19.18 | 222.16 | 0.4767 | -994.7 | 999999 | |
| 5.82 | 14.65 | 3.26 | 8.19 | -13.51 | 244.42 | 19.00 | 222.79 | 0.4679 | -945.8 | -483.2 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -15.18 | 244.40 | 18.98 | 220.37 | 0.4866 | 601.0 | 495.1 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -14.71 | 244.09 | 18.68 | 220.56 | 0.4782 | 691.0 | 551.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
